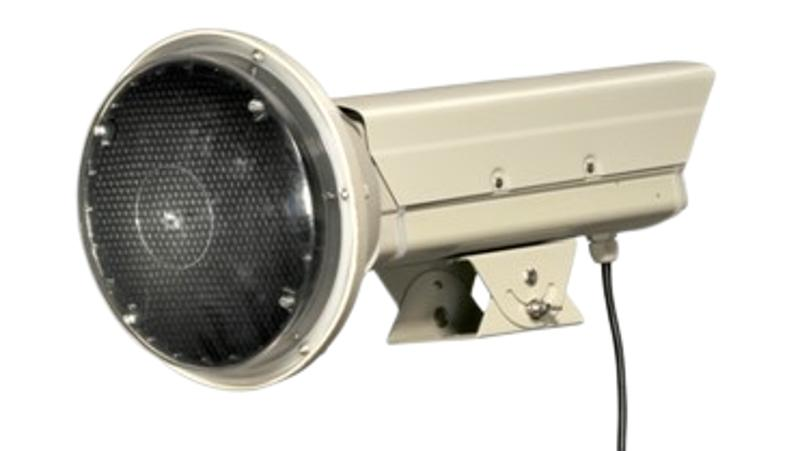

IR Xenon Flash Supplement Light

  • High level of consistency between each flash brightness;
  • Support continuous flash for 800 us, the brightness difference between each flash no more than 10 %(the flash number within 500ms shall not exceed the threshold of false trigger, the default number is 3)
  • Support TTL level trigger manner (5v level, low level trigger) and switch trigger.
  • Support brightness level switching function (Reduce light pollution and extend service life by switching supplement light to low level brightness flash model automatically by brightness control)
  • Support false triggering signal shielding function
  • Use with GMOS lens (TCV, TCE) to see the inside of the car (face, seat belt, phone call).

Specification
  • Supplement Light
  • Power Supply100 to 230 VAC
  • Wave Length≥ 850 nm (Infrared)
  • Effective Distance 18 to 25 m
  • IR Light Transmittance60% to 70%
  • CoverageSingle lane
  • Flash EnergyMax. 200 J
  • Operating Temperature -25 °C to 70 °C (-13 to 158 °F)
  • Operating Humidity 20% to 90%, no condensation
  • Trigger Manner TTL level and switch trigger
  • Service Life≥ 10 million times
  • Synchro Speed<1/1000 s
  • Time of Duration 800 us
  • Response time Max. 65 ms
  • Rated Current of Fuse<3.0 A
  • Other FunctionsStrobe interval protection
  • Ingress Protection IP65
  • Dimension (W × H × D)520 × 242 × 236 mm (20.5 × 9.5 × 9.3 inch)
  • 4.5 kg (9.9 lb)
