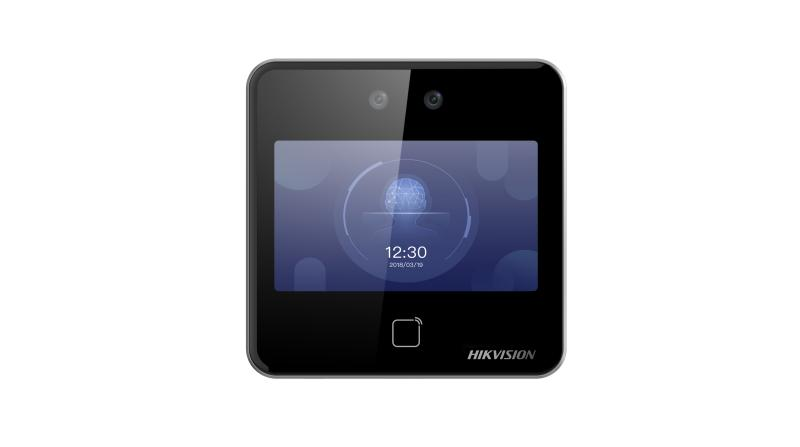

Pro Series Face Recognition Terminals

  • Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
  • Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
  • Face recognition distance: 0.3 m to 3 m
  • Max. 6000 faces capacity, Max.10,000 cards, and Max. 150,000 event capacity
  • Face recognition duration < 0.2 s/User; face recognition accuracy rate ≥ 99%
  • Two-way audio with indoor station and main station
  • Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
  • Remotely opens door and starts live view via Hik-Connect
  • Supports ISAPI and ISUP5.0 protocol
  • Configuration via the web client
View Less
View more

Available models:

DS-K1T642E

Specification

  • Display
  • Screen size4.3 inch
  • Operation methodCapacitive touch screen
  • TypeIPS
  • Video
  • Lens2
  • Resolution2 MP
  • FOVHFOV = 41.5°; VFOV = 75.5°; DFOV =87°
  • Audio
  • Audio qualityNoise suppression and echo cancellation
  • Network
  • Wired networkSupport
  • Interface
  • Network interface1 RJ-45, 10/100/1000 M self-adaptive
  • Lock control1
  • Exit button1
  • Door contact input1
  • TAMPER1
  • RS-4851 RS-485 (Half duplex, HIKVISION)
  • Wiegand1 Wiegand(Hik 26bit,Hik 34bit)
  • USB1
  • Authentication
  • Card typeEM card
  • Card reading frequency125 KHz
  • General
  • Power supply12 VDC, 2 A (power adapter not included)
  • Power consumption≤ 10 W
  • Working temperature-10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity0 to 90% (No condensing)
  • Dimensions118 mm × 118 mm × 20 mm (4.6'' × 4.6'' × 0.7'')
  • InstallationSurface, optional base stand
  • Weight0.5 kg (1.1 lb)
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
  • PlatformHik-ProConnect and HikCentral Professional
  • Function
  • QR code recognitionSupport
  • Face anti-spoofingSupport

Specification

Specification
Display
  • Screen size4.3 inch
  • Operation methodCapacitive touch screen
  • TypeIPS
Video
  • Lens2
  • Resolution2 MP
  • FOVHFOV = 41.5°; VFOV = 75.5°; DFOV =87°
Audio
  • Audio qualityNoise suppression and echo cancellation
Network
  • Wired networkSupport
Interface
  • Network interface1 RJ-45, 10/100/1000 M self-adaptive
  • Lock control1
  • Exit button1
  • Door contact input1
  • TAMPER1
  • RS-4851 RS-485 (Half duplex, HIKVISION)
  • Wiegand1 Wiegand(Hik 26bit,Hik 34bit)
  • USB1
Authentication
  • Card typeEM card
  • Card reading frequency125 KHz
General
  • Power supply12 VDC, 2 A (power adapter not included)
  • Power consumption≤ 10 W
  • Working temperature-10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity0 to 90% (No condensing)
  • Dimensions118 mm × 118 mm × 20 mm (4.6'' × 4.6'' × 0.7'')
  • InstallationSurface, optional base stand
  • Weight0.5 kg (1.1 lb)
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
  • PlatformHik-ProConnect and HikCentral Professional
Function
  • QR code recognitionSupport
  • Face anti-spoofingSupport
For better user experience, we highly recommend you to update your device to the latest firmware asap.
