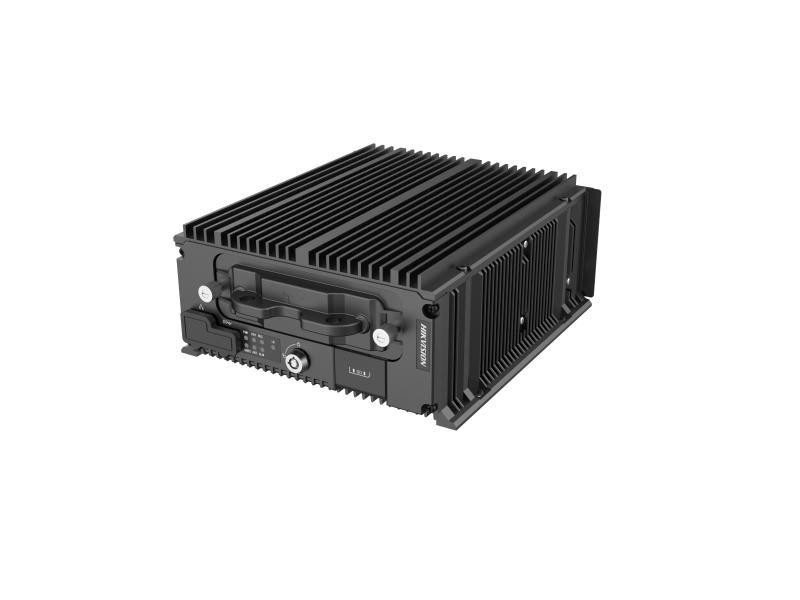

AE-MH0804

4-ch IP cameras connectable via PoE interfaces, 8-channel analog HD camera access.
Up to 2MP resolution of H.264/H.265 compression for each IP camera.
Pluggable 2 × 2.5 inch HDD/SSD, SSD up to 4 TB,HDD up to 2TB
User-friendly GUI providing easy and flexible operations.
Pluggable 4G module and Wi-Fi module providing flexible data transmission solutions.
Built-in GPS module precisely positioning the vehicle via the satellite and recording the location information in the video stream.
Information collection interfaces collecting driving information such as left/right turn, braking, reversing, etc.
Specialized aviation connectors ensuring signal stability.
Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.
Build-in super-capacitor prevents the mobile DVR from damage caused by sudden power outage.
Wide-range power input (+9 VDC to +36; VDC).
Power-off protection prevents key data loss.
Aluminum die-cast chassis with no fan design well adaptable to working environment.
Software-based firewall supported.
Support accessing via WEB browser.
Support recording backup on redundant HDD/SSD.
Up to 4 AI features can be run at the same time: ADAS, DSM, DI, and BSD-R

View Less

Available models:

AE-MH0804(1T/SSD)(M12)

AE-MH0804(M12)

Specification
Resources
Accessories

Video/Audio Input
Analog Camera8-ch HIK wiring sequence analog camera, Max. 1080P
IP Camera4-ch connected via PoE interfaces
Two-way Audio1, integrated in EXT.DEV interface

Video/Audio Output
Audio Output1, integrated in EXT.DEV interface
Video OutputMain output: 1, integrated in EXT.DEV interface Aux output：1，4-pin aviation connector VGA: 1

Encoding/Decoding Parameters
Video CompressionH.265,H.264
Audio CompressionG.711a/G.711u/G.722.1/G.726
Audio Bit Rate16 Kbps to 64Kbps
Stream TypeVideo, video & audio
Dual StreamSupported
Frame RatePAL: 1 to 25 fps; NTSC: 1 to 30 fps
Encoding ResolutionMain stream: 1080P/720P/WD1/4CIF Sub-stream: 720P/WD1/4CIF/2CIF/CIF

Wireless Network
Dial-up1 × 4G card slot, 1 ×FAKRA antenna 5G module(optional)

Storage
SD Card Storage1 × SD card, up to 512 GB（not for baseline. Note the SD card capacity when ordering）
HDD/SDD2 × 2.5 inch HDD/SSD, SSD up to 4 TB,HDD up to 2TB HDD/SSD data can be exported locally via this converter (optional) Hard Disk Case with heating function (optional)

Auxiliary Interface
Wi-FiWI2.4G model: 1 × 2.4 G Wi-Fi SMA antenna, WI5.8G model: 2 × 5.8 G Wi-Fi SMA antenna (Optional. 802.11B/G/N and 802.11AC are selectable. 1 antenna is needed for 802.11B/G/N module. 2 antennas are needed for 802.11AC module.)
Network InterfaceFront panel :1 ×10M/100M RJ45 Rear panel: 1 × 10M/100M/1000M RJ45
Serial Port3 × RS-232(harness is optional). 2 × RS-485. 1 × RS-485 (integrated in EXT.DEV interface)
USB InterfaceFront panel: 1 × USB 3.0 Rear panel: 1 × USB 2.0 (5-pin aviation connector)
Sensor-in4 high/low level signal inputs
Alarm Input4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input
Alarm Output2 relay signal outputs
CAN Interface2

Positioning
GNSS (Global Navigation Satellite System)GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 ×FAKRA antenna

Sensor
G-SensorBuilt-in

Smart Function
Advanced Driving Assistance System (ADAS)Supports detection and alerts for FCW/LDW/SLW/HMW/PCW/TSR
Driving Status Monitoring (DSM)Supports detection and alerts for distraction/fatigue/calling/smoking/unfastened seat belt/yawning/absence from post/IR-blocking sunglasses/occlusion, with switchable A-pillar algorithm and formal attire algorithm
Blind Spot Detection (Right)Supports right blind spot detection and alerts
Driver IdentificationSupports driver modeling, driver detection & comparison, driver change alerts, abnormal identity detection & reporting, and attendance tracking

General
Power Supply+9 to +36 VDC
Power ConsumptionStandby: ≤ 0.5 W Full load: ≤ 90 W Note: Without peripheral and storage media ≤ 20 W
Operating Temperature-25 °C to +70 °C (-13 °F to +158°F)
Operating Humidity10% to 95% (non-condensing)
Operation MethodMouse, IR remote control, Web control, and display screen
Product Dimension202 × 267.6 × 93.9 mm (7.95 × 10.54 × 3.7 inch)
Weight (Without Storage Media)3.31 kg (7.3 lb)

Video/Audio Input

Analog Camera

8-ch HIK wiring sequence analog camera, Max. 1080P

IP Camera

4-ch connected via PoE interfaces

Two-way Audio

1, integrated in EXT.DEV interface

Video/Audio Output

Audio Output

1, integrated in EXT.DEV interface

Video Output

Main output: 1, integrated in EXT.DEV interface Aux output：1，4-pin aviation connector VGA: 1

Encoding/Decoding Parameters

Video Compression

H.265,H.264

Audio Compression

G.711a/G.711u/G.722.1/G.726

Audio Bit Rate

16 Kbps to 64Kbps

Stream Type

Video, video & audio

Dual Stream

Supported

Frame Rate

PAL: 1 to 25 fps; NTSC: 1 to 30 fps

Encoding Resolution

Main stream: 1080P/720P/WD1/4CIF Sub-stream: 720P/WD1/4CIF/2CIF/CIF

Wireless Network

Dial-up

1 × 4G card slot, 1 ×FAKRA antenna 5G module(optional)

Storage

SD Card Storage

1 × SD card, up to 512 GB（not for baseline. Note the SD card capacity when ordering）

HDD/SDD

2 × 2.5 inch HDD/SSD, SSD up to 4 TB,HDD up to 2TB HDD/SSD data can be exported locally via this converter (optional) Hard Disk Case with heating function (optional)

Auxiliary Interface

Wi-Fi

WI2.4G model: 1 × 2.4 G Wi-Fi SMA antenna, WI5.8G model: 2 × 5.8 G Wi-Fi SMA antenna (Optional. 802.11B/G/N and 802.11AC are selectable. 1 antenna is needed for 802.11B/G/N module. 2 antennas are needed for 802.11AC module.)

Network Interface

Front panel :1 ×10M/100M RJ45 Rear panel: 1 × 10M/100M/1000M RJ45

Serial Port

3 × RS-232(harness is optional). 2 × RS-485. 1 × RS-485 (integrated in EXT.DEV interface)

USB Interface

Front panel: 1 × USB 3.0 Rear panel: 1 × USB 2.0 (5-pin aviation connector)

Sensor-in

4 high/low level signal inputs

Alarm Input

4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input

Alarm Output

2 relay signal outputs

CAN Interface

Positioning

GNSS (Global Navigation Satellite System)

GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 ×FAKRA antenna

Sensor

G-Sensor

Built-in

Smart Function

Advanced Driving Assistance System (ADAS)

Supports detection and alerts for FCW/LDW/SLW/HMW/PCW/TSR

Driving Status Monitoring (DSM)

Supports detection and alerts for distraction/fatigue/calling/smoking/unfastened seat belt/yawning/absence from post/IR-blocking sunglasses/occlusion, with switchable A-pillar algorithm and formal attire algorithm

Blind Spot Detection (Right)

Supports right blind spot detection and alerts

Driver Identification

Supports driver modeling, driver detection & comparison, driver change alerts, abnormal identity detection & reporting, and attendance tracking

General

Power Supply

+9 to +36 VDC

Power Consumption

Standby: ≤ 0.5 W Full load: ≤ 90 W Note: Without peripheral and storage media ≤ 20 W

Operating Temperature

-25 °C to +70 °C (-13 °F to +158°F)

Operating Humidity

10% to 95% (non-condensing)

Operation Method

Mouse, IR remote control, Web control, and display screen

Product Dimension

202 × 267.6 × 93.9 mm (7.95 × 10.54 × 3.7 inch)

Weight (Without Storage Media)

3.31 kg (7.3 lb)
