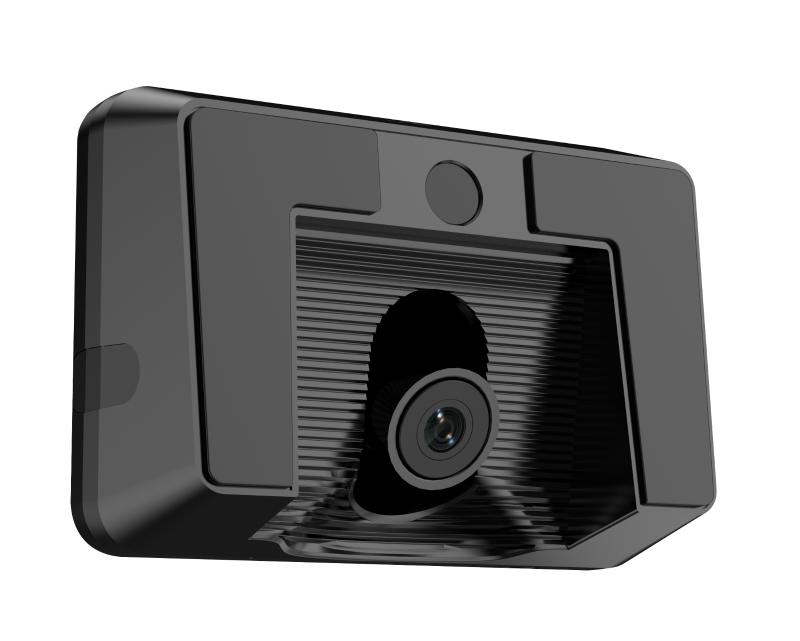

AE-VC255T

  • 2MP progressive scan CMOS
  • Up to 1080P resolution
  • Min. Illumination 0.1 lux @ (F1.2, AGC ON)
  • Supports auto electronic shutter
  • Supports auto gain control
  • Adopts shock-proof design and aviation plug
View Less
View more
Data Sheet
Sales Inquiry

Available models:

AE-VC255T(6mm)(Upper outlet)(C)
AE-VC255T
Data Sheet

Specification

  • Camera
  • Max. Resolution1920*1080
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Shutter Speed1/30 s to 1/22,500 s
  • Wide Dynamic Range96 dB
  • Angle AdjustmentTilt: 15 degree up/ 45 degree down
  • Lens
  • Fixed ApertureF2.0
  • Lens Type6mm： Horizontal: 61° vertical: 33°, diagonal: 71°
  • Video
  • Frame RateCompatible with 1080P@25fps/30fps, default 30fps
  • Image
  • SNR42 dB
  • General
  • Product Weight153.6 g (0.3 lb.)±5%
  • Power SupplyDC 9~16 V
  • Power ConsumptionMAX. 1W
  • Camera Dimension89.5±0.3mm*63.4±0.3mm*39.8±0.5mm
  • Storage ConditionsStorage Temp: -40~85℃ Humidity: 45%-95%
  • Startup and Operating ConditionsWorking Temp: -40~75℃
  • Cable Length2.5 m（Support upper and lower outlet）
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Max. Resolution
1920*1080
Image Sensor
1/2.8" Progressive Scan CMOS
Shutter Speed
1/30 s to 1/22,500 s
Wide Dynamic Range
96 dB
Angle Adjustment
Tilt: 15 degree up/ 45 degree down
Lens
Fixed Aperture
F2.0
Lens Type
6mm： Horizontal: 61° vertical: 33°, diagonal: 71°
Video
Frame Rate
Compatible with 1080P@25fps/30fps, default 30fps
SNR
42 dB
General
Product Weight
153.6 g (0.3 lb.)±5%
Power Supply
DC 9~16 V
Power Consumption
MAX. 1W
Camera Dimension
89.5±0.3mm*63.4±0.3mm*39.8±0.5mm
Storage Conditions
Storage Temp: -40~85℃ Humidity: 45%-95%
Startup and Operating Conditions
Working Temp: -40~75℃
Cable Length
2.5 m（Support upper and lower outlet）
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Max. Resolution1920*1080
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Shutter Speed1/30 s to 1/22,500 s
  • Wide Dynamic Range96 dB
  • Angle AdjustmentTilt: 15 degree up/ 45 degree down
Lens
  • Fixed ApertureF2.0
  • Lens Type6mm： Horizontal: 61° vertical: 33°, diagonal: 71°
Video
  • Frame RateCompatible with 1080P@25fps/30fps, default 30fps
  • SNR42 dB
General
  • Product Weight153.6 g (0.3 lb.)±5%
  • Power SupplyDC 9~16 V
  • Power ConsumptionMAX. 1W
  • Camera Dimension89.5±0.3mm*63.4±0.3mm*39.8±0.5mm
  • Storage ConditionsStorage Temp: -40~85℃ Humidity: 45%-95%
  • Startup and Operating ConditionsWorking Temp: -40~75℃
  • Cable Length2.5 m（Support upper and lower outlet）
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
