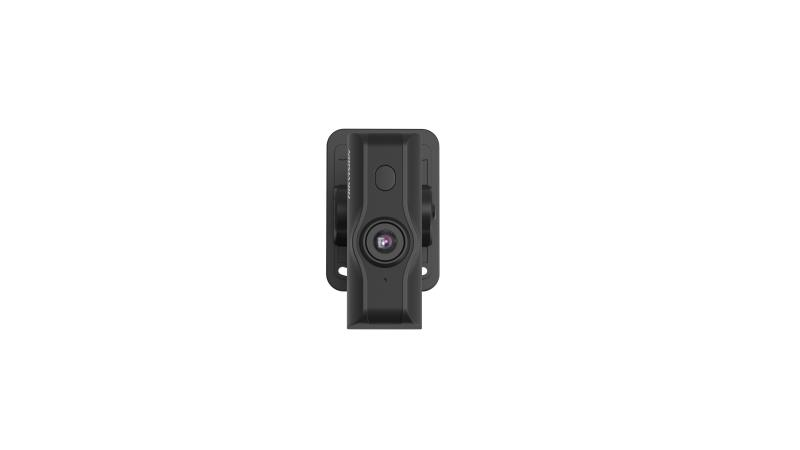

AE-VC2521T-ITS

  • 2MP progressive scan CMOS
  • Supports clear image output with resolution up to 1080P
  • Supports electric shutter
  • Supports auto gain control
  • Supports aviation plug
View Less
View more
Sales Inquiry

Available models:

AE-VC2521T-ITS(6mm)
AE-VC2521T-ITS

Specification

  • Camera
  • Min. Illumination0 lux with IR
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Resolution1920x1080
  • Shutter Speed1/25 s to 1/30, 000 s
  • Day & NightIR: normally open; Picture: normally B&W
  • Angle AdjustmentLens cone adjustment, up -72°, down 36°，Left -63°，right 63°
  • Lens
  • Lens MountM12
  • Focal Length & FOV6mm: horizontal: 52°(±3°), vertical: 29°(±3°), diagonal: 61°(±3°) 4mm: horizontal: 87°(±3°), vertical: 44°(±3°), diagonal:104°(±3°)
  • Illuminator
  • IR Wavelength940 nm
  • Supplement Light Range2 m
  • Video
  • Frame RateDefault 1080P@30fps, 1080P@25fps customizable
  • Audio
  • Built-in MicSupported
  • Built-in SpeakerNot supported
  • Image
  • SNR42 dB
  • Interface
  • Video Output1-way coaxial HD, conforming to HDTVI
  • Interface Style1 Vpp Composite Output (aviation plug) B pin sequence: 1: video, 2: audio, 3: power, 4: ground
  • General
  • Product Weight128g±5%
  • ProtectionIP5X
  • Power SupplyDC 9 to 16 V
  • Power ConsumptionMax 2 W
  • Camera Dimension84 mm × 45 mm × 74.2mm, tolerance ±1 mm
  • Startup and Operating Conditions-40 °C to +75 °C (-40 °F to +167 °F), 90% or less (non-condensing)
  • Cable Length2500 mm±50
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Min. Illumination
0 lux with IR
Image Sensor
1/2.8" Progressive Scan CMOS
Resolution
1920x1080
Shutter Speed
1/25 s to 1/30, 000 s
Day & Night
IR: normally open; Picture: normally B&W
Angle Adjustment
Lens cone adjustment, up -72°, down 36°，Left -63°，right 63°
Lens
Lens Mount
M12
Focal Length & FOV
6mm: horizontal: 52°(±3°), vertical: 29°(±3°), diagonal: 61°(±3°) 4mm: horizontal: 87°(±3°), vertical: 44°(±3°), diagonal:104°(±3°)
Illuminator
IR Wavelength
940 nm
Supplement Light Range
2 m
Video
Frame Rate
Default 1080P@30fps, 1080P@25fps customizable
Audio
Built-in Mic
Supported
Built-in Speaker
Not supported
SNR
42 dB
Interface
Video Output
1-way coaxial HD, conforming to HDTVI
Interface Style
1 Vpp Composite Output (aviation plug) B pin sequence: 1: video, 2: audio, 3: power, 4: ground
General
Product Weight
128g±5%
Protection
IP5X
Power Supply
DC 9 to 16 V
Power Consumption
Max 2 W
Camera Dimension
84 mm × 45 mm × 74.2mm, tolerance ±1 mm
Startup and Operating Conditions
-40 °C to +75 °C (-40 °F to +167 °F), 90% or less (non-condensing)
Cable Length
2500 mm±50
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Min. Illumination0 lux with IR
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Resolution1920x1080
  • Shutter Speed1/25 s to 1/30, 000 s
  • Day & NightIR: normally open; Picture: normally B&W
  • Angle AdjustmentLens cone adjustment, up -72°, down 36°，Left -63°，right 63°
Lens
  • Lens MountM12
  • Focal Length & FOV6mm: horizontal: 52°(±3°), vertical: 29°(±3°), diagonal: 61°(±3°) 4mm: horizontal: 87°(±3°), vertical: 44°(±3°), diagonal:104°(±3°)
Illuminator
  • IR Wavelength940 nm
  • Supplement Light Range2 m
Video
  • Frame RateDefault 1080P@30fps, 1080P@25fps customizable
Audio
  • Built-in MicSupported
  • Built-in SpeakerNot supported
  • SNR42 dB
Interface
  • Video Output1-way coaxial HD, conforming to HDTVI
  • Interface Style1 Vpp Composite Output (aviation plug) B pin sequence: 1: video, 2: audio, 3: power, 4: ground
General
  • Product Weight128g±5%
  • ProtectionIP5X
  • Power SupplyDC 9 to 16 V
  • Power ConsumptionMax 2 W
  • Camera Dimension84 mm × 45 mm × 74.2mm, tolerance ±1 mm
  • Startup and Operating Conditions-40 °C to +75 °C (-40 °F to +167 °F), 90% or less (non-condensing)
  • Cable Length2500 mm±50
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
