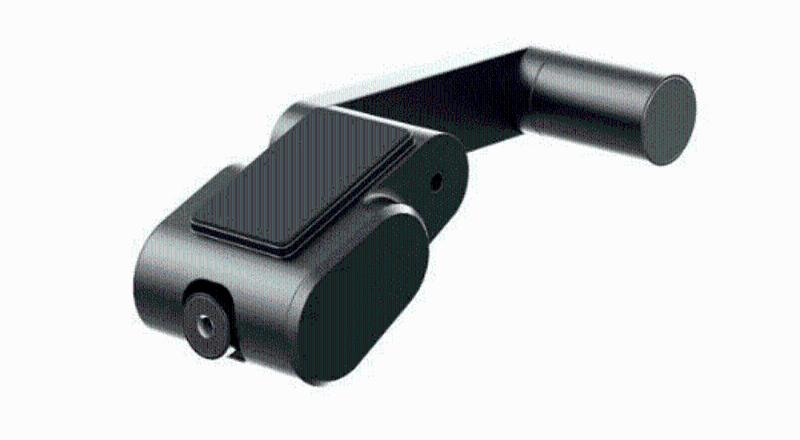

720P 1/2.9”CMOS infrared array front and rear binocular analog camera

  • Progressive scan CMOS
  • Up to 720P resolution
  • Low illumination, 0.1 lux @ (F1.2, AGC ON), 0 lux with IR
  • Day & night switch supports auto electronic (inside view) and fix on color (outside view)
  • Supports auto white balance
View Less
View more
Sales Inquiry

Available models:

AE-VC163T-ITS(2.1+2.1mm)
AE-VC163T-ITS

Specification

  • Camera
  • Shutter Speed1/25 s to 1/30,000 s
  • P/NP (Default format is PAL and support switching to NTSC)
  • Wide Dynamic RangeNA
  • Day & NightInside vehicle view: Electronic Day to Night Outside vehicle view: Fix on Color
  • Lens
  • Lens MountM12
  • Video
  • Frame Rate720P@25 fps
  • Image
  • SNR42 dB
  • Interface
  • Video OutputTVI
  • Built-in MicrophoneYes
  • Built-in SpeakerNo
  • AudioYes
  • Interface Style1 Vpp Composite Output (aviation plug) Aviation plug：1: video, 2: Audio, 3: power, 4: ground
  • Supplement Light Unit
  • Power Supply9 to 16 V DC
  • Power ConsumptionFront: 1.5W MAX Rear: 2 W MAX
  • General
  • Camera MaterialPlastic
  • Camera Dimension171mm × 77.29 mm × 68.07mm
  • Startup and Operating Conditions-40 °C to 75 °C (-40 °F to 167 °F), 90%
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Shutter Speed
1/25 s to 1/30,000 s
P/N
P (Default format is PAL and support switching to NTSC)
Wide Dynamic Range
NA
Day & Night
Inside vehicle view: Electronic Day to Night Outside vehicle view: Fix on Color
Lens
Lens Mount
M12
Video
Frame Rate
720P@25 fps
SNR
42 dB
Interface
Video Output
TVI
Built-in Microphone
Yes
Built-in Speaker
No
Audio
Yes
Interface Style
1 Vpp Composite Output (aviation plug) Aviation plug：1: video, 2: Audio, 3: power, 4: ground
Supplement Light Unit
Power Supply
9 to 16 V DC
Power Consumption
Front: 1.5W MAX Rear: 2 W MAX
General
Camera Material
Plastic
Camera Dimension
171mm × 77.29 mm × 68.07mm
Startup and Operating Conditions
-40 °C to 75 °C (-40 °F to 167 °F), 90%
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Shutter Speed1/25 s to 1/30,000 s
  • P/NP (Default format is PAL and support switching to NTSC)
  • Wide Dynamic RangeNA
  • Day & NightInside vehicle view: Electronic Day to Night Outside vehicle view: Fix on Color
Lens
  • Lens MountM12
Video
  • Frame Rate720P@25 fps
  • SNR42 dB
Interface
  • Video OutputTVI
  • Built-in MicrophoneYes
  • Built-in SpeakerNo
  • AudioYes
  • Interface Style1 Vpp Composite Output (aviation plug) Aviation plug：1: video, 2: Audio, 3: power, 4: ground
Supplement Light Unit
  • Power Supply9 to 16 V DC
  • Power ConsumptionFront: 1.5W MAX Rear: 2 W MAX
General
  • Camera MaterialPlastic
  • Camera Dimension171mm × 77.29 mm × 68.07mm
  • Startup and Operating Conditions-40 °C to 75 °C (-40 °F to 167 °F), 90%
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
