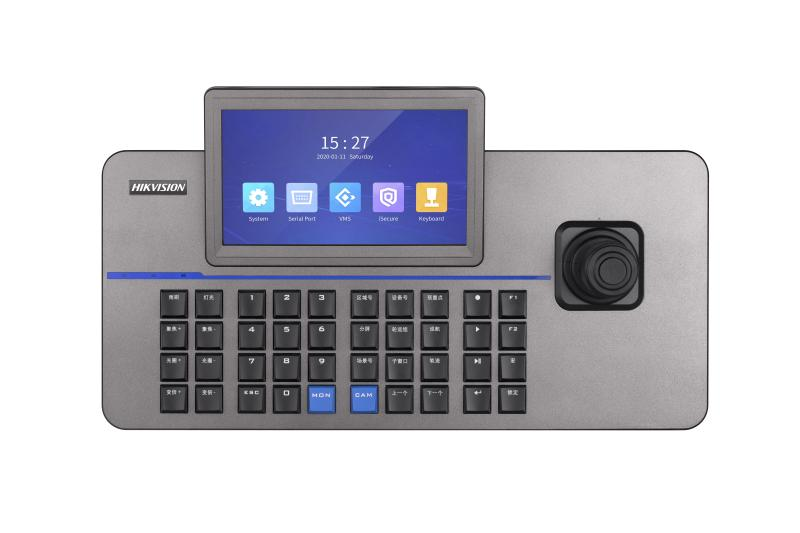

Network Keyboard

7-inch LCD touch screen with 1024 × 600 resolution
Optical axis mechanical buttons
Displays the output of multi-functional video centers (MVCs) and decoders on video wall
Supports video wall division by areas
Supports PTZ control, settings and calling of presets and patrols
Supports the preview of 4-ch network cameras with a resolution of 1080p or lower on the touch screen
Supports remote video playback via the keyboard or video wall
Supports playing the video playback fast and slow, pausing and stopping the video playback
Supports capturing the pictures and saving the videos to the USB flash drive or FTP server connected to the keyboard
Allows 32 users (1 administrator and 31 operators) to manage a maximum of 4000 devices
Supports network access to DVRs, DVSs, NVRs, decoders, multi-functional video centers (MVCs), network cameras, network domes, iSecure and HikCentral
Supports remote control of DVR operation panels to achieve preview, recording, PTZ control, and other operations
Accessible to DVRs, NVRs, and analog domes via serial ports
Controls analog domes via RS-485 serial port

View Less

Data Sheet

Available models:

DS-1105KI(B)

DS-1105KI

Specification
Resources
Accessories

Data Sheet

Interface
USB Interface1 × USB 2.0

Power
Device Power Consumption≤ 15 W

Network
Network InterfaceRJ45 100 M/1000 M self-adaptive Ethernet interface × 1

General
Screen7 inch LCD
Control MethodNetwork method, serial control
Power Supply12 VDC
Dimensions (W × H × D)435 mm × 193 mm × 110 mm (17.13 inch × 7.60 inch × 4.33 inch) (L × W × H)
Gross Weight2 kg (4.41 lb)
Working Temperature-10℃ to 55℃(14℉ to131℉)
Working Humidity10% RH to 90% RH
Joystick4-axis single button joystick

Audio Input
Audio Input InterfaceOne-way MIC IN, supporting 48 VDC phantom power supply

Video Output
Video Output InterfacesHDMI × 1, VGA × 1

Audio Output
Audio Output Interface3.5 mm stereo (linear level, impedance 600 Ω) × 1

System
Operating System SupportedLinux system

Decoding
Decoding Performance4 × 1080p

Wireless
Wi-FiNot supported

Device Parameters
Serial InterfaceRS-232, RS-485

Interface

USB Interface

1 × USB 2.0

Power

Device Power Consumption

≤ 15 W

Network

Network Interface

RJ45 100 M/1000 M self-adaptive Ethernet interface × 1

General

Screen

7 inch LCD

Control Method

Network method, serial control

Power Supply

12 VDC

Dimensions (W × H × D)

435 mm × 193 mm × 110 mm (17.13 inch × 7.60 inch × 4.33 inch) (L × W × H)

Gross Weight

2 kg (4.41 lb)

Working Temperature

-10℃ to 55℃(14℉ to131℉)

Working Humidity

10% RH to 90% RH

Joystick

4-axis single button joystick

Audio Input

Audio Input Interface

One-way MIC IN, supporting 48 VDC phantom power supply

Video Output

Video Output Interfaces

HDMI × 1, VGA × 1

Audio Output

Audio Output Interface

3.5 mm stereo (linear level, impedance 600 Ω) × 1

System

Operating System Supported

Linux system

Decoding

Decoding Performance

4 × 1080p

Wireless

Wi-Fi

Not supported

Device Parameters

Serial Interface

RS-232, RS-485
