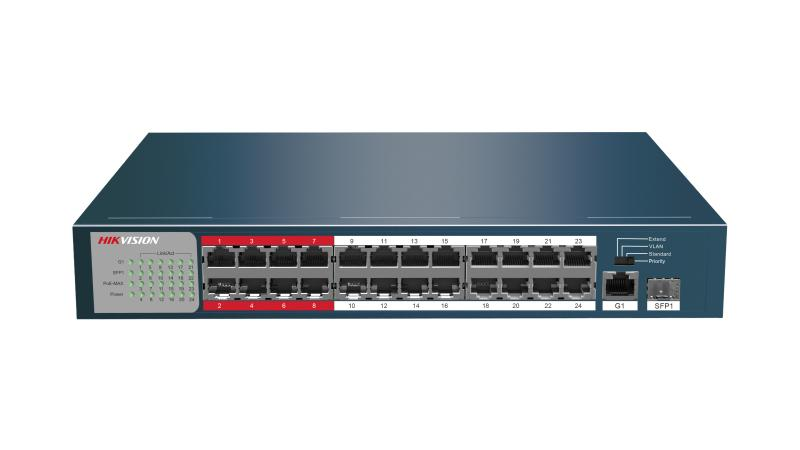

24 Port Fast Ethernet Unmanaged POE Switch

24 x 10/100 Mbps PoE ports, 1 x 10/100/1000 Mbps uplink ethernet port and 1 x 10/100/1000 Mbps uplink SFP port
IEEE 802.3 af & at high POE power supply
Maximum 250 m long distance PoE transmission
VIP port transmission priority
Safe and reliable using 6 KV high surge protection
Supports store-and-forward
Supports MAC address auto learning and auto aging
Supports smart cache optimization
Supports desktop / wall mounting.

View Less

Available models:

DS-3E0326P-E/M

DS-3E0326P-E/M(US)

DS-3E0326P-E/M

EOL

Specification
Resources
Accessories

General
Storage TemperatureStorage Temperature: -40 °C ~ 70 °C
Working TemperatureOperating Temperature: 0 °C ~ 40 °C
Working HumidityOperating Humidity: 10% - 90% RH non-condensing
Storage HumidityStorage Humidity: 5% - 90% RH non-condensing
Power Input100~240 V AC，50/60 Hz
Power Consumption≤250w

Performance
Switching Capacity8.8 Gbps
Store-and-forwardSupported
MAC Address Table4 k
MAC Address LearningAuto-learning/ Auto-aging

PoE
Working ModePriority, Standard, Isolate, Extend
PoE StandardIEEE 802.3af, IEEE802.3at
PoE Powering ModeSupports 8-pin power supply
PoE Port1-32
Maximum Total Output225 W
Maximum Port Output30 W

Port
High-priority PortPort 1 - 8
1000 Mbps SFP1 independent
10/100/1000 Mbps RJ451
10/100 Mbps RJ4524

Standard
Network StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z

Network
Transmission SpeedEthernet: 10 Mbps (Half Duplex) / 20 Mbps (Full Duplex) Fast Ethernet: 100 Mbps (Half Duplex) / 200 Mbps (Full Duplex) Gigabit Ethernet: 2000 Mbps (Full Duplex)
Transmission MediumEthernet: Cat 3 or better UTP/STP Fast Ethernet: Cat 5 or better UTP/STP Gigabit Ethernet: Cat 5 or better UTP/STP 1000 Base-SX: MMF (Multimode optical fiber) 1000 Base-LX: MMF (Multimode optical fiber) or SMF (Single Mode Fiber)
Lightning-proof Ranking4 kV

POE
PoE Powering ModeSupports 8-pin power supply
PoE Port1-32

General

Storage Temperature

Storage Temperature: -40 °C ~ 70 °C

Working Temperature

Operating Temperature: 0 °C ~ 40 °C

Working Humidity

Operating Humidity: 10% - 90% RH non-condensing

Storage Humidity

Storage Humidity: 5% - 90% RH non-condensing

Power Input

100~240 V AC，50/60 Hz

Power Consumption

≤250w

Performance

Switching Capacity

8.8 Gbps

Store-and-forward

Supported

MAC Address Table

4 k

MAC Address Learning

Auto-learning/ Auto-aging

PoE

Working Mode

Priority, Standard, Isolate, Extend

PoE Standard

IEEE 802.3af, IEEE802.3at

PoE Powering Mode

Supports 8-pin power supply

PoE Port

1-32

Maximum Total Output

225 W

Maximum Port Output

30 W

Port

High-priority Port

Port 1 - 8

1000 Mbps SFP

1 independent

10/100/1000 Mbps RJ45

10/100 Mbps RJ45

Standard

Network Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z

Network

Transmission Speed

Ethernet: 10 Mbps (Half Duplex) / 20 Mbps (Full Duplex) Fast Ethernet: 100 Mbps (Half Duplex) / 200 Mbps (Full Duplex) Gigabit Ethernet: 2000 Mbps (Full Duplex)

Transmission Medium

Ethernet: Cat 3 or better UTP/STP Fast Ethernet: Cat 5 or better UTP/STP Gigabit Ethernet: Cat 5 or better UTP/STP 1000 Base-SX: MMF (Multimode optical fiber) 1000 Base-LX: MMF (Multimode optical fiber) or SMF (Single Mode Fiber)

Lightning-proof Ranking

4 kV

POE
