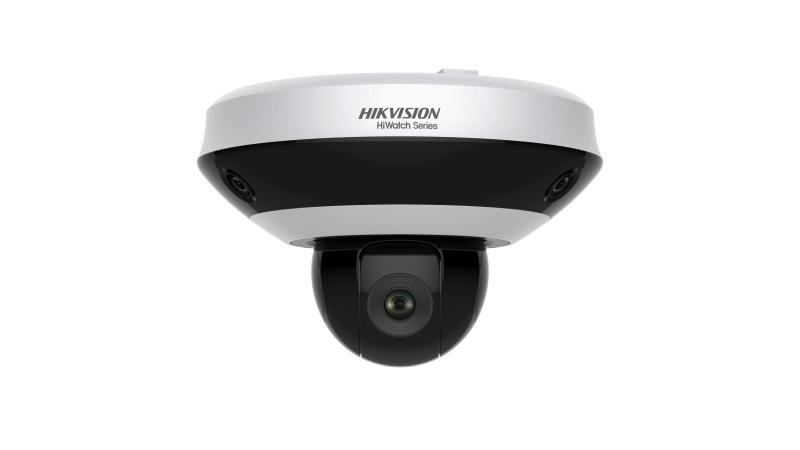

HIWATCH Mini PanoVu PTZ

Three 2 MP cameras face different directions to cover larger areas
One 2 MP camera for close-up view with 4x zoom ability
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to DWDR technology
Good night-time performance with up to 10 m IR

View Less

Data Sheet

Available models:

HWP-P332ZI-DE3

EOL

Specification
Resources
Accessories

Data Sheet

Lens
FOVHorizontal field of view: 120° to 56.6° (wide - tele),Vertical field of view: 61.8° to 31.7° (wide - tele),Diagonal field of view: 149° to 65° (wide - tele)
Focal Length2.8 mm to 12 mm, 4× optical zoom
Zoom SpeedApprox.5.4 s (optical, wide - tele)
Working Distance10 mm to 1500 mm (wide - tele)
Aperture RangeF2.0 to F2.4

Smart Features
Basic Event DetectionMotion Detection, Video Tampering Detection, Exception
Smart DetectionAudio Exception Detection, Intrusion Detection, Line Crossing Detection
Smart RecordANR (Automatic Network Replenishment)
ROIMain stream supports eight fixed areas.
Smart Image EnhancementHLC/BLC/3D DNR/Regional Exposure/Regional Focus

Network
Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
APIOpen-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
Simultaneous Live ViewUp to 4 × 4 channels
User/HostUp to 32 users,3 levels: Administrator, Operator and User
ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web BrowserIE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51

Main StreamMain stream:,50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Interface
Audio Input1-ch audio input
Audio Output1-ch audio output
Network Interface1 RJ45 10 M/100 M Ethernet
Dual-VCASupport

Camera Module
Image Sensor1/2.8" progressive scan CMOS
Min. IlluminationColor: 0.05 Lux @(F2.0, AGC ON),B/W: 0.01 Lux @(F2.0, AGC ON),0 Lux with IR
White BalanceAuto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
GainAuto/Manual
Shutter Time50 Hz: 1/25 s to 1/30,000 s,60 Hz: 1/30 s to 1/30,000 s
Day & NightIR Cut Filter
Digital Zoom8×
Privacy Mask8 programmable privacy masks
Focus ModeSemi-automatic/Manual
WDRDigital WDR

General
MaterialPC + ABS & Aluminum alloy
DimensionsΦ 183 mm × 133 mm (Φ 7.20" × 5.24")
WeightApprox. 0.9 kg (1.98 lb)
Protection LevelTVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
Power12 VDC, 2.0 A & PoE (802.3 at), 42.5 to 57 VDC, 0.6 A, class 4 Max.24 W (Max. 6 W for IR)
Working Temperature-10°C to 50°C (14°F to 122°F)
Working Humidity≤ 90%

Supplement Light
IR DistanceUp to 10 m IR (radius)

PTZ
Movement Range (Pan)Pan: 0° to 350°
Pan SpeedPan speed: 0.1°/s to 30°/s (configurable), preset speed: 30°/s
Movement Range (Tilt) Tilt: 0° to 90°
Tilt Speed,Tilt speed: 0.1°/s to 30°/s (configurable), preset speed: 30°/s
Proportional ZoomSupport
Presets300
Power-off MemorySupport
PTZ Status DisplaySupport
Preset FreezingSupport
Scheduled TaskPreset/Dome Reboot/Dome Adjust
PTZ LinkageSupport

Compression Standard
Video CompressionMain stream: H.265/H.264/MJPEG,H.264: Main Profile/High Profile
Video Bitrate32 Kbps to 8192 Kbps
Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2
Audio BitrateG.711alaw/G.711ulaw: 64 Kbps,G.722.1/G.726: 16 Kbps,MP212: 32 Kbps/64 Kbps/128 Kbps
SVCSupport
