EOL

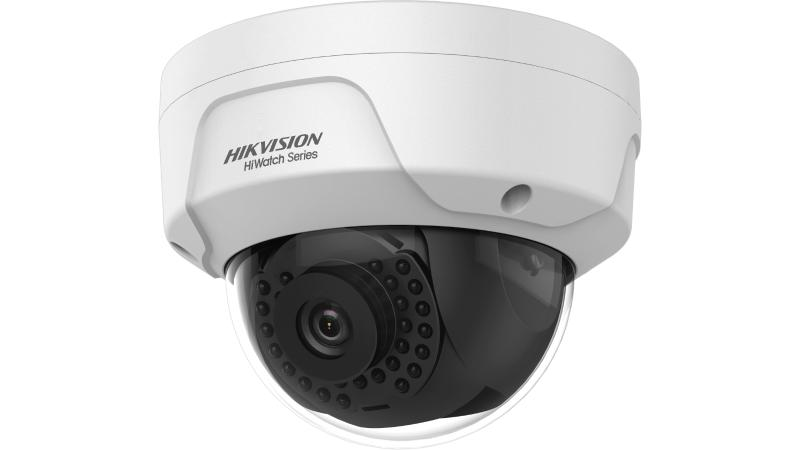

2 MP Fixed Dome Network Camera

  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology to save bandwidth and storage
  • Clear imaging against strong back light due to DWDR technology
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Easy installation with Power over Ethernet (PoE) technology
View Less
View more
Sales Inquiry

Available models:

HWI-D120H(2.8mm)(HiWatchSTD)
HWI-D120H(-M)
EOL

Specification

  • Camera
  • Image Sensor1/2.8" progressive scan CMOS
  • Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
  • Shutter Speed1/3 s to 1/100, 000 s
  • Slow ShutterYes
  • Wide Dynamic RangeDWDR
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°
  • DNR3D DNR
  • Day & NightIR cut filter
  • Auto-IrisNo
  • Lens
  • ApertureF2.0
  • FocusFixed
  • FOV2.8 mm, horizontal FOV 114°, vertical FOV 62°, diagonal FOV 135°,4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°,
  • Lens MountM12
  • Focal Length2.8 mm, 4 mm
  • Network
  • Alarm TriggerMotion detection, video tampering alarm, illegal login
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users,3 levels: Administrator, Operator, and User,
  • ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
  • Image
  • Image EnhancementBLC, 3D DNR
  • Image SettingSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Day/Night SwitchAuto, scheduled, day, night
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),
  • Sub stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240),
  • IR
  • IR RangeUp to 30 m
  • Wavelength850 nm
  • Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • General
  • Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug ,PoE (802.3af, class 3)
  • Power Consumption and Current12 VDC, 0.4 A, Max: 5 W,PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W,
  • MaterialWithout –M model:,Bubble: plastic, front cover: plastic, bottom base: metal,–M model:,Bubble: plastic, front cover: metal, bottom base: metal,
  • DimensionsCamera: Ø 111 mm × 82.4 mm (Ø 4.4" × 3.2"),With package: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3"),
  • WeightWithout –M model:,Camera: Approx. 410 g (0.9 lb.),With package: Approx. 610 g (1.3 lb.),–M model:,Camera: Approx. 453 g (1 lb.),With package: Approx. 662 g (1.5 lb.),
  • Protection LevelIP67, IK10
  • Operating Condition-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
  • Compression Standard
  • H.264+Main stream supports
  • H.265+Main stream supports
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 8 Mbps
  • Smart Feature-set
  • Region of Interest1 fixed region for main stream and sub-stream
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/2.8" progressive scan CMOS
Min. Illumination
Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
Shutter Speed
1/3 s to 1/100, 000 s
Slow Shutter
Yes
Wide Dynamic Range
DWDR
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75°
DNR
3D DNR
Day & Night
IR cut filter
Auto-Iris
No
Lens
Aperture
F2.0
Focus
Fixed
FOV
2.8 mm, horizontal FOV 114°, vertical FOV 62°, diagonal FOV 135°,4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°,
Lens Mount
M12
Focal Length
2.8 mm, 4 mm
Network
Alarm Trigger
Motion detection, video tampering alarm, illegal login
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
API
ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users,3 levels: Administrator, Operator, and User,
Client
iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser
IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Image Enhancement
BLC, 3D DNR
Image Setting
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch
Auto, scheduled, day, night
Max. Resolution
1920 × 1080
Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),
Sub stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240),
IR
IR Range
Up to 30 m
Wavelength
850 nm
Interface
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
General
Power Supply
12 VDC ± 25%, 5.5 mm coaxial power plug ,PoE (802.3af, class 3)
Power Consumption and Current
12 VDC, 0.4 A, Max: 5 W,PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W,
Material
Without –M model:,Bubble: plastic, front cover: plastic, bottom base: metal,–M model:,Bubble: plastic, front cover: metal, bottom base: metal,
Dimensions
Camera: Ø 111 mm × 82.4 mm (Ø 4.4" × 3.2"),With package: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3"),
Weight
Without –M model:,Camera: Approx. 410 g (0.9 lb.),With package: Approx. 610 g (1.3 lb.),–M model:,Camera: Approx. 453 g (1 lb.),With package: Approx. 662 g (1.5 lb.),
Protection Level
IP67, IK10
Operating Condition
-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
Compression Standard
H.264+
Main stream supports
H.265+
Main stream supports
H.264 Type
Baseline Profile/Main Profile/High Profile
Video Compression
Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,
H.265 Type
Main Profile
Video Bit Rate
32 Kbps to 8 Mbps
Smart Feature-set
Region of Interest
1 fixed region for main stream and sub-stream
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor1/2.8" progressive scan CMOS
  • Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
  • Shutter Speed1/3 s to 1/100, 000 s
  • Slow ShutterYes
  • Wide Dynamic RangeDWDR
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°
  • DNR3D DNR
  • Day & NightIR cut filter
  • Auto-IrisNo
Lens
  • ApertureF2.0
  • FocusFixed
  • FOV2.8 mm, horizontal FOV 114°, vertical FOV 62°, diagonal FOV 135°,4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°,
  • Lens MountM12
  • Focal Length2.8 mm, 4 mm
Network
  • Alarm TriggerMotion detection, video tampering alarm, illegal login
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users,3 levels: Administrator, Operator, and User,
  • ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
  • Image EnhancementBLC, 3D DNR
  • Image SettingSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Day/Night SwitchAuto, scheduled, day, night
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),
  • Sub stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240),
IR
  • IR RangeUp to 30 m
  • Wavelength850 nm
Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
General
  • Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug ,PoE (802.3af, class 3)
  • Power Consumption and Current12 VDC, 0.4 A, Max: 5 W,PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W,
  • MaterialWithout –M model:,Bubble: plastic, front cover: plastic, bottom base: metal,–M model:,Bubble: plastic, front cover: metal, bottom base: metal,
  • DimensionsCamera: Ø 111 mm × 82.4 mm (Ø 4.4" × 3.2"),With package: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3"),
  • WeightWithout –M model:,Camera: Approx. 410 g (0.9 lb.),With package: Approx. 610 g (1.3 lb.),–M model:,Camera: Approx. 453 g (1 lb.),With package: Approx. 662 g (1.5 lb.),
  • Protection LevelIP67, IK10
  • Operating Condition-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
Compression Standard
  • H.264+Main stream supports
  • H.265+Main stream supports
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 8 Mbps
Smart Feature-set
  • Region of Interest1 fixed region for main stream and sub-stream
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Technical documents

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.5.800_210628
Applied to:
HWI-D120H(2.8mm)(HiWatchSTD)
