EOL

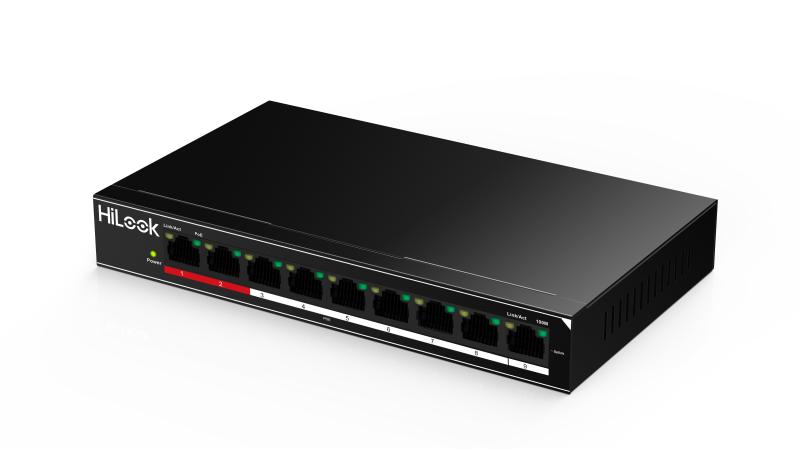

8 Port Fast Ethernet Unmanaged POE Switch

  • Unmanaged switch with 8 x 100 Mbps PoE ports and 1 x 100 Mbps uplink port;
  • All ports support 6 kV lighting protection;
  • 58 W PoE power budget;
  • Maximum transmission distance is 250 meters;
  • MAC address auto learning and auto aging.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

NS-0109P-58
NS-0109P-58
EOL
Data Sheet

Specification

  • Physical appearance
  • Appearance0.6 mm sheet of galvanized metal without electric fan
  • Weight1.77 kg
  • Dimension177.5 mm × 104 mm × 26 mm
  • Mounting typeDesktop / wall mounting
  • Power supply
  • Power input51 V DC, 1.25 A
  • Reverse connection protection Supported
  • PoE output power58 W
  • Power consumption< 63 W
  • Other parameters
  • LED indicatorLink/Act LED indicators, PoE LED indicator, Power LED indicator, 100M LED indicator
  • Port
  • Forwarding methodStore-and-forward
  • Port amount9
  • Port typeRJ45, 10/100 Base-T(X)
  • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af/at
  • Priority queue2
  • Flow controlBack-pressure flow control in IEEE 802.3x full duplex
  • Switching capacity1.8 Gbps
  • MAC address table4 K
  • Packet forwarding rate1.34 Mpps
  • Environment
  • Operating temperature(0 - 40) °C
  • Storage temperature(-40 - 70) °C
  • Operating humidity(10 – 90) % RH, non-condensing
  • Storage humidity(5 – 90) % RH, non-condensing
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Physical appearance
Appearance
0.6 mm sheet of galvanized metal without electric fan
Weight
1.77 kg
Dimension
177.5 mm × 104 mm × 26 mm
Mounting type
Desktop / wall mounting
Power supply
Power input
51 V DC, 1.25 A
Reverse connection protection
Supported
PoE output power
58 W
Power consumption
< 63 W
Other parameters
LED indicator
Link/Act LED indicators, PoE LED indicator, Power LED indicator, 100M LED indicator
Port
Forwarding method
Store-and-forward
Port amount
9
Port type
RJ45, 10/100 Base-T(X)
Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af/at
Priority queue
2
Flow control
Back-pressure flow control in IEEE 802.3x full duplex
Switching capacity
1.8 Gbps
MAC address table
4 K
Packet forwarding rate
1.34 Mpps
Environment
Operating temperature
(0 - 40) °C
Storage temperature
(-40 - 70) °C
Operating humidity
(10 – 90) % RH, non-condensing
Storage humidity
(5 – 90) % RH, non-condensing
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Physical appearance
  • Appearance0.6 mm sheet of galvanized metal without electric fan
  • Weight1.77 kg
  • Dimension177.5 mm × 104 mm × 26 mm
  • Mounting typeDesktop / wall mounting
Power supply
  • Power input51 V DC, 1.25 A
  • Reverse connection protection Supported
  • PoE output power58 W
  • Power consumption< 63 W
Other parameters
  • LED indicatorLink/Act LED indicators, PoE LED indicator, Power LED indicator, 100M LED indicator
Port
  • Forwarding methodStore-and-forward
  • Port amount9
  • Port typeRJ45, 10/100 Base-T(X)
  • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af/at
  • Priority queue2
  • Flow controlBack-pressure flow control in IEEE 802.3x full duplex
  • Switching capacity1.8 Gbps
  • MAC address table4 K
  • Packet forwarding rate1.34 Mpps
Environment
  • Operating temperature(0 - 40) °C
  • Storage temperature(-40 - 70) °C
  • Operating humidity(10 – 90) % RH, non-condensing
  • Storage humidity(5 – 90) % RH, non-condensing
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
