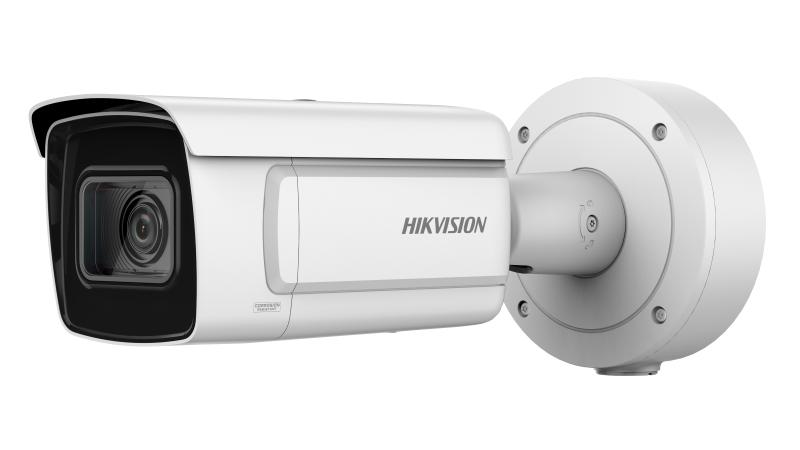

4MP Darkfighter Moto Varifocal Bullet Network Camera

High quality imaging with 4 MP resolution
Excellent low-light performance via DarkFighter technology
Clear imaging against strong back light thanks to LightFighter technology
Efficient H.265+ compression technology to save bandwidth and storage
Advanced streaming technology enables smooth live view and data self-correction in poor networks
5 streams and up to 5 custom streams to meet a wide variety of applications
Hikvision embedded open platform allows third party applications to be installed in Hikvision network cameras
6 behavior analyses, 3 exception detection, and face detection
Anti-corrosion with NEMA 4X certification
water and dust resistant and vandal proof (IP67 and IK10)

View Less

Available models:

DS-2CD5A46G0-IZSYUHK(2.7-13.5mm)(MENA)

DS-2CD5A46G0-IZSYUHK ^Discontinued

Specification
Resources
Accessories

Camera
Image Sensor1/1.8ʺ Progressive Scan CMOS
Day &NightIR Cut Filter
Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON), 0.005 Lux @ (F1.8, AGC ON), 0 Lux with IR
Slow ShutterYes
Wide Dynamic Range150 dB
Shutter Speed1 s to 1/100,000 s
Angle AdjustmentBracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Illuminator
IR RangeUp to 50 m
Wavelength850 nm

Lens
Auto-IrisDC drive, P-iris
ApertureF1.2 to 2.5
FocusAuto, semi auto, manual
FOVHorizontal FOV 109.2° to 38.9°, vertical FOV 56.2° to 21.9°, diagonal FOV 134.5° to 45°
Lens MountIntegrated
Lens TypeMotorized lens, 2.7 to 13.5 mm

Network
Network StoragemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
Smooth StreamingYes
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS1.0, TLS1.1
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users. 3 user levels: administrator, operator and user
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome57.0+，Firefox52.0+

Video
Max. Resolution2560 × 1440
Video Stream5 defined streams and up to 5 custom stream
Main Stream50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fifth Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Custom Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Video Bit Rate32 Kbps to 16 Mbps
H.264+Main stream support
H.265+Main stream support
Scalable Video Coding (SVC)H.264 and H.265 encoding

Smart Feature-Set
Smart EventLine crossing detection, up to 4 lines configurable ;Intrusion detection, up to 4 regions configurable ;Region entrance detection, up to 4 regions configurable ;Region exiting detection, up to 4 regions configurable ;Unattended baggage detection, up to 4 regions configurable ;Object removal detection, up to 4 regions configurable ;Face detection: detects faces and upload images ;Scene change detection, defocus detection
Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Region of InterestMain stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions and dynamic face tracking for each stream
StatisticsCounting
Linkage MethodTrigger recording：memory card, network storage, pre-record and post-record ;Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email ; Trigger notification: HTTP, ISAPI, alarm output, Email

Image EnhancementBLC, HLC, 3D DNR, Defog, EIS, distortion correction
Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Target CroppingYes
Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
SNR≥52dB

Approval
EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
SafetyUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
Chemistry2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
ProtectionIngress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013) Anti-Corrosion: NEMA 4X: NEMA 250-2014

Interface
Communication Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port
Alarm2 inputs, 2 outputs (max. 24 VDC, 1A)
Video Output1Vp-p composite output (75 Ω/CVBS), only for adjustment
On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB

General
Firmware Version5.6.0
Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Embedded Open PlatformYes. The camera supports installation and running up to 4 extra applications.
General FunctionAnti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter, HTTP listening
ResetReset via reset button on camera body, web browser and client software
Startup and Operating Conditions-30 °C to 65 °C (-22 °F to 149 °F), -H: -40 °C to 65 °C (-40 °F to 149 °F) Humidity 95% or less (non-condensing)
Storage Conditions -30 °C to 65 °C (-22 °F to 149 °F) Humidity 95% or less (non-condensing)
Power Supply12 VDC ± 20%, three-core terminal block; reverse polarity protection, PoE (802.3at, type 2, class 4)
Power Consumption and Current-IZS: 12 VDC, 1.08 A, Max: 13.0W; PoE: (802.3at, 42.5 V to 57 V), 0.31 A to 0.23 A, Max: 13.0W, class 4 -IZHS: 12 VDC, 1.13 A, Max: 13.5W; PoE: (802.3at, 42.5 V to 57 V), 0.42 A to 0.32 A, Max: 18.0W, class 4
MaterialMetal
DimensionsCamera: Φ140 × 351 mm (Φ5.5" × 13.8") With package: 405 × 190 × 180 mm (15.9" × 7.5" × 7.1")
Camera: approx. 2.20 kg (4.80 lb.) With package: approx. 2.70 kg (5.95 lb.)
Heater-H: yes

Camera

Image Sensor

1/1.8ʺ Progressive Scan CMOS

Day &Night

IR Cut Filter

Min. Illumination

Color: 0.002 Lux @ (F1.2, AGC ON), 0.005 Lux @ (F1.8, AGC ON), 0 Lux with IR

Slow Shutter

Yes

Wide Dynamic Range

150 dB

Shutter Speed

1 s to 1/100,000 s

Angle Adjustment

Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Illuminator

IR Range

Up to 50 m

Wavelength

850 nm

Lens

Auto-Iris

DC drive, P-iris

Aperture

F1.2 to 2.5

Focus

Auto, semi auto, manual

FOV

Horizontal FOV 109.2° to 38.9°, vertical FOV 56.2° to 21.9°, diagonal FOV 134.5° to 45°

Lens Mount

Integrated

Lens Type

Motorized lens, 2.7 to 13.5 mm

Network

Network Storage

microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

API

ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome

Smooth Streaming

Yes

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS1.0, TLS1.1

Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome57.0+，Firefox52.0+

Video

Max. Resolution

2560 × 1440

Video Stream

5 defined streams and up to 5 custom stream

Main Stream

50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fourth Stream

50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fifth Stream

50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)

Custom Stream

50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264 Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Video Bit Rate

32 Kbps to 16 Mbps

H.264+

Main stream support

H.265+

Main stream support

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Smart Feature-Set

Smart Event

Line crossing detection, up to 4 lines configurable ;Intrusion detection, up to 4 regions configurable ;Region entrance detection, up to 4 regions configurable ;Region exiting detection, up to 4 regions configurable ;Unattended baggage detection, up to 4 regions configurable ;Object removal detection, up to 4 regions configurable ;Face detection: detects faces and upload images ;Scene change detection, defocus detection

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Region of Interest

Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions and dynamic face tracking for each stream

Statistics

Counting

Linkage Method

Trigger recording：memory card, network storage, pre-record and post-record ;Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email ; Trigger notification: HTTP, ISAPI, alarm output, Email


Image Enhancement

BLC, HLC, 3D DNR, Defog, EIS, distortion correction

Image Setting

Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Target Cropping

Yes

Day/Night Switch

Day/Night/Auto/Schedule/Triggered by Alarm In

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

SNR

≥52dB

Approval

EMC

47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015

Safety

UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015

Chemistry

2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006

Protection

Ingress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013) Anti-Corrosion: NEMA 4X: NEMA 250-2014

Interface

Communication Interface

1 RJ45 10M/100M/1000M self-adaptive Ethernet port

Alarm

2 inputs, 2 outputs (max. 24 VDC, 1A)

Video Output

1Vp-p composite output (75 Ω/CVBS), only for adjustment

On-board Storage

Built-in micro SD/SDHC/SDXC slot, up to 256 GB

General

Firmware Version

5.6.0

Web Client Language

32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Embedded Open Platform

Yes. The camera supports installation and running up to 4 extra applications.

General Function

Anti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter, HTTP listening

Reset

Reset via reset button on camera body, web browser and client software

Startup and Operating Conditions

-30 °C to 65 °C (-22 °F to 149 °F), -H: -40 °C to 65 °C (-40 °F to 149 °F) Humidity 95% or less (non-condensing)

Storage Conditions

-30 °C to 65 °C (-22 °F to 149 °F) Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 20%, three-core terminal block; reverse polarity protection, PoE (802.3at, type 2, class 4)

Power Consumption and Current

-IZS: 12 VDC, 1.08 A, Max: 13.0W; PoE: (802.3at, 42.5 V to 57 V), 0.31 A to 0.23 A, Max: 13.0W, class 4 -IZHS: 12 VDC, 1.13 A, Max: 13.5W; PoE: (802.3at, 42.5 V to 57 V), 0.42 A to 0.32 A, Max: 18.0W, class 4

Material

Metal

Dimensions

Camera: Φ140 × 351 mm (Φ5.5" × 13.8") With package: 405 × 190 × 180 mm (15.9" × 7.5" × 7.1")

Camera: approx. 2.20 kg (4.80 lb.) With package: approx. 2.70 kg (5.95 lb.)

Heater

-H: yes
