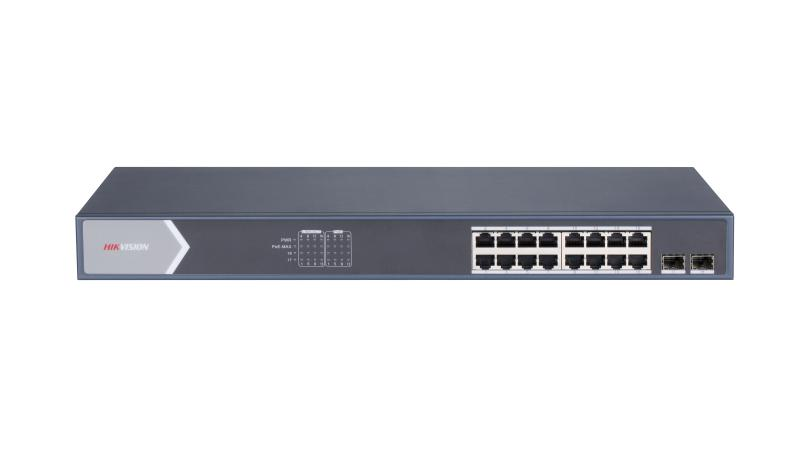

16 Port Gigabit Web POE Switch

16 × gigabit PoE ports, and 2 × gigabit fiber optical ports
IEEE 802.3at/af standard for PoE ports
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
6 KV surge protection for PoE ports.
PoE output power management
AF/AT camera can reach up to 300 m in extend mode
PoE watchdog to auto detect and restart the cameras that do not respond
Gigabit network access design
Wire-speed forwarding
Store-and-forward switching.
Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on
Port management
Web management
Solid high-strength metal shell

View Less

Data Sheet

DS-3E1518P-E

Specification
Resources
Accessories

Data Sheet

General
ShellMetal material
Net weight2.735 kg (6.03 lb)
Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
Operating humidity5% to 95% (no condensation)
Power supply100 to 240 VAC, 50/60 Hz, Max. 6.5 A
Gross weight3.31 kg (7.30 lb)
Dimension (L × H × D)440 mm × 220.8 mm × 44 mm (17.32” × 8.69” × 1.73”)
Storage temperature-40 °C to 85 °C (-40 °F to 185 °F)
Relative humidity5% to 95% (no condensation)
Power source250 W
Max. power consumption250 W
Power consumption in idle25 W

Network parameters
Port number16 × gigabit PoE ports, and 2 × gigabit fiber optical ports
Port typeRJ45 port, full duplex, MDI/MDI-X adaptive
StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
Forwarding modeStore-and-forward switching
Working modeStandard mode (default); Extend mode
MAC address table8 K
Switching capacity36 Gbps
Packet forwarding rate26.784 Mpps
Internal cache4.1 Mbits

PoE power supply
PoE standardIEEE 802.3af, IEEE 802.3at
PoE power pinEthernet cables 1/2/3/6 provide power supply.
PoE portPorts 1 to 16
Max. port power30 W
PoE power budget225 W

Software Function
Device maintenanceSupport remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters, import and export configuration, time sync.
Port configurationSupport the configuration of port rate and slow control, and ports enabling.
Long rangeSupport up to 300 m transmission.
PoE watchdogPorts 1 to 16: auto detect and restart the cameras that do not respond.
Port rate-limitingSupport rate-limiting for ingress and egress ports.
Storm controlSupport the storm control of unknown unicast, multicast and broadcast.
Port mirroringSupport port mirroring function.
QoSSupport WRR and SP scheduling and port priority.
VLANSupport 128 VLANs.
STPSupport STP and RSTP.
SNMPSupport SNMPv1 and SNMPv2c, the node information for system and interfaces acquisition.
PoESupport IEEE 802.3at/af power supply.

General

Shell

Metal material

Net weight

2.735 kg (6.03 lb)

Operating temperature

-10 °C to 55 °C (14 °F to 131 °F)

Operating humidity

5% to 95% (no condensation)

Power supply

100 to 240 VAC, 50/60 Hz, Max. 6.5 A

Gross weight

3.31 kg (7.30 lb)

Dimension (L × H × D)

440 mm × 220.8 mm × 44 mm (17.32” × 8.69” × 1.73”)

Storage temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Relative humidity

5% to 95% (no condensation)

Power source

250 W

Max. power consumption

250 W

Power consumption in idle

25 W

Network parameters

Port number

16 × gigabit PoE ports, and 2 × gigabit fiber optical ports

Port type

RJ45 port, full duplex, MDI/MDI-X adaptive

Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z

Forwarding mode

Store-and-forward switching

Working mode

Standard mode (default); Extend mode

MAC address table

8 K

Switching capacity

36 Gbps

Packet forwarding rate

26.784 Mpps

Internal cache

4.1 Mbits

PoE power supply

PoE standard

IEEE 802.3af, IEEE 802.3at

PoE power pin

Ethernet cables 1/2/3/6 provide power supply.

PoE port

Ports 1 to 16

Max. port power

30 W

PoE power budget

225 W

Software Function

Device maintenance

Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters, import and export configuration, time sync.

Port configuration

Support the configuration of port rate and slow control, and ports enabling.

Long range

Support up to 300 m transmission.

PoE watchdog

Ports 1 to 16: auto detect and restart the cameras that do not respond.

Port rate-limiting

Support rate-limiting for ingress and egress ports.

Storm control

Support the storm control of unknown unicast, multicast and broadcast.

Port mirroring

Support port mirroring function.

QoS

Support WRR and SP scheduling and port priority.

VLAN

Support 128 VLANs.

STP

Support STP and RSTP.

SNMP

Support SNMPv1 and SNMPv2c, the node information for system and interfaces acquisition.

PoE

Support IEEE 802.3at/af power supply.

General

ShellMetal material
Net weight2.735 kg (6.03 lb)
Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
Operating humidity5% to 95% (no condensation)
Power supply100 to 240 VAC, 50/60 Hz, Max. 6.5 A
Gross weight3.31 kg (7.30 lb)
Dimension (L × H × D)440 mm × 220.8 mm × 44 mm (17.32” × 8.69” × 1.73”)
Storage temperature-40 °C to 85 °C (-40 °F to 185 °F)
Relative humidity5% to 95% (no condensation)
Power source250 W
Max. power consumption250 W
Power consumption in idle25 W

Network parameters

Port number16 × gigabit PoE ports, and 2 × gigabit fiber optical ports
Port typeRJ45 port, full duplex, MDI/MDI-X adaptive
StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
Forwarding modeStore-and-forward switching
Working modeStandard mode (default); Extend mode
MAC address table8 K
Switching capacity36 Gbps
Packet forwarding rate26.784 Mpps
Internal cache4.1 Mbits

PoE power supply

PoE standardIEEE 802.3af, IEEE 802.3at
PoE power pinEthernet cables 1/2/3/6 provide power supply.
PoE portPorts 1 to 16
Max. port power30 W
PoE power budget225 W

Software Function

Device maintenanceSupport remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters, import and export configuration, time sync.
Port configurationSupport the configuration of port rate and slow control, and ports enabling.
Long rangeSupport up to 300 m transmission.
PoE watchdogPorts 1 to 16: auto detect and restart the cameras that do not respond.
Port rate-limitingSupport rate-limiting for ingress and egress ports.
Storm controlSupport the storm control of unknown unicast, multicast and broadcast.
Port mirroringSupport port mirroring function.
QoSSupport WRR and SP scheduling and port priority.
VLANSupport 128 VLANs.
STPSupport STP and RSTP.
SNMPSupport SNMPv1 and SNMPv2c, the node information for system and interfaces acquisition.
PoESupport IEEE 802.3at/af power supply.
