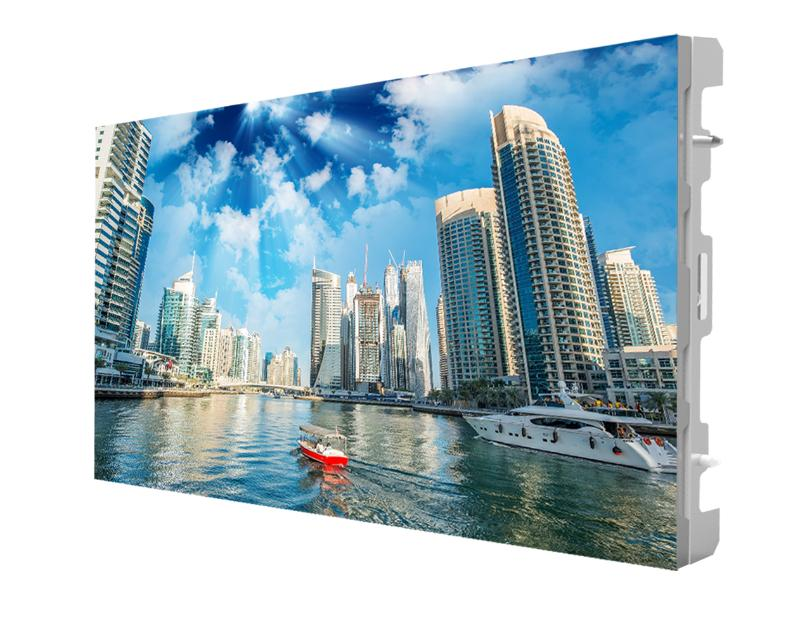

P1.56 Fine Fixel Pitch LED Display Uni

Seamlessly splice images in rows and columns.
Easily form standard 1920 × 1080 and 3840 × 2160 screens, achieving high definition dot-by-dot display.
Automatically adapt signal sources to screens without the help of a video processing equipment.
Easily optimize images with low resolution by improving definition, contrast and saturation with Pix Master technology.
Dynamically enhance image parameters such as contrast, sharpness, saturation, color temperature and gamut to get the image more vivid.
Use the buttons on the panel of sending card to adjust brightness and switch signal.
Use the remote control to navigate through menu after access to the multi-functional card.
Automatically remove moisture to protect lamp boards from water damage when the device is kept in a humid environment or left unused for a long time.
Back up signals and power supplies (optional) to maintain a reliable system.
Use the sending card to input HDMI, DVI, and DP signals.
Network interface output.
Remote configuration via the debugging network interface.
Easy to disassemble lamp board, power supply, and receiving card on the front side with modular unit structure.
Cable-free connection between cabinets, and high precise customized connectors and anti-dropping safety locks inside cabinets.
Three-axis XYZ structure designed to perfectly adjust the flatness of the entire screen.
Rapidly eliminate bright and dim lines with no need of professional equipment or operations.

View Less

Available models:

DS-D4215FI-CWF/A

DS-D4215FI-CWF

EOL

Specification
Resources
Accessories

General
Working temperature–10°C to 40°C (14°F to 104°F)
Working humidity10% to 80% RH (non-condensing)
Storage temperature–20°C to 60°C (–4°F to 140°F)
Storage humidity10% to 85% RH(non-condensing)
Gross weight9.8 kg (21.6 lb. including packaging)
Independent package dimensions796 × 484 × 192 mm (31.33 × 19.05 × 7.56 inch)
Independent package materialCorrugated Paper
Exterior package typeCorrugated Case
Wooden box dimensions1035 × 875 × 605 mm (40.75 × 34.45 × 23.82 inch)
Wooden box material5A Plywood

Cabinet
Pixel structureSurface mounted trinity LED
Pixel pitch1.56 mm
Modules component1 × 2
Dimensions600 (W) × 337.5 (H) × 61 (D) mm (23.62 × 13.29 × 2.40 inch)
Resolution384 × 216
Area0.2025 m2
Weight8.3 kg (18.3 lb.)
Pixel density409600 dots/m2
Cabinet materialMagnalium
Maintenance methodFront maintenance for all components. Power supply can be maintained from both front and rear.

Processing performance
Driving methodConstant current driving
Frame frequency60 Hz
Refresh rateUp to 3840 Hz
Grey levelUp to 16 bit

Display
Viewing angleHorizontal 160°, vertical 160°
Contrast ratio≥ 3000:1
White balance brightness600 cd/m2 by default. Up to 800 cd/m2.
Color temperature3000 to 10000 adjustable
Brightness uniformity≥ 97%
Color uniformity≤ ± 0.003Cx, Cy

Electrical
Power supply100 to 240 VAC ± 15%
Max. consumption≤ 750 W/m2
Average consumption< 280 W/m2

General

Working temperature

–10°C to 40°C (14°F to 104°F)

Working humidity

10% to 80% RH (non-condensing)

Storage temperature

–20°C to 60°C (–4°F to 140°F)

Storage humidity

10% to 85% RH(non-condensing)

Gross weight

9.8 kg (21.6 lb. including packaging)

Independent package dimensions

796 × 484 × 192 mm (31.33 × 19.05 × 7.56 inch)

Independent package material

Corrugated Paper

Exterior package type

Corrugated Case

Wooden box dimensions

1035 × 875 × 605 mm (40.75 × 34.45 × 23.82 inch)

Wooden box material

5A Plywood

Cabinet

Pixel structure

Surface mounted trinity LED

Pixel pitch

1.56 mm

Modules component

1 × 2

Dimensions

600 (W) × 337.5 (H) × 61 (D) mm (23.62 × 13.29 × 2.40 inch)

Resolution

384 × 216

Area

0.2025 m2

Weight

8.3 kg (18.3 lb.)

Pixel density

409600 dots/m2

Cabinet material

Magnalium

Maintenance method

Front maintenance for all components. Power supply can be maintained from both front and rear.

Processing performance

Driving method

Constant current driving

Frame frequency

60 Hz

Refresh rate

Up to 3840 Hz

Grey level

Up to 16 bit

Display

Viewing angle

Horizontal 160°, vertical 160°

Contrast ratio

≥ 3000:1

White balance brightness

600 cd/m2 by default. Up to 800 cd/m2.

Color temperature

3000 to 10000 adjustable

Brightness uniformity

≥ 97%

Color uniformity

≤ ± 0.003Cx, Cy

Electrical

Power supply

100 to 240 VAC ± 15%

Max. consumption

≤ 750 W/m2

Average consumption

< 280 W/m2

General

Working temperature–10°C to 40°C (14°F to 104°F)
Working humidity10% to 80% RH (non-condensing)
Storage temperature–20°C to 60°C (–4°F to 140°F)
Storage humidity10% to 85% RH(non-condensing)
Gross weight9.8 kg (21.6 lb. including packaging)
Independent package dimensions796 × 484 × 192 mm (31.33 × 19.05 × 7.56 inch)
Independent package materialCorrugated Paper
Exterior package typeCorrugated Case
Wooden box dimensions1035 × 875 × 605 mm (40.75 × 34.45 × 23.82 inch)
Wooden box material5A Plywood

Cabinet

Pixel structureSurface mounted trinity LED
Pixel pitch1.56 mm
Modules component1 × 2
Dimensions600 (W) × 337.5 (H) × 61 (D) mm (23.62 × 13.29 × 2.40 inch)
Resolution384 × 216
Area0.2025 m2
Weight8.3 kg (18.3 lb.)
Pixel density409600 dots/m2
Cabinet materialMagnalium
Maintenance methodFront maintenance for all components. Power supply can be maintained from both front and rear.
