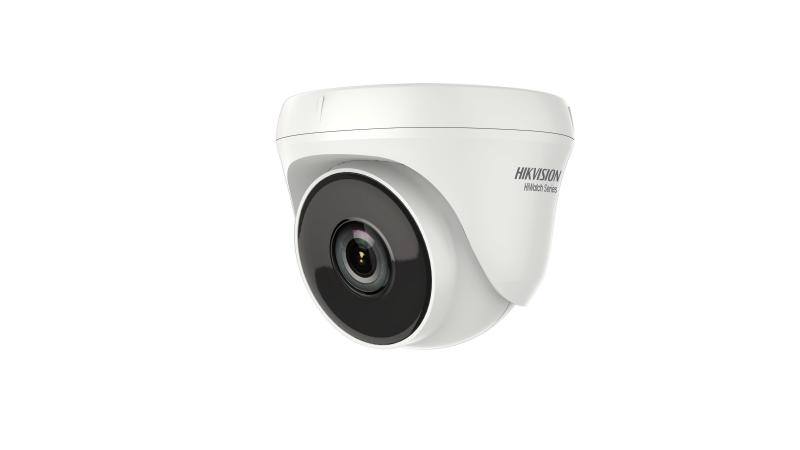

2 MP Fixed Turret Camera

1080p turret camera
Smart IR: up to 40 m IR distance
Water and dust resistant (IP66)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS);

View Less

Available models:

HWT-T220-P(2.8mm)(HiWatch STD)

HWT-T220-P(3.6mm)(HiWatch STD)

HWT-T220-P

Specification
Resources
Accessories

Interface
Video Output1 HD analog output
Switch ButtonTVI/AHD/CVI/CVBS

Menu
AGCHigh/Medium/Low/Off
Day/Night ModeAuto/Color/BW (Black and White)
Backlight CompensationSupport
DWDR (Digital Wide Dynamic Range)Support
LanguageEnglish
FunctionsBrightness, Sharpness, DNR, Mirror, Smart IR

Camera
Image Sensor2 MP CMOS image sensor
Signal SystemPAL/NTSC
Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time1/25 (1/30) s to 1/50,000 s
Lens2.8 mm, 3.6 mm, 6 mm
Horizontal Field of View103° (2.8 mm), 80.7° (3.6 mm), 50.1° (6 mm)
Lens MountM12
Day & NightIR cut filter
SynchronizationInternal synchronization
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Effective Pixels1920 (H) × 1080 (V)

General
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply12 VDC ±15%
Power ConsumptionMax. 4 W
Protection LevelIP66
MaterialPlastic
IR RangeUp to 40 m
DimensionsØ 110 mm × 94.52 mm (Ø 4.33" × 4.35")
Weight240 g (0.53 lb.)

Interface

Video Output

1 HD analog output

Switch Button

TVI/AHD/CVI/CVBS

AGC

High/Medium/Low/Off

Day/Night Mode

Auto/Color/BW (Black and White)

Backlight Compensation

Support

DWDR (Digital Wide Dynamic Range)

Support

Language

English

Functions

Brightness, Sharpness, DNR, Mirror, Smart IR

Camera

Image Sensor

2 MP CMOS image sensor

Signal System

PAL/NTSC

Frame Rate

PAL: 1080p@25fps NTSC: 1080p@30fps

Min. illumination

0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time

1/25 (1/30) s to 1/50,000 s

Lens

2.8 mm, 3.6 mm, 6 mm

Horizontal Field of View

103° (2.8 mm), 80.7° (3.6 mm), 50.1° (6 mm)

Lens Mount

M12

Day & Night

IR cut filter

Synchronization

Internal synchronization

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Effective Pixels

1920 (H) × 1080 (V)

General

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)

Power Supply

12 VDC ±15%

Power Consumption

Max. 4 W

Protection Level

IP66

Material

Plastic

IR Range

Up to 40 m

Dimensions

Ø 110 mm × 94.52 mm (Ø 4.33" × 4.35")

Weight

240 g (0.53 lb.)

Interface

Video Output1 HD analog output
Switch ButtonTVI/AHD/CVI/CVBS

AGCHigh/Medium/Low/Off
Day/Night ModeAuto/Color/BW (Black and White)
Backlight CompensationSupport
DWDR (Digital Wide Dynamic Range)Support
LanguageEnglish
FunctionsBrightness, Sharpness, DNR, Mirror, Smart IR

Camera

Image Sensor2 MP CMOS image sensor
Signal SystemPAL/NTSC
Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time1/25 (1/30) s to 1/50,000 s
Lens2.8 mm, 3.6 mm, 6 mm
Horizontal Field of View103° (2.8 mm), 80.7° (3.6 mm), 50.1° (6 mm)
Lens MountM12
Day & NightIR cut filter
SynchronizationInternal synchronization
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Effective Pixels1920 (H) × 1080 (V)

General

Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply12 VDC ±15%
Power ConsumptionMax. 4 W
Protection LevelIP66
MaterialPlastic
IR RangeUp to 40 m
DimensionsØ 110 mm × 94.52 mm (Ø 4.33" × 4.35")
Weight240 g (0.53 lb.)
