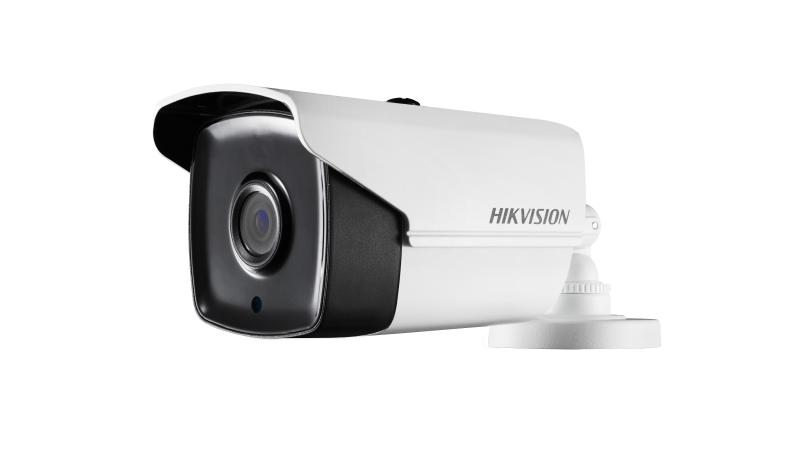

2 MP PoC Fixed Bullet Camera

2 MP PoC bullet camera
EXIR 2.0: advanced infrared technology with 20 m IR distance
Water and dust resistant (IP67)
Transmits both HD video and power over the same coaxial cable

View Less

Data Sheet

Available models:

DS-2CE16D0T-IT1E(2.8mm)

DS-2CE16D0T-IT1E(3.6mm)

DS-2CE16D0T-IT1E(6mm)

DS-2CE16D0T-IT1E

EOL

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & NightIR Cut Filter
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
Signal SystemPAL/NTSC

Lens
Lens Type2.8 mm, 3.6 mm and 6 mm fixed focal lens
Focal Length & FOVHorizontal FOV: 103.55° (2.8 mm), 82.63° (3.6 mm), 54.38° (6 mm)
Lens MountM12

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 20 m
Smart Supplement LightYes

Image SettingsBrightness;Sharpness;Mirror;AGC
Frame RatePAL: 1080p @ 25 fps NTSC: 1080p @ 30 fps
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC;HLC;Global
Noise Reduction2D DNR

Interface
Video Output1 HD analog output

General
Power12 VDC ± 30%/PoC.af, max. 3 W
MaterialFront cover: Metal, Main body: Plastic
Dimension86.7 mm × 81.6 mm × 226 mm (3.4" × 3.2" × 8.9")
WeightApprox. 430 g (0.95 lb)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
CommunicationHIKVISION-C
LanguageEnglish

Approval
ProtectionIP67

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Min. Illumination

0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Day & Night

IR Cut Filter

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°

Signal System

PAL/NTSC

Lens

Lens Type

2.8 mm, 3.6 mm and 6 mm fixed focal lens

Focal Length & FOV

Horizontal FOV: 103.55° (2.8 mm), 82.63° (3.6 mm), 54.38° (6 mm)

Lens Mount

M12

Illuminator

Supplement Light Type

Supplement Light Range

Up to 20 m

Smart Supplement Light

Yes


Image Settings

Brightness;Sharpness;Mirror;AGC

Frame Rate

PAL: 1080p @ 25 fps NTSC: 1080p @ 30 fps

Day/Night Mode

Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

BLC;HLC;Global

Noise Reduction

2D DNR

Interface

Video Output

1 HD analog output

General

Power

12 VDC ± 30%/PoC.af, max. 3 W

Material

Front cover: Metal, Main body: Plastic

Dimension

86.7 mm × 81.6 mm × 226 mm (3.4" × 3.2" × 8.9")

Weight

Approx. 430 g (0.95 lb)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)

Communication

HIKVISION-C

Language

English

Approval

Protection

IP67
