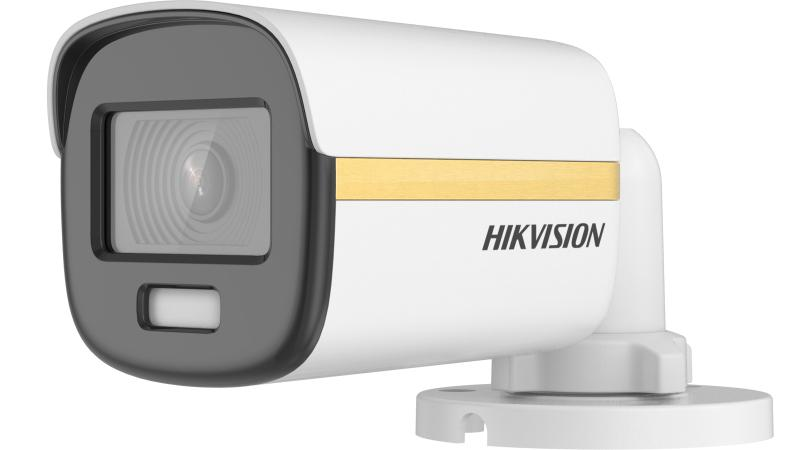

2 MP ColorVu Fixed Mini Bullet Camera

  • High quality imaging with 2 MP, 1920 × 1080 resolution
  • 24/7 color imaging with F1.0 aperture
  • Clear imaging against strong back light due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • 2.8 mm, 3.6 mm fixed focal lens
  • Up to 20 m white light distance for bright night imaging
  • One port for four switchable signals (TVI/AHD/CVI/CVBS)
  • Water and dust resistant (IP67)
View Less
View more

Available models:

DS-2CE10DF3T-PF(2.8mm)
DS-2CE10DF3T-PF(3.6mm)

Specification

  • Camera
  • Image Sensor2 MP CMOS
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light ON
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & Night24/7 Color Imaging
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
  • Signal SystemPAL/NTSC
  • Slow ShutterMax. 16 times
  • Light AlarmSolid Light Alarm (White Light)
  • Lens
  • Lens Type2.8 mm, 3.6 mm fixed focal lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 106°, vertical FOV: 56°, diagonal FOV: 129° 3.6 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 100°
  • Lens MountM12
  • Illuminator
  • Supplement Light TypeWhite Light
  • Supplement Light RangeUp to 20 m
  • Smart Supplement LightYes
  • Image
  • Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
  • Image SettingsBrightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, AGC
  • Frame RateTVI: 1080p@25fps/30fps CVI: 1080p@25fps/30fps AHD: 1080p@25fps/30fps CVBS: PAL/NTSC
  • Day/Night ModeColor
  • Wide Dynamic Range (WDR)≥130 dB
  • Image EnhancementWDR, BLC, HLC, Global, HLS
  • Privacy Mask4 programmable privacy masks
  • Noise Reduction3D DNR/2D DNR
  • White BalanceAuto/Manual
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • Event
  • Motion Detection4 programmable motion areas
  • General
  • MaterialPlastic
  • Dimension161.1 mm × 70 mm × 70 mm (6.34" × 2.76" × 2.76")
  • WeightApprox. 222.5 g (0.49 lb.)
  • Operating Condition-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Power12 VDC ± 25%, Max. 2.9 W *You are recommended to use one power adapter to supply the power for one camera.
  • Approval
  • ProtectionIP67

Specification

Specification
Camera
  • Image Sensor2 MP CMOS
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light ON
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & Night24/7 Color Imaging
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
  • Signal SystemPAL/NTSC
  • Slow ShutterMax. 16 times
  • Light AlarmSolid Light Alarm (White Light)
Lens
  • Lens Type2.8 mm, 3.6 mm fixed focal lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 106°, vertical FOV: 56°, diagonal FOV: 129° 3.6 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 100°
  • Lens MountM12
Illuminator
  • Supplement Light TypeWhite Light
  • Supplement Light RangeUp to 20 m
  • Smart Supplement LightYes
  • Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
  • Image SettingsBrightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, AGC
  • Frame RateTVI: 1080p@25fps/30fps CVI: 1080p@25fps/30fps AHD: 1080p@25fps/30fps CVBS: PAL/NTSC
  • Day/Night ModeColor
  • Wide Dynamic Range (WDR)≥130 dB
  • Image EnhancementWDR, BLC, HLC, Global, HLS
  • Privacy Mask4 programmable privacy masks
  • Noise Reduction3D DNR/2D DNR
  • White BalanceAuto/Manual
Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
Event
  • Motion Detection4 programmable motion areas
General
  • MaterialPlastic
  • Dimension161.1 mm × 70 mm × 70 mm (6.34" × 2.76" × 2.76")
  • WeightApprox. 222.5 g (0.49 lb.)
  • Operating Condition-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Power12 VDC ± 25%, Max. 2.9 W *You are recommended to use one power adapter to supply the power for one camera.
Approval
  • ProtectionIP67
