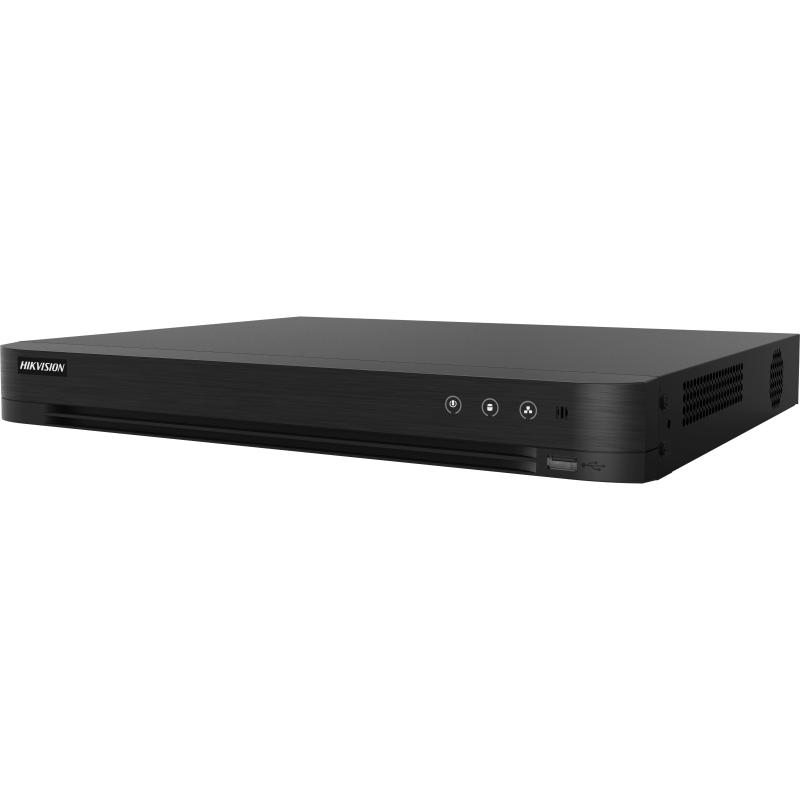

8-ch 1080p 1U H.265 AcuSense DVR

  • Deep learning-based analysis or face picture comparison
  • H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
  • HDTVI/AHD/CVI/CVBS/IP video inputs
  • Audio via coaxial cable
  • Up to 12/24-ch IP camera inputs (up to 6 MP)
  • Max. 800 m for 1080p and 1,200 m for 720p HDTVI signal transmission
  • Up to 10 TB capacity per HDD

Specification
  • Facial Recognition
  • Face Picture ComparisonFace picture comparison, face picture search (1-ch face picture comparison alarm for HD analog camera)
  • Face Picture LibraryUp to 16 face picture libraries, with up to 500 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 80 MB)
  • Motion Detection 2.0
  • Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
  • Perimeter Protection
  • Human/Vehicle AnalysisUp to 4-ch
  • Recording
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding ResolutionMain stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
  • Video Bitrate32 Kbps to 6 Mbps
  • Dual-streamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
  • Video and Audio
  • IP Video Input2-ch (up to 10-ch) Enhanced IP mode on: 4-ch (up to 12-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDTVI Input4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps *: The 3 MP signal input is only available for channel 1/2 of iDS-7208HQHI-M2/FA
  • AHD Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • CVBS InputPAL/NTSC
  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output
  • VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output
  • Audio Input1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Synchronous playback8-ch
  • Network
  • Remote Connection64
  • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
  • Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
  • Auxiliary Interface
  • SATA2 SATA interface, up to 10 TB capacity for each disk
  • Serial InterfaceRS-485 (half-duplex)
  • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
  • Alarm In/OutN/A (optional to support )
  • General
  • Power Supply12 VDC, 2.5 A
  • Consumption≤ 30 W
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
  • ≤ 1.78 kg (3.9 lb)
Specification
