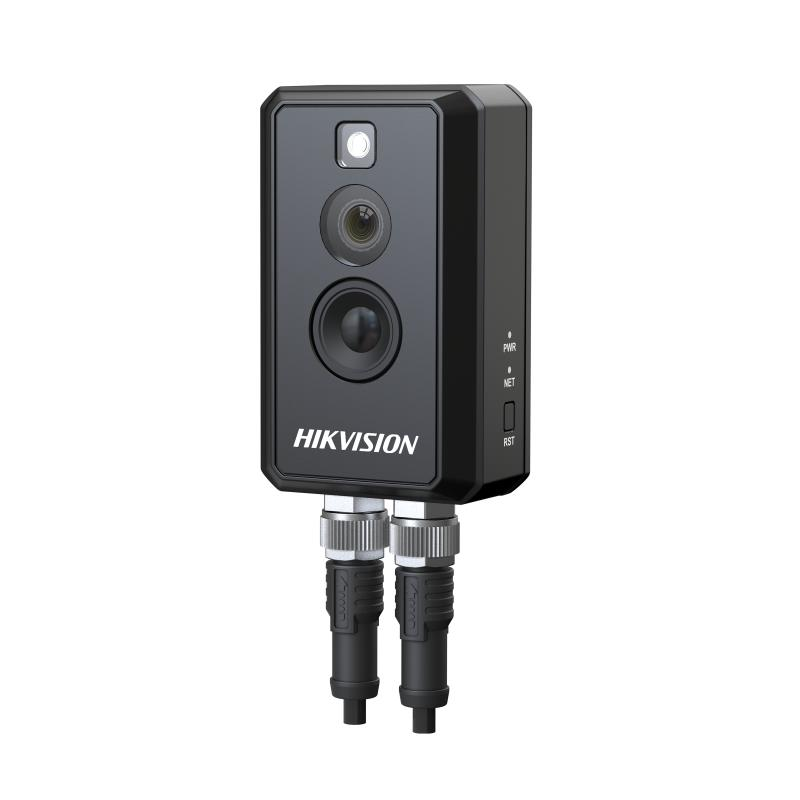

Thermographic Cube Camera

  • 160 × 120 (the resolution of output image is 640 × 480) resolution in thermal channel, high sensitivity sensor
  • Point, line and area for temperature measurement
  • Temperature range: -20°C to 150°C (-4°F to 302°F), 20°C to 350°C (68°F to 662°F); temperature accuracy: Max (±2 °C, ±2%)
  • Reliable temperature exception alarm function
  • 3D DNR, image detail enhancement
Specification
  • Thermal
  • Image SensorVOx Uncooled Focal Plane Arrays
  • 해상도160×120
  • Pixel Interval17μm
  • Response Waveband8μm to 14μm
  • NETDLess than 40 mK (@25°C,F#=1.1)
  • Focal Length3.1mm
  • Focus ModeAthermalized
  • Field of View50° × 37.2° (H × V)
  • IFOV5.48 mrad
  • Image Frequency25 hz
  • ApertureF 1.1
  • Min. Focusing Distance0.15 m
  • Optical
  • Image Sensor1/2.8” Progressive Scan CMOS
  • 해상도1600 × 1200
  • Focal Length2 mm
  • Field of View92.6° × 75.8° (H × V)
  • Compression Standard
  • Video Compression H.264 (Baseline/Main/High Profile) /MJPEG/H.265, H.264+, H.265+
  • Video Bit Rate256 Kbps to 16 Mbps
  • Smart Function
  • Temperature Range-20°C to 150°C (-4°F to 302°F), 20°C to 350°C (68°F to 662°F)
  • Temperature AccuracyMax (±2°C, ±2%)
  • Temperature Measurement RulesDisplay Max. and Min. temperature in live view; 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
  • 이미지
  • Main StreamThermal channel: 25fps (640 × 480);Optical channel: 25fps (1600 × 1200)
  • Sub StreamThermal channel: 25fps (640 × 480);Optical channel: 25fps (1600 × 1200)
  • Image Enhancement3D DNR, EIS
  • Image SettingRotate mode, brightness, contrast and AGC adjustable by client software or web browser
  • Network
  • Alarm TriggerMotion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • General FunctionOne-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • 인터페이스
  • Communication Interface1 RJ45 Ethernet port, 1 RS-485 interface
  • Alarm1 input, 1 output
  • Thermographic Integration
  • External Optics CorrectionSupport Thermal Optical Transmittance and Manual Input External Optics Temperature; Support Calibration Coefficient calculation
  • Temperature Info. Of Thermographic RuleReal- time Output; Time Interval: 500 ms
  • Temperature Info. of ImageReal-time Output; Default is 4 fps, 32bit × 640 × 512 per frame; 16 bit and 32 bit are selectable
  • Capture Thermal Graphic32 bit 160 × 120
  • Metadata OutputMax. 25 fps (16bit 160 × 120)
  • 일반
  • Menu languageEnglish
  • Power Supply10-30 VDC, Max. 4W PoE (802.3af, class 2)
  • Working Temperature and Humidity-20 °C to 50 °C (-4 °F to 122 °F), humidity less than 95%
  • Protection levelIP 67
  • Weight56 mm × 38.8 mm × 110 mm (2.20" × 1.53" × 4.33")
  • DimensionApprox. 335 g (0.74 lb)
