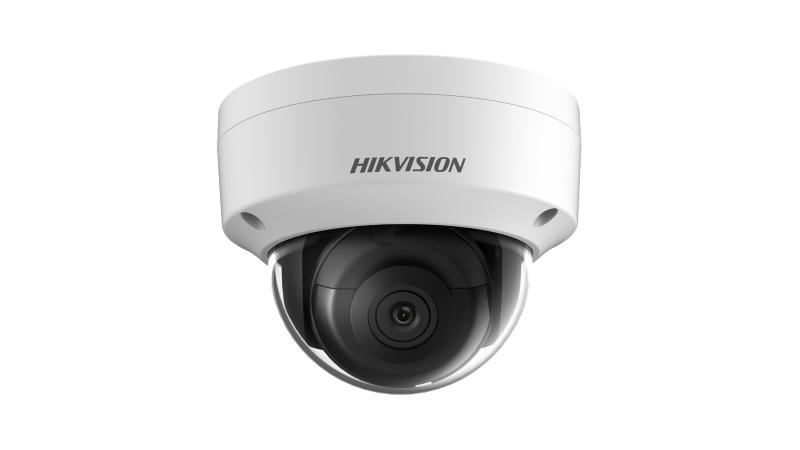

2 MP Powered-by-DarkFighter Fixed Dome Network Camera

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • -S: audio and alarm interface available
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Robust structure design with full metal materials.

View Less
View more
DS-2CD2125FWD-I (Black)EOL
DS-2CD2125FWD-IEOL
DS-2CD2125FWD-ISEOL
Sales Inquiry

Available models:

DS-2CD2125FWD-I(2.8mm)(BLACK)
DS-2CD2125FWD-I(4mm)(BLACK)

Available models:

DS-2CD2125FWD-I(4mm)
DS-2CD2125FWD-I(2.8mm)

Available models:

DS-2CD2125FWD-IS(2.8mm)
DS-2CD2125FWD-IS(4mm)
DS-2CD2125FWD-IS(6mm)
DS-2CD2125FWD-I(S)

Specification

  • 카메라
  • Image Sensor 1/2.8" Progressive Scan CMOS
  • Min. Illumination Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR;Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed 1/3 s to 1/100,000 s
  • Slow Shutter Yes
  • Wide Dynamic Range 120dB
  • Day & Night IR Cut Filter
  • Angle Adjustment Pan: 0° to 355° , tilt: 0° to 75°, rotate: 0° to 355°
  • Lens
  • Focus Fixed
  • Lens Type 2.8/4/6/8/12 mm
  • FOV 2.8 mm, horizontal field of view: 108°;4 mm, horizontal field of view: 86.4°;6 mm, horizontal field of view: 52°;8 mm, horizontal field of view: 41°;12 mm, horizontal field of view: 25°
  • Aperture F1.6
  • Lens Mount M12
  • Illuminator
  • IR Range 30 m
  • Video
  • Max. Resolution 1920 × 1080
  • Main Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720);60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720)
  • Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240);60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream 50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288);60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240)
  • Video Compression Main stream: H.265/H.264;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264
  • Video Bit Rate 32 Kbps to 16 Mbps
  • H.264 Type Main Profile/High Profile
  • H.265 Type Main Profile
  • H.264+ Main stream supports
  • H.265+ Main stream supports
  • Region of Interest (ROI) Support 1 fixed region for main stream and sub-stream separately
  • Audio
  • Audio Compression G722.1/G.711/G726/MP2L2/PCM/MP3
  • Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
  • Network
  • Simultaneous Live View Up to 6 channels
  • API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
  • Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
  • User/Host Up to 32 users,3 levels: Administrator, Operator and User
  • Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
  • Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Client iVMS-4200, Hik-Connect, Hik-Central
  • Web Browser Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
  • Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login
  • Image
  • Day/Night Switch Day/Night/Auto/Schedule
  • DNR 3D DNR
  • Image Enhancement BLC/3D DNR/HLC
  • Image Settings Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
  • Interface
  • On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128G
  • Hardware Reset Yes
  • Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
  • Event
  • Smart Event Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
  • Face Detection Yes
  • Exception Detection Scene change detection
  • General
  • Firmware Version V5.5.80
  • General Function One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Startup and Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Power Consumption and Current 12 VDC ± 25%, 5 W; PoE(802.3af, 36 V to 57V, class 3), 6.5 W
  • Camera Dimension Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″);Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″)
  • Camera Weight Camera: 500 g (1.1 lb.)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

카메라
Image Sensor
1/2.8" Progressive Scan CMOS
Min. Illumination
Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR;Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Wide Dynamic Range
120dB
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0° to 355° , tilt: 0° to 75°, rotate: 0° to 355°
Lens
Focus
Fixed
Lens Type
2.8/4/6/8/12 mm
FOV
2.8 mm, horizontal field of view: 108°;4 mm, horizontal field of view: 86.4°;6 mm, horizontal field of view: 52°;8 mm, horizontal field of view: 41°;12 mm, horizontal field of view: 25°
Aperture
F1.6
Lens Mount
M12
Illuminator
IR Range
30 m
Video
Max. Resolution
1920 × 1080
Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720);60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720)
Sub Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240);60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream
50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288);60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240)
Video Compression
Main stream: H.265/H.264;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Main Profile/High Profile
H.265 Type
Main Profile
H.264+
Main stream supports
H.265+
Main stream supports
Region of Interest (ROI)
Support 1 fixed region for main stream and sub-stream separately
Audio
Audio Compression
G722.1/G.711/G726/MP2L2/PCM/MP3
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
Network
Simultaneous Live View
Up to 6 channels
API
ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
User/Host
Up to 32 users,3 levels: Administrator, Operator and User
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Network Storage
Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login
Day/Night Switch
Day/Night/Auto/Schedule
DNR
3D DNR
Image Enhancement
BLC/3D DNR/HLC
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Interface
On-board Storage
Built-in Micro SD/SDHC/SDXC slot, up to 128G
Hardware Reset
Yes
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Event
Smart Event
Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Face Detection
Yes
Exception Detection
Scene change detection
General
Firmware Version
V5.5.80
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Startup and Operating Conditions
-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Consumption and Current
12 VDC ± 25%, 5 W; PoE(802.3af, 36 V to 57V, class 3), 6.5 W
Camera Dimension
Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″);Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″)
Camera Weight
Camera: 500 g (1.1 lb.)
For better user experience, we highly recommend you to update your device to the latest firmware asap.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.6.820_220519
Network Camera V5.6.820 Release Note --G1.pdf
Applied to:
DS-2CD2125FWD-I(2.8mm)(BLACK)
DS-2CD2125FWD-I(4mm)(BLACK)

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.6.820_220519
Network Camera V5.6.820 Release Note --G1.pdf
Applied to:
DS-2CD2125FWD-I(4mm)
DS-2CD2125FWD-I(2.8mm)

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.6.820_220519
Network Camera V5.6.820 Release Note --G1.pdf
Applied to:
DS-2CD2125FWD-IS(2.8mm)
Firmware_V5.6.821_230831
Network Camera-V5.6.821 Release Note-IPC_G1 230831
Applied to:
DS-2CD2125FWD-IS(4mm)
DS-2CD2125FWD-IS(6mm)
