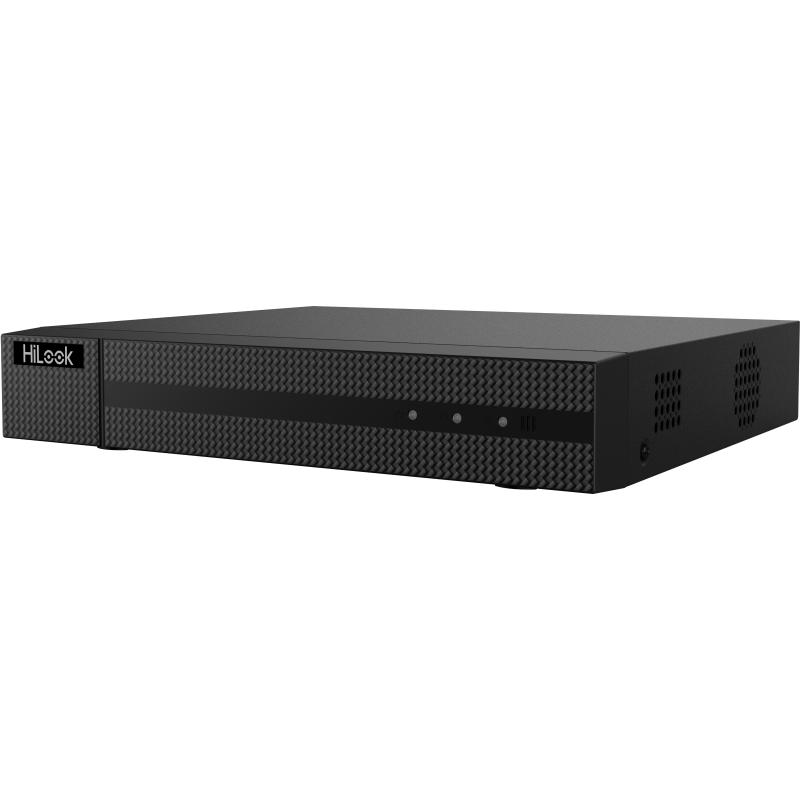

4-ch 1080p Lite 1U H.264 DVR

  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Long distance transmission over UTP and coaxial cable
  • Supports 1080p lite, and when enabled the image effect is similar with 1080p
  • Encoding abilty up to 1080p lite @ 12 fps
  • One HDD for continuous video recording
  • Smart search for efficient playback.
View Less
View more
Sales Inquiry

Available models:

DS-HiLookI-DVR-204G-F1(B)(S)
DVR-204G-F1
EOL

Specification

  • Perimeter Protection
  • Line Crossing Detection/Intrusion Detection1-ch
  • Video and Audio
  • IP Video Input1-ch (up to 5-ch) Up to 1080p resolution Support H.264+/H.264 IP cameras
  • Analog Video Input4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDTVI Input1080p25, 1080p30, 720p25, 720p30
  • AHD Input1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input1080p25, 1080p30, 720p25, 720p30
  • CVBS InputSupport
  • HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way AudioReuse the first audio input
  • Synchronous playback4-ch
  • Recording
  • Video CompressionH.264+/H.264
  • Encoding ResolutionWhen 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
  • Frame RateMain stream: When 1080p Lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: 2CIF@6fps; CIF/QVGA/QCIF@ 25fps (P)/30fps (N)
  • Video Bitrate32 Kbps to 4 Mbps
  • Dual-streamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
  • Network
  • Remote Connection32
  • Network ProtocolTCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
  • Auxiliary Interface
  • SATA1 SATA interface
  • CapacityUp to 6 TB capacity for each disk
  • USB InterfaceN/A
  • Alarm In/OutRear panel: 2 × USB 2.0
  • General
  • Power Supply12 VDC, 1.5 A
  • Consumption≤ 8 W
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
  • Weight≤ 1 kg (2.2 lb)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Perimeter Protection
Line Crossing Detection/Intrusion Detection
1-ch
Video and Audio
IP Video Input
1-ch (up to 5-ch) Up to 1080p resolution Support H.264+/H.264 IP cameras
Analog Video Input
4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input
1080p25, 1080p30, 720p25, 720p30
AHD Input
1080p25, 1080p30, 720p25, 720p30
HDCVI Input
1080p25, 1080p30, 720p25, 720p30
CVBS Input
Support
HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
Reuse the first audio input
Synchronous playback
4-ch
Recording
Video Compression
H.264+/H.264
Encoding Resolution
When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
Frame Rate
Main stream: When 1080p Lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: 2CIF@6fps; CIF/QVGA/QCIF@ 25fps (P)/30fps (N)
Video Bitrate
32 Kbps to 4 Mbps
Dual-stream
Support
Stream Type
Video, Video & Audio
Audio Compression
G.711u
Audio Bitrate
64 Kbps
Network
Remote Connection
32
Network Protocol
TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface
1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface
SATA
1 SATA interface
Capacity
Up to 6 TB capacity for each disk
USB Interface
N/A
Alarm In/Out
Rear panel: 2 × USB 2.0
General
Power Supply
12 VDC, 1.5 A
Consumption
≤ 8 W
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight
≤ 1 kg (2.2 lb)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Perimeter Protection
  • Line Crossing Detection/Intrusion Detection1-ch
Video and Audio
  • IP Video Input1-ch (up to 5-ch) Up to 1080p resolution Support H.264+/H.264 IP cameras
  • Analog Video Input4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDTVI Input1080p25, 1080p30, 720p25, 720p30
  • AHD Input1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input1080p25, 1080p30, 720p25, 720p30
  • CVBS InputSupport
  • HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way AudioReuse the first audio input
  • Synchronous playback4-ch
Recording
  • Video CompressionH.264+/H.264
  • Encoding ResolutionWhen 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
  • Frame RateMain stream: When 1080p Lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: 2CIF@6fps; CIF/QVGA/QCIF@ 25fps (P)/30fps (N)
  • Video Bitrate32 Kbps to 4 Mbps
  • Dual-streamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
Network
  • Remote Connection32
  • Network ProtocolTCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface
  • SATA1 SATA interface
  • CapacityUp to 6 TB capacity for each disk
  • USB InterfaceN/A
  • Alarm In/OutRear panel: 2 × USB 2.0
General
  • Power Supply12 VDC, 1.5 A
  • Consumption≤ 8 W
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
  • Weight≤ 1 kg (2.2 lb)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Technical documents

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V4.30.203_210616
Firmware_Asia_V4.30.203_210616
Turbo HD DVR_V4.30.203 build 210616.pdf
Applied to:
DS-HiLookI-DVR-204G-F1(B)(S)
