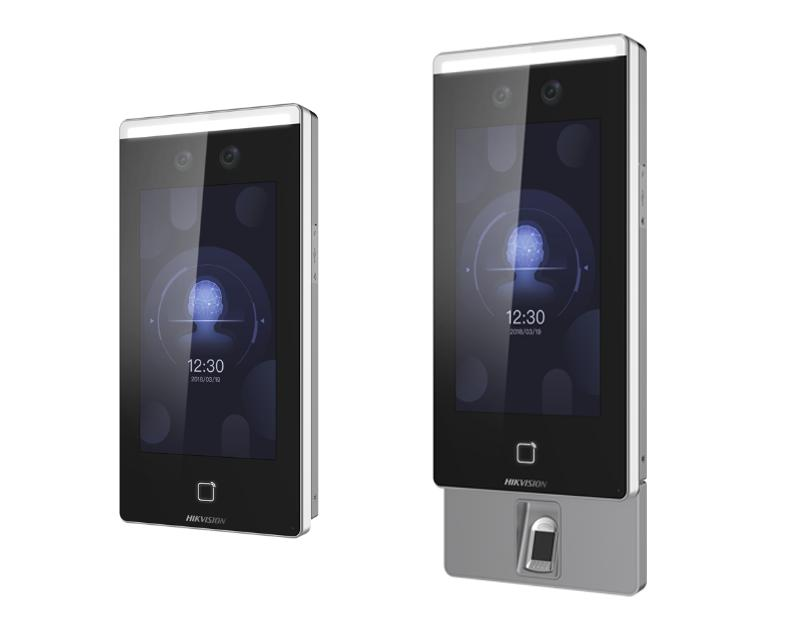

Ultra Face Recognition Terminals

  • 7-inch touch screen, 2 Mega pixel wide-angle lens
  • Adjusts supplement light brightness manually
  • Face recognition in dark environment
  • Face recognition distance: 0.3m to 3m
  • Deep learning algorithm
  • Suggested height for face recognition between 1.4 m and 1.9 m
  • 50,000 face capacity, 5,000 fingerprint capacity, and 100,000 event capacity
  • Face anti-spoofing
  • Multiple authentication modes
  • Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99%
  • Stand-alone operation
  • Transmits data to the client software via TCP/IP communication and saves the data on the client software
  • Capture linkage and captured pictures saving
  • Manage, search and set device data after logging in the device locally
  • Connects to one external card reader or access controller via RS-485 protocol
  • Connects to external access controller or Wiegand card reader via Wiegand protocol
  • Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
  • Two-way audio with client software, indoor station, and master station
  • Remote live view via RTSP protocol; encoding mode: H.264
  • NTP, manually time synchronization, and auto synchronization
  • Watchdog design and tamper function
  • Audio prompt
  • Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
  • Supports multiple languages: English, Spanish, Arabic, Thai, Indonesian, and Russian
  • Supports EHome 5.0 (ISUP 5.0), and ISAPI protocol
  • Configuration via web browser
View Less
View more
Sales Inquiry
DS-K1T671T

Specification

  • general
  • FOV HFOV= 46°；VFOV=87°
  • Display
  • Dimensions7-inch
  • TypeLCD
  • Operation methodCapacitive touch screen
  • Video
  • Pixel2 MP
  • Lens2
  • Audio
  • Tone qualityNoise suppression and echo cancellation
  • Network
  • Wired network10 M/100 M/1000 M self-adaptive
  • Interface
  • Network interface1
  • Lock output1
  • Exit button1
  • Door contact input1
  • Power interface2-pin
  • Authentication
  • Card typeM1 card
  • Card reading frequency13.56 MHz
  • General
  • Power supply method2 pin connecter
  • Working temperature-30 ℃ to 60 ℃(-22 °F to 140 °F)
  • Working humidity0~90％ (No condensing)
  • Dimensions290 mm × 116.5 mm × 33 mm (11.4" × 4.6" × 1.3")
  • Protective levelIP65
  • InstallationSurface
  • Function
  • QR code recognitionSupport
  • Face anti-spoofingSupport
  • Audio promptSupport
  • Time synchronizationSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

general
FOV
HFOV= 46°；VFOV=87°
Display
Dimensions
7-inch
Type
LCD
Operation method
Capacitive touch screen
Video
Pixel
2 MP
Lens
2
Audio
Tone quality
Noise suppression and echo cancellation
Network
Wired network
10 M/100 M/1000 M self-adaptive
Interface
Network interface
1
Lock output
1
Exit button
1
Door contact input
1
Power interface
2-pin
Authentication
Card type
M1 card
Card reading frequency
13.56 MHz
General
Power supply method
2 pin connecter
Working temperature
-30 ℃ to 60 ℃(-22 °F to 140 °F)
Working humidity
0~90％ (No condensing)
Dimensions
290 mm × 116.5 mm × 33 mm (11.4" × 4.6" × 1.3")
Protective level
IP65
Installation
Surface
Function
QR code recognition
Support
Face anti-spoofing
Support
Audio prompt
Support
Time synchronization
Support
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
general
  • FOV HFOV= 46°；VFOV=87°
Display
  • Dimensions7-inch
  • TypeLCD
  • Operation methodCapacitive touch screen
Video
  • Pixel2 MP
  • Lens2
Audio
  • Tone qualityNoise suppression and echo cancellation
Network
  • Wired network10 M/100 M/1000 M self-adaptive
Interface
  • Network interface1
  • Lock output1
  • Exit button1
  • Door contact input1
  • Power interface2-pin
Authentication
  • Card typeM1 card
  • Card reading frequency13.56 MHz
General
  • Power supply method2 pin connecter
  • Working temperature-30 ℃ to 60 ℃(-22 °F to 140 °F)
  • Working humidity0~90％ (No condensing)
  • Dimensions290 mm × 116.5 mm × 33 mm (11.4" × 4.6" × 1.3")
  • Protective levelIP65
  • InstallationSurface
Function
  • QR code recognitionSupport
  • Face anti-spoofingSupport
  • Audio promptSupport
  • Time synchronizationSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
