DS-K1T607

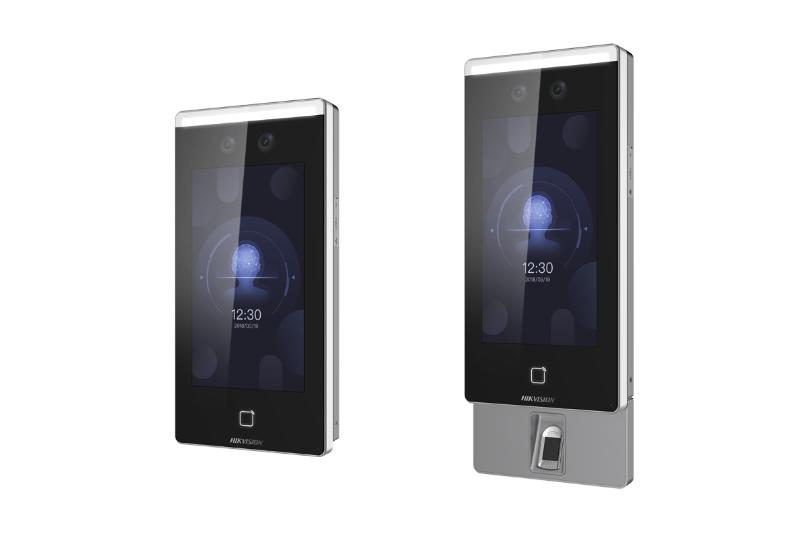

    Pro Series Wall-Mounted Face Recognition Terminal

    • Face recognition terminal
    • 7-inch touch screen, 2 Mega pixel wide-angle lens
    • Built-in card reader for EM/Mifare1 card(optional)
    • Deep learning algorithm
    • 6,000 faces, 5,000 cards, 5,000 fingerprints (optional), 10,000 events storage
    • TCP/IP, Wi-Fi(optional) communication, IP65
    • Anti-spoofing detection
    • Face recognition in dark environment
    • Multiple time attendance status
    • Face Recognition Accuracy Rate > 99%
    • Face Recognition Duration(1:N) ≤ 0.5s
    • Face Recognition Distance: 0.3m ~ 1.5m
    View Less
    View more

    Specification

    • System Parameters
    • Operation SystemLinux
    • Camera2 MP dual-lens camera, with IR supplement light, WDR
    • LCD screen7 inch touch screen; Ratio: 16:9; Resolution: 1024 × 600
    • 1:N face recognition duration＜ 0.5 s per person
    • Face picture capacity6,000
    • Event capacity10,000
    • general
    • Fingerprint Capacity5,000(Model with F only)
    • Card Reading Distance0 to 3 cm
    • Power Supply12 VDC/3 A
    • Working Temperature-30 °C to 60 °C (-22 °F to 140 °F)
    • Working Humidity0 to 90% (No condensing)
    • General
    • Card TypeEM card or M1 card
    • Face Recognition Distance0.3 to 1.5 m
    • Card Capacity6,000
    • Wi-FiSupport(model with W only)
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Specification

    System Parameters
    Operation System
    Linux
    Camera
    2 MP dual-lens camera, with IR supplement light, WDR
    LCD screen
    7 inch touch screen; Ratio: 16:9; Resolution: 1024 × 600
    1:N face recognition duration
    ＜ 0.5 s per person
    Face picture capacity
    6,000
    Event capacity
    10,000
    general
    Fingerprint Capacity
    5,000(Model with F only)
    Card Reading Distance
    0 to 3 cm
    Power Supply
    12 VDC/3 A
    Working Temperature
    -30 °C to 60 °C (-22 °F to 140 °F)
    Working Humidity
    0 to 90% (No condensing)
    General
    Card Type
    EM card or M1 card
    Face Recognition Distance
    0.3 to 1.5 m
    Card Capacity
    6,000
    Wi-Fi
    Support(model with W only)
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
    Specification
    System Parameters
    • Operation SystemLinux
    • Camera2 MP dual-lens camera, with IR supplement light, WDR
    • LCD screen7 inch touch screen; Ratio: 16:9; Resolution: 1024 × 600
    • 1:N face recognition duration＜ 0.5 s per person
    • Face picture capacity6,000
    • Event capacity10,000
    general
    • Fingerprint Capacity5,000(Model with F only)
    • Card Reading Distance0 to 3 cm
    • Power Supply12 VDC/3 A
    • Working Temperature-30 °C to 60 °C (-22 °F to 140 °F)
    • Working Humidity0 to 90% (No condensing)
    General
    • Card TypeEM card or M1 card
    • Face Recognition Distance0.3 to 1.5 m
    • Card Capacity6,000
    • Wi-FiSupport(model with W only)
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
