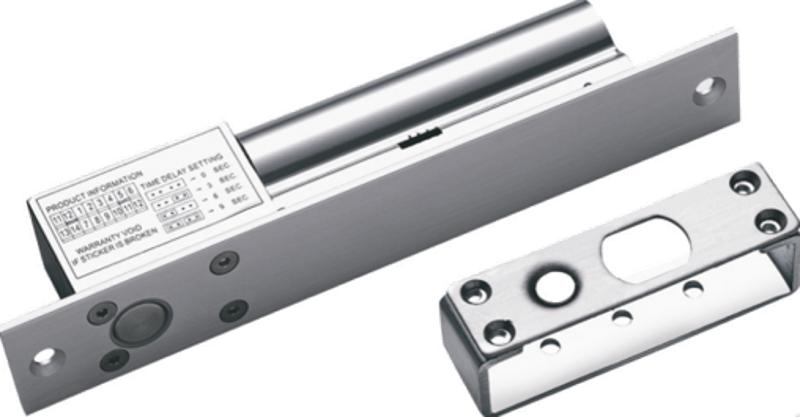

Value Series Bolt Electric Lock

Electric Bolt, 205×34×42mm (8.1×1.3×1.7"), 12VDC, ≤1.2A (Startup Current), 0.2A (Standby)
Auto-locking if induction module is detected
Suitable for wooden door, glass door, metal door
Equipped with internal voltage dependent resistor (MOV)
Signal output of door lock status (NO\NC\COM)
Abrasion-proof materials
Shell is made of aldural and is hard anodizing electroplated.

View Less

Data Sheet

Available models:

DS-K4T108

Specification
Resources
Accessories

Data Sheet

General
Power supply12 VDC; ≤ 1.2 A (Startup Current) 0.2 A (Standby)
Working temperature-10 °C to 55 °C (14 °F to 131 °F)
Working humidity0 to 95 % (relative humidity)
DimensionsLock Body: 205 mm × 34 mm × 42mm (8.1" × 1.3" × 1.7")
Weight0.74kg (1.6 lb)
MaterialShell: Hard Anodizing Electroplating Operated
Signal outputDry Contact Output, Max. Voltage 18V. If the wiring is COM/NC, NO Output: Locking; NC Output: Unlocking. If the wiring is COM/No, NC Output: Locking; NO Output: Unlocking;
Delay duration0/3/6/9s optional
Door typeWooden Door, glass door, metal Door

Magnetic Lock/General
Unlock methodCurrent Interruption
Surface temperature≤ Ambient Temperature +10 °C (50 °F)
Suitable doorWooden Door, Glass Door, and Metal Door

General

Power supply

12 VDC; ≤ 1.2 A (Startup Current) 0.2 A (Standby)

Working temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working humidity

0 to 95 % (relative humidity)

Dimensions

Lock Body: 205 mm × 34 mm × 42mm (8.1" × 1.3" × 1.7")

Weight

0.74kg (1.6 lb)

Material

Shell: Hard Anodizing Electroplating Operated

Signal output

Dry Contact Output, Max. Voltage 18V. If the wiring is COM/NC, NO Output: Locking; NC Output: Unlocking. If the wiring is COM/No, NC Output: Locking; NO Output: Unlocking;

Delay duration

0/3/6/9s optional

Door type

Wooden Door, glass door, metal Door

Magnetic Lock/General

Unlock method

Current Interruption

Surface temperature

≤ Ambient Temperature +10 °C (50 °F)

Suitable door

Wooden Door, Glass Door, and Metal Door

General

Power supply12 VDC; ≤ 1.2 A (Startup Current) 0.2 A (Standby)
Working temperature-10 °C to 55 °C (14 °F to 131 °F)
Working humidity0 to 95 % (relative humidity)
DimensionsLock Body: 205 mm × 34 mm × 42mm (8.1" × 1.3" × 1.7")
Weight0.74kg (1.6 lb)
MaterialShell: Hard Anodizing Electroplating Operated
Signal outputDry Contact Output, Max. Voltage 18V. If the wiring is COM/NC, NO Output: Locking; NC Output: Unlocking. If the wiring is COM/No, NC Output: Locking; NO Output: Unlocking;
Delay duration0/3/6/9s optional
Door typeWooden Door, glass door, metal Door
