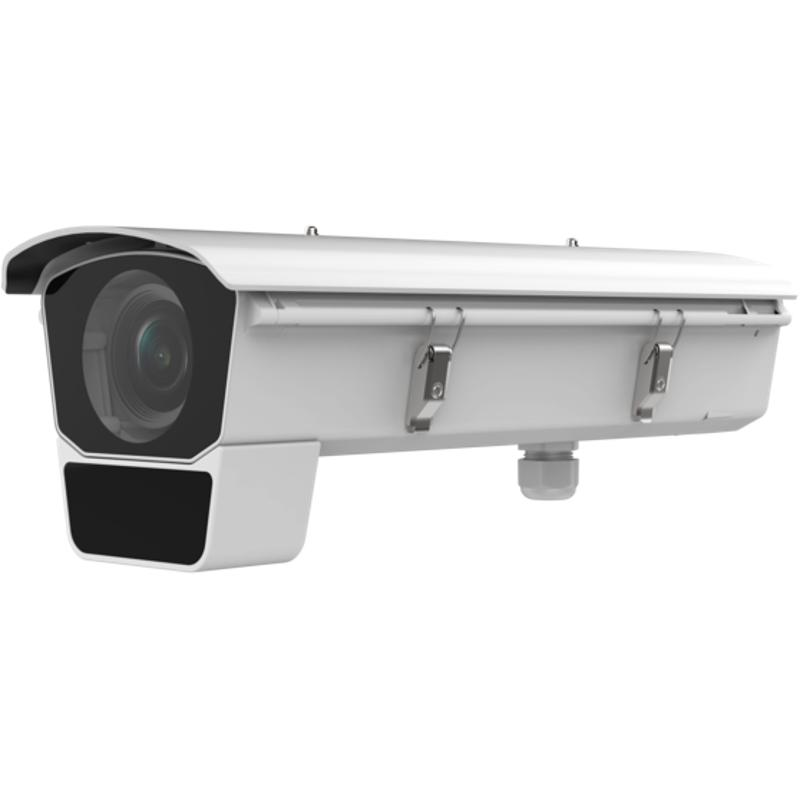

2 MP DeepinView ANPR Box With Housing Camera

High quality imaging with 2 MP resolution
Excellent low-light performance via DarkFighter technology
Clear imaging against strong back light thanks to LightFighter technology
License Plate Recognition
Efficient H.265+ compression technology to save bandwidth and storage
Advanced streaming technology enables smooth live view and data self-correction in poor networks
5 streams and up to 5 custom streams to meet a wide variety of applications
Hikvision embedded open platform allows third party applications to be installed in Hikvision network cameras
6 behavior analyses, 3 exception detection, and face detection
Water and dust resistant and vandal proof (IP67 and IK10).

View Less

Data Sheet

Available models:

DS-2CD7026G0/EP-IH(11-40mm)

DS-2CD7026G0/EP-IH(3.8-16mm)

DS-2CD7026G0/EP-I(H)

EOL

Specification
Resources
Accessories

Data Sheet

Camera
Image Sensor1/1.8ʺ Progressive Scan CMOS
Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON); B/W: 0.0002 Lux @ (F1.2, AGC ON)
Shutter Speed1 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range140 dB
Day & NightIR cut filter

Lens
FocusABF (auto back focus)-
FOV3.8 to 16 mm, F1.4, horizontal FOV 100.7° to 27.3°, vertical FOV 56.2° to 15.4°, diagonal FOV 115.5° to 31.3°;11 to 40 mm, F1.4, horizontal FOV 35.8° to 11.2°, vertical FOV 19.6° to 6.3°, diagonal FOV 41.7° to 12.8°-
Lens MountCS mount
Auto-IrisP-iris

Illuminator
IR Range3.8-16 mm: up to 80 m;11-40 mm: up to 120 m-
IR Wavelength850 nm-

Video
Max. Resolution1920 × 1080
Main Stream50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) ,60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fifth Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Custom Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream support
H.265+Main stream support
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic tracking

Audio
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)

Network
Simultaneous Live ViewUp to 20 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityRTP/RTSP OVER HTTPS, password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
Network StorageSupport microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR
ClientiVMS-4200, Hik-Connect, iVMS-4500
Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
Target CroppingYes
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
Image EnhancementBLC, HLC, 3D DNR, Defog, EIS
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface
Audio1 input (line in), 1 output, mono sound
Alarm 2 inputs, 2 outputs (max. 24 VDC/VAC, 1A max.)
Video Output1Vp-p composite output (75 Ω/CVBS)
On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 256 GB
Ethernet Interface1 RJ45 10M/100M/1000M Ethernet port ,1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Event
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventLine crossing detection, up to 4 lines configurable ,Intrusion detection, up to 4 regions configurable ,Region entrance detection, up to 4 regions configurable ,Region exiting detection, up to 4 regions configurable ,Unattended baggage detection, up to 4 regions configurable ,Object removal detection, up to 4 regions configurable ,Face detection: detects faces and upload images ,Scene change detection, defocus detection,

Deep Learning Function
Perimeter ProtectionLine crossing, intrusion, region entrance, region exiting ,Support alarm triggering by specified target types (human and vehicle) ,Filtering out false alarm caused by target types such as leaf, light, animal, and flag, etc.
Road Traffic and Vehicle Detectionyes
AccuracyCapture rate > 98%;Vehicle moving direction recognition accuracy > 96%;Mistaken capture rate < 2% (entrance/exit), < 5% (checkpoint)-
No License Plate DetectionYes-
Motorcycle LPRYes (only applicable to checkpoint)-
Allowlist and BlocklistMax. 10,000 records-

General
Firmware Version5.5.62
General FunctionOne-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply24 VAC ± 20%, two-core terminal block
Power Consumption and Current24 VAC, 1.6 A, max. 30 W
Camera Dimension465.4 × 160 × 169.2 mm (18.3" × 4.3" × 6.7");With package: 683 × 223 × 265 mm (26.9" × 8.8" × 10.4")
Camera Weight3800 g (8.4 lb);With package: 6000 g (13.2 lb)

Approval
ProtectionIP66, IK10

Camera

Image Sensor

1/1.8ʺ Progressive Scan CMOS

Min. Illumination

Color: 0.002 Lux @ (F1.2, AGC ON); B/W: 0.0002 Lux @ (F1.2, AGC ON)

Shutter Speed

1 s to 1/100,000 s

Slow Shutter

Yes

Wide Dynamic Range

140 dB

Day & Night

IR cut filter

Lens

Focus

ABF (auto back focus)-

FOV

3.8 to 16 mm, F1.4, horizontal FOV 100.7° to 27.3°, vertical FOV 56.2° to 15.4°, diagonal FOV 115.5° to 31.3°;11 to 40 mm, F1.4, horizontal FOV 35.8° to 11.2°, vertical FOV 19.6° to 6.3°, diagonal FOV 41.7° to 12.8°-

Lens Mount

CS mount

Auto-Iris

P-iris

Illuminator

IR Range

3.8-16 mm: up to 80 m;11-40 mm: up to 120 m-

IR Wavelength

850 nm-

Video

Max. Resolution

1920 × 1080

Main Stream

50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) ,60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)

Fourth Stream

50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fifth Stream

50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)

Custom Stream

50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264 Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

H.264+

Main stream support

H.265+

Main stream support

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic tracking

Audio

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)

Network

Simultaneous Live View

Up to 20 channels

API

ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Security

RTP/RTSP OVER HTTPS, password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF

Network Storage

Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR

Client

iVMS-4200, Hik-Connect, iVMS-4500

Web Browser

IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+


Day/Night Switch

Day/Night/Auto/Schedule/Triggered by Alarm In

Target Cropping

Yes

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format

Image Enhancement

BLC, HLC, 3D DNR, Defog, EIS

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface

Audio

1 input (line in), 1 output, mono sound

Alarm

2 inputs, 2 outputs (max. 24 VDC/VAC, 1A max.)

Video Output

1Vp-p composite output (75 Ω/CVBS)

On-Board Storage

Built-in microSD/SDHC/SDXC slot, up to 256 GB

Ethernet Interface

1 RJ45 10M/100M/1000M Ethernet port ,1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Event

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Smart Event

Line crossing detection, up to 4 lines configurable ,Intrusion detection, up to 4 regions configurable ,Region entrance detection, up to 4 regions configurable ,Region exiting detection, up to 4 regions configurable ,Unattended baggage detection, up to 4 regions configurable ,Object removal detection, up to 4 regions configurable ,Face detection: detects faces and upload images ,Scene change detection, defocus detection,

Deep Learning Function

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting ,Support alarm triggering by specified target types (human and vehicle) ,Filtering out false alarm caused by target types such as leaf, light, animal, and flag, etc.

Road Traffic and Vehicle Detection

yes

Accuracy

Capture rate > 98%;Vehicle moving direction recognition accuracy > 96%;Mistaken capture rate < 2% (entrance/exit), < 5% (checkpoint)-

No License Plate Detection

Yes-

Motorcycle LPR

Yes (only applicable to checkpoint)-

Allowlist and Blocklist

Max. 10,000 records-

General

Firmware Version

5.5.62

General Function

One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Power Supply

24 VAC ± 20%, two-core terminal block

Power Consumption and Current

24 VAC, 1.6 A, max. 30 W

Camera Dimension

465.4 × 160 × 169.2 mm (18.3" × 4.3" × 6.7");With package: 683 × 223 × 265 mm (26.9" × 8.8" × 10.4")

Camera Weight

3800 g (8.4 lb);With package: 6000 g (13.2 lb)

Approval

Protection

IP66, IK10

Camera

Image Sensor1/1.8ʺ Progressive Scan CMOS
Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON); B/W: 0.0002 Lux @ (F1.2, AGC ON)
Shutter Speed1 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range140 dB
Day & NightIR cut filter

Lens

FocusABF (auto back focus)-
FOV3.8 to 16 mm, F1.4, horizontal FOV 100.7° to 27.3°, vertical FOV 56.2° to 15.4°, diagonal FOV 115.5° to 31.3°;11 to 40 mm, F1.4, horizontal FOV 35.8° to 11.2°, vertical FOV 19.6° to 6.3°, diagonal FOV 41.7° to 12.8°-
Lens MountCS mount
Auto-IrisP-iris

Illuminator

IR Range3.8-16 mm: up to 80 m;11-40 mm: up to 120 m-
IR Wavelength850 nm-

Video

Max. Resolution1920 × 1080
Main Stream50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) ,60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fifth Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Custom Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream support
H.265+Main stream support
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic tracking

Audio

Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)

Network

Simultaneous Live ViewUp to 20 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityRTP/RTSP OVER HTTPS, password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
Network StorageSupport microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR
ClientiVMS-4200, Hik-Connect, iVMS-4500
Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+


Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
Target CroppingYes
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
Image EnhancementBLC, HLC, 3D DNR, Defog, EIS
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface

Audio1 input (line in), 1 output, mono sound
Alarm 2 inputs, 2 outputs (max. 24 VDC/VAC, 1A max.)
Video Output1Vp-p composite output (75 Ω/CVBS)
On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 256 GB
Ethernet Interface1 RJ45 10M/100M/1000M Ethernet port ,1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Event

Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventLine crossing detection, up to 4 lines configurable ,Intrusion detection, up to 4 regions configurable ,Region entrance detection, up to 4 regions configurable ,Region exiting detection, up to 4 regions configurable ,Unattended baggage detection, up to 4 regions configurable ,Object removal detection, up to 4 regions configurable ,Face detection: detects faces and upload images ,Scene change detection, defocus detection,

Deep Learning Function

Perimeter ProtectionLine crossing, intrusion, region entrance, region exiting ,Support alarm triggering by specified target types (human and vehicle) ,Filtering out false alarm caused by target types such as leaf, light, animal, and flag, etc.
Road Traffic and Vehicle Detectionyes
AccuracyCapture rate > 98%;Vehicle moving direction recognition accuracy > 96%;Mistaken capture rate < 2% (entrance/exit), < 5% (checkpoint)-
No License Plate DetectionYes-
Motorcycle LPRYes (only applicable to checkpoint)-
Allowlist and BlocklistMax. 10,000 records-

General

Firmware Version5.5.62
General FunctionOne-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply24 VAC ± 20%, two-core terminal block
Power Consumption and Current24 VAC, 1.6 A, max. 30 W
Camera Dimension465.4 × 160 × 169.2 mm (18.3" × 4.3" × 6.7");With package: 683 × 223 × 265 mm (26.9" × 8.8" × 10.4")
Camera Weight3800 g (8.4 lb);With package: 6000 g (13.2 lb)
