DS-KH8350-TE1/WTE1#EU


    7寸全数字触摸屏室内机

    • IP indoor station

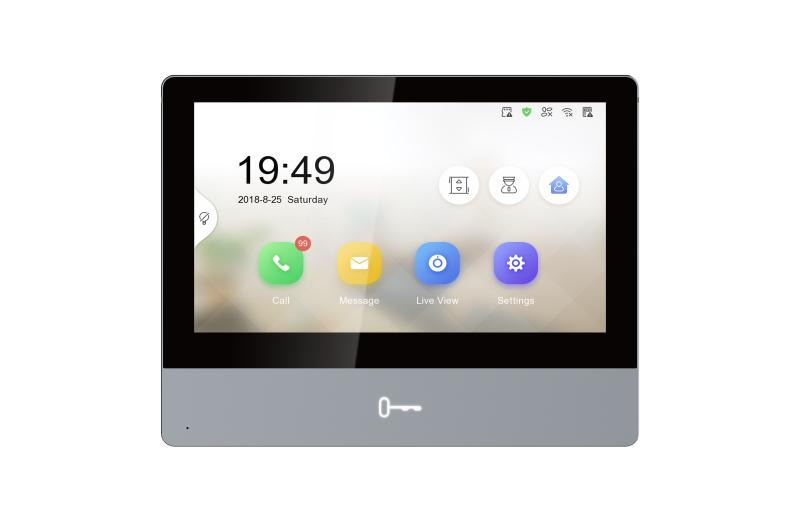

    • Reddot award 2017 winner, 7“ Touch-Screen Indoor Station
    • Wi-Fi, standard PoE/ 12 VDC
    • TF card, max 32G, for capture while video calling
    • 8-ch alarm input , 2 alarm output, 1x485
    • Remote unlocking via the client or the APP
    • Views live videos of door stations and external cameras
    View Less
    View more

    Available models:

    DS-KH8350-WTE1(Europe BV)
    DS-KH8350-TE1(Europe BV)

    Specifikace

    • Display parameters
    • Rozlišení displeje1024 × 600
    • Zobrazení obrazovky7-inch colorful IPS LCD
    • Parametry zvuku
    • Rychlost komprese zvuku64 Kbps
    • Audio Compression StandardG.711 U
    • Zvukový vstupBuilt-in omnidirectional microphone
    • Audio výstupBuilt-in loudspeaker
    • Audio QualityNoise suppression and echo cancellation
    • Všeobecné
    • Power supplyIEEE802.3af, standard PoE 12 VDC/1 A
    • Power consumption≤ 7 W
    • Working temperature-10 °C to 55 °C (14 °F to 131 °F)
    • Working humidity10% to 90%
    • Rozměr (D x Š x H)180 mm × 140 mm × 22.4 mm (7.09" × 5.51" × 0.88")
    • Váhag (with packaging) 355 g (without packaging)
    • Rozměry (Š × V × H)180 mm × 140 mm × 22.4 mm (7.09" × 5.51" × 0.88")
    • Paměť128 MB
    • CertifikaceFCC, IC, CE, C-TICK, ROHS, REACH, WEEE,UL,CB, RCM
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Specifikace

    Display parameters
    Rozlišení displeje
    1024 × 600
    Zobrazení obrazovky
    7-inch colorful IPS LCD
    Parametry zvuku
    Rychlost komprese zvuku
    64 Kbps
    Audio Compression Standard
    G.711 U
    Zvukový vstup
    Built-in omnidirectional microphone
    Audio výstup
    Built-in loudspeaker
    Audio Quality
    Noise suppression and echo cancellation
    Všeobecné
    Power supply
    IEEE802.3af, standard PoE 12 VDC/1 A
    Power consumption
    ≤ 7 W
    Working temperature
    -10 °C to 55 °C (14 °F to 131 °F)
    Working humidity
    10% to 90%
    Rozměr (D x Š x H)
    180 mm × 140 mm × 22.4 mm (7.09" × 5.51" × 0.88")
    Váha
    g (with packaging) 355 g (without packaging)
    Rozměry (Š × V × H)
    180 mm × 140 mm × 22.4 mm (7.09" × 5.51" × 0.88")
    Paměť
    128 MB
    Certifikace
    FCC, IC, CE, C-TICK, ROHS, REACH, WEEE,UL,CB, RCM
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
    Specifikace
    Display parameters
    • Rozlišení displeje1024 × 600
    • Zobrazení obrazovky7-inch colorful IPS LCD
    Parametry zvuku
    • Rychlost komprese zvuku64 Kbps
    • Audio Compression StandardG.711 U
    • Zvukový vstupBuilt-in omnidirectional microphone
    • Audio výstupBuilt-in loudspeaker
    • Audio QualityNoise suppression and echo cancellation
    Všeobecné
    • Power supplyIEEE802.3af, standard PoE 12 VDC/1 A
    • Power consumption≤ 7 W
    • Working temperature-10 °C to 55 °C (14 °F to 131 °F)
    • Working humidity10% to 90%
    • Rozměr (D x Š x H)180 mm × 140 mm × 22.4 mm (7.09" × 5.51" × 0.88")
    • Váhag (with packaging) 355 g (without packaging)
    • Rozměry (Š × V × H)180 mm × 140 mm × 22.4 mm (7.09" × 5.51" × 0.88")
    • Paměť128 MB
    • CertifikaceFCC, IC, CE, C-TICK, ROHS, REACH, WEEE,UL,CB, RCM
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
