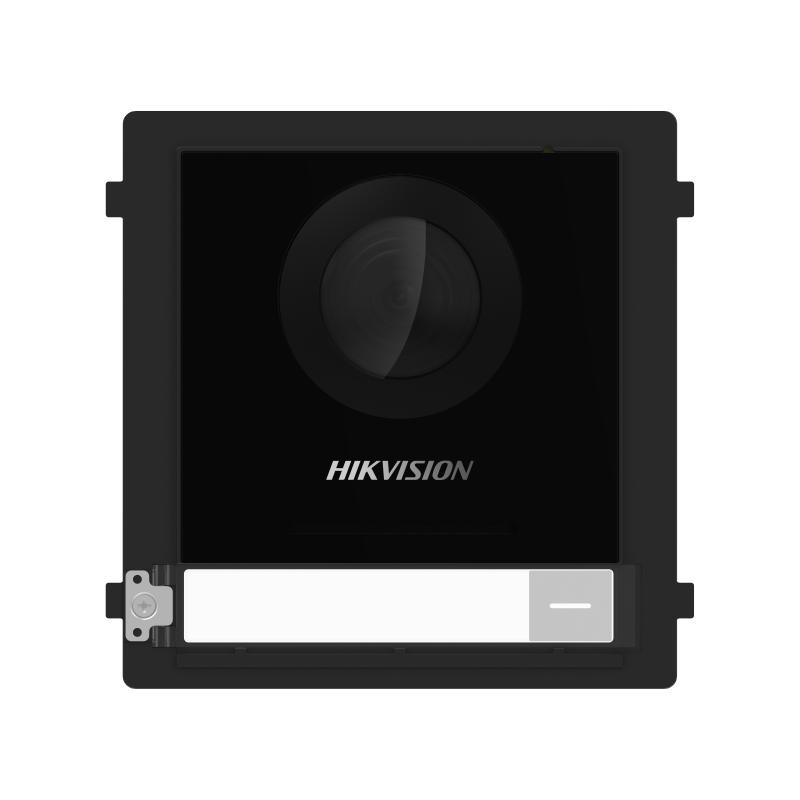

KD8 Series Modular Door Station

  • Modular door station Main unit, needs mounting bracket
  • 2MP HD Camera, Fish eye, IR Supplement
  • 1 Call physical Button, 2 lock relays, 4-ch alarm input
  • Video intercom to indoor station and master station
  • WEB Configuration
  • IP65, 12 VDC or standard PoE
  • Power output for electronic lock, max to 12 V, 500 mA
View Less
View more
Sales Inquiry

Available models:

DS-KD8003-IME1(B)
DS-KD8003-IME1(B)#EU

Specifikace

  • System parameters
  • Operating systemEmbedded Linux operation system
  • ROM32 MB
  • RAM256 MB
  • CPUEmbedded Processor
  • Display parameters
  • Screen sizeNA
  • Provozní metodaNA
  • TypNA
  • ŘešeníNA
  • Parametry videa
  • Supplement lightLow illumination, IR supplement lights
  • Video standardH.264
  • Objektiv1
  • FOVHorizontal: 146°, Vertical: 82°
  • WDRSupport
  • Řešení2 MP
  • Parametry zvuku
  • Audio inputBuilt-in omnidirectional microphone
  • Standard komprese zvukuG.711 U, G.711 A
  • Audio outputBuilt-in loudspeaker
  • Přenosová rychlost komprese zvuku64 Kbps
  • Kvalita zvukuNoise suppression and echo cancellation
  • Nastavení hlasitostiAdjustable
  • Kapacita
  • Kapacita otisku prstu/
  • User capacity2000
  • Kapacita karty6000
  • Kapacita obličejeNA
  • Linked indoor station capacity500
  • Kapacita událostí/
  • Sub door station capacity16
  • Network parameters
  • Communication protocolTCP/IP, RTSP
  • Kabelová síť10/100 Mbps self-adaptive Ethernet
  • Wi-FiNA
  • BluetoothNA
  • 3G/4GNA
  • Rozhraní zařízení
  • Alarm input4 (2 exit buttons and 2 door contacts by default)
  • Network interface1 RJ45
  • TAMPER1
  • Tlačítko Konec2 (2 for lock control)
  • Vstup dveřního kontaktu2
  • RS-4851 (1 for Hikvision's sub module communication)
  • WiegandNA
  • TF karta NA
  • Alarm outputNA
  • Lock control2 (2 relay, max to 30 V, 2 A)
  • USBNA
  • Power interface12 VDC power output (max to 12 V, 500 mA)
  • Two-wire IP interfaceNA
  • Všeobecné
  • Power supply12 VDC/PoE ( IEEE 802.3af)
  • Working temperature-40° C to 60° C (-40° F to 140° F)
  • Working humidity10% to 95%
  • Tlačítko1
  • Ochranná úroveňIP65
  • InstalaceSurface mounting & flush mounting
  • Rozměr (D x Š x H)98 mm × 100 mm × 42 mm (3.86" × 3.94" × 1.65")
  • JazykEnglish,French,Portuguese,Brazilian Portuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovak
  • Indikátor0
  • VáhaWithout package: 0.380 kg With Package: 0.541 kg
  • Baterie/
  • Prostředí aplikaceOutdoor
  • Power consumption≤ 5 W
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
