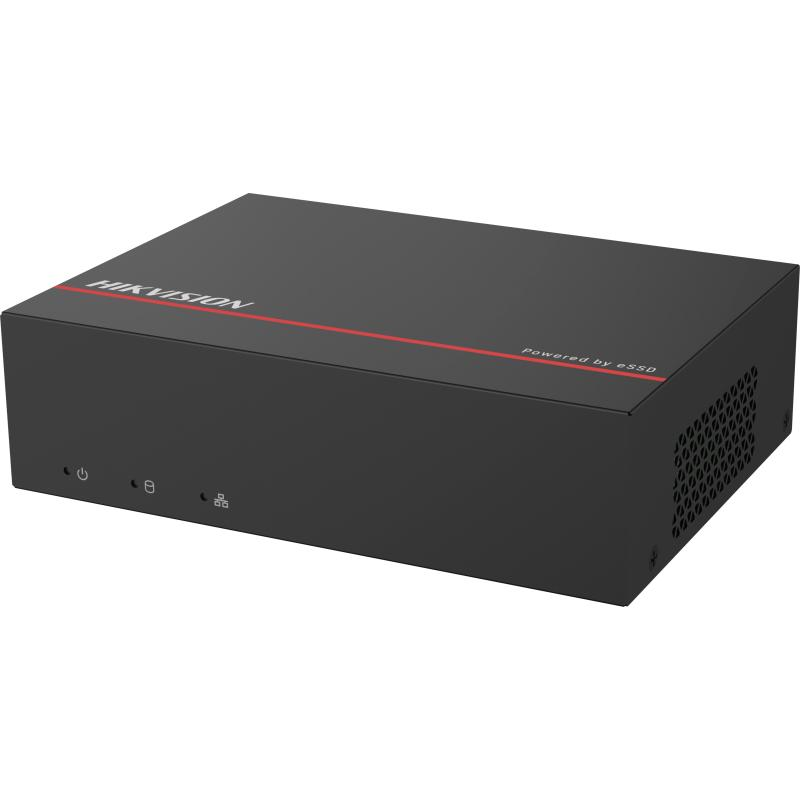

4-ch 5MP 1U H.265 eSSD AcuSense DVR

Powered by M-SATA eSSD technology
Deep learning based human and vehicle targets classification of Motion Detection 2.0
Deep learning-based perimeter protection
Scene-adaptive bitrate control video compression
Up to 8 MP@8 fps encoding capability
Low power consumption
Audio via coaxial cable

View Less

Data Sheet

Available models:

iDS-E04HUHI-XB

Specifikace
Resources
Příslušenství

Data Sheet

Detekce pohybu 2.0
Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;

Ochrana perimetru
Human/Vehicle AnalysisUp to 4-ch

Video and Audio
IP Video Input2-ch Up to 8 MP resolution Support H.265 IP cameras
Analogový video vstup4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input8 MP@15 fps, 8 MP@12.5 fps, 3K@20 fps, 5 MP@20 fps, 5 MP@12.5 fps, 4 MP@30 fps, 4 MP@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps, 720p50, 720p60
AHD Input5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
HDCVI Input8 MP@15 fps, 8 MP@12 fps, 5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
CVBS InputSupport
HDMI Output1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output ModeHDMI/VGA simultaneous output
Zvukový vstup4-ch via coaxial cable
Audio výstup1-ch via HDMI
Synchronous Playback4-ch

Recording
Video kompreseH.265 Pro/H.265
Rozlišení kódování8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/CIF
Snímková frekvenceMain stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF@25 fps (P)/30 fps (N) *: 8 MP@8 fps is only available for channel 1. Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video BitrateAccording to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
Typ streamuVideo, Video & Audio Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.
Audio kompreseG.711u
Audio Bitrate64 Kbps

Síť
Total Bandwidth96 Mbps Incoming bandwidth: 8 Mbps
Vzdálené připojení32
Síťový protokolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
Síťové rozhraní1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface
KapacitaBuilt-in 1024 GB eSSD (960 GB available) Note: M-SATA interface, capable of plugging and upgrading capacity. The device can store about 2 weeks videos for 4-ch analog cameras (default parameters), this estimation is for reference only
Vstup/výstup alarmuOPTIONAL 4/1
USB rozhraníRear panel: 2 × USB 2.0

Všeobecné
Zdroj napájení12 VDC, 1 A
Spotřeba≤ 7.5 W (with eSSD)
Pracovní teplota-10 °C to 45 °C (14 °F to 113 °F)
Pracovní vlhkost10% to 90%
Rozměry (Š × H × V)152 × 113 × 46 mm(6.0 × 4.4 × 1.8 inch)
Váha≤ 0.5 kg (with eSSD, 1.1 lb.)

Detekce pohybu 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;

Ochrana perimetru

Human/Vehicle Analysis

Up to 4-ch

Video and Audio

IP Video Input

2-ch Up to 8 MP resolution Support H.265 IP cameras

Analogový video vstup

4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input

8 MP@15 fps, 8 MP@12.5 fps, 3K@20 fps, 5 MP@20 fps, 5 MP@12.5 fps, 4 MP@30 fps, 4 MP@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps, 720p50, 720p60

AHD Input

5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

HDCVI Input

8 MP@15 fps, 8 MP@12 fps, 5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

CVBS Input

Support

HDMI Output

1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

VGA Output

1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Video Output Mode

HDMI/VGA simultaneous output

Zvukový vstup

4-ch via coaxial cable

Audio výstup

1-ch via HDMI

Synchronous Playback

4-ch

Recording

Video komprese

H.265 Pro/H.265

Rozlišení kódování

8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/CIF

Snímková frekvence

Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF@25 fps (P)/30 fps (N) *: 8 MP@8 fps is only available for channel 1. Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Video Bitrate

According to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.

Typ streamu

Video, Video & Audio Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.

Audio komprese

G.711u

Audio Bitrate

64 Kbps

Síť

Total Bandwidth

96 Mbps Incoming bandwidth: 8 Mbps

Vzdálené připojení

Síťový protokol

TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS

Síťové rozhraní

1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

Kapacita

Built-in 1024 GB eSSD (960 GB available) Note: M-SATA interface, capable of plugging and upgrading capacity. The device can store about 2 weeks videos for 4-ch analog cameras (default parameters), this estimation is for reference only

Vstup/výstup alarmu

OPTIONAL 4/1

USB rozhraní

Rear panel: 2 × USB 2.0

Všeobecné

Zdroj napájení

12 VDC, 1 A

Spotřeba

≤ 7.5 W (with eSSD)

Pracovní teplota

-10 °C to 45 °C (14 °F to 113 °F)

Pracovní vlhkost

10% to 90%

Rozměry (Š × H × V)

152 × 113 × 46 mm(6.0 × 4.4 × 1.8 inch)

Váha

≤ 0.5 kg (with eSSD, 1.1 lb.)
