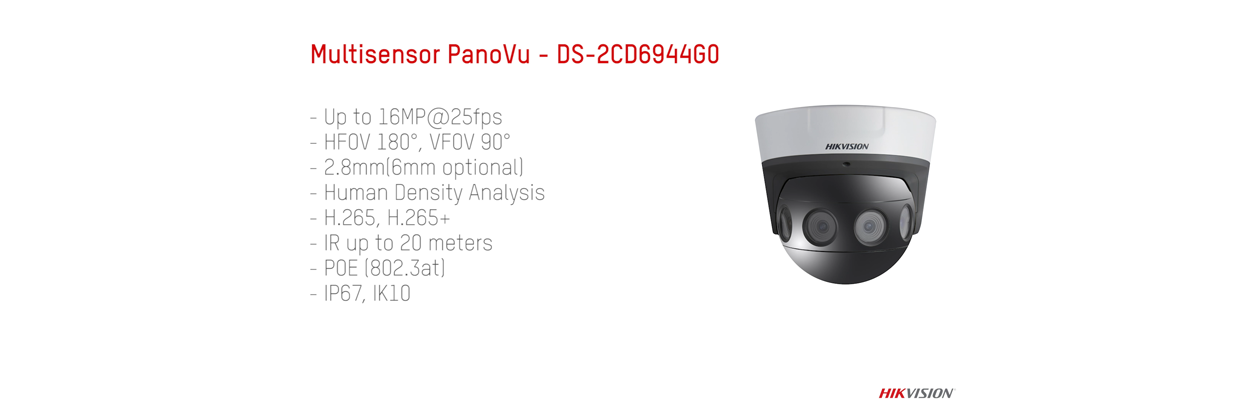

DS-2CD6944G0-IHS(/NFC)

Global

Global - English

Asia

Europe

Oceania

ANZ - English

Latin America

North America

Middle East and Africa

DS-2CD6944G0-IHS(/NFC)

Specifikace
Resources
Příslušenství

Data Sheet

Kamera
Senzor obrazu1/1.8" Progressive Scan CMOS
Max. rozlišení2.8 mm Panorama+ePTZ mode: panorama channel: 1920 × 1080; ePTZ channel: 1920 × 1080 Panorama mode: 4800 × 2688 Original mode: 2688 × 1520 Divided panorama: 2400 × 1344 6 mm Panorama+ePTZ mode: panorama channel: 3072 × 540; ePTZ channel: 1920 × 1080 Panorama mode: 8160 × 1440 Original mode: 2688 × 1520 Divided panorama: 2032 × 1440
Min. osvětleníColor: 0.009 Lux @ (F1.6, AGC ON); B/W: 0.0018 Lux @ (F1.6, AGC ON),0 Lux with IR
Čas závěrky1/25 s to 1/100,000 s
Den & NocIR cut filter. Blue glass module to reduce ghost phenomenon.
Nastavení úhluPan: 0° to 355°, tilt: 0° to 90°

Objektiv
Typ objektivuFixed lens, 2.8 mm/6 mm, four lenses
Focal Length & FOV2.8 mm: horizontal FOV 180°, vertical FOV 90° 6 mm: horizontal FOV 180°, vertical FOV 25°
Držák objektivuM16
OhniskoManual, semi-auto
ClonaF1.4

Iluminátor
Doplňkový typ světlaIR, four IR LEDs
Doplňte rozsah světlaUp to 20 m
IR Wavelength850 nm

Video
Hlavní proud2.8 mm Panorama+ePTZ mode: panorama channel: 50Hz: 25fps (1920 × 1080, 960 × 540), 60Hz: 30fps (1920 × 1080, 960 × 540); ePTZ channel: 50Hz: 25fps (1920 × 1080, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 720) Panorama mode: 50Hz: 25fps (4800 × 2688, 3840 × 2160, 2688 × 1520), 60Hz: 30fps (4800 × 2688, 3840 × 2160, 2688 × 1520) Original mode: 50Hz: 25fps (2688 × 1520), 60Hz: 30fps (2688 × 1520) 6 mm Panorama+ePTZ mode: panorama channel: 50Hz: 25fps (3072 × 540, 2688 × 480, 1920 × 320), 60Hz: 30fps (3072 × 540, 2688 × 480, 1920 × 320); ePTZ channel: 50Hz: 25fps (1920 × 1080, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 720) Panorama mode: 50Hz: 25fps (8160 × 1440, 6720 × 1200, 4800 × 840), 60Hz: 30fps (8160 × 1440, 6720 × 1200, 4800 × 840) Original mode: 50Hz: 25fps (2688 × 1520), 60Hz: 30fps (2688 × 1520)
Vedlejší stream2.8 mm Panorama mode: 50Hz: 25fps (1920 × 1080, 960 × 540), 60Hz: 30fps (1920 × 1080, 960 × 540) 6 mm Panorama mode: 50Hz: 25fps (3072 × 540, 2688 × 480, 1920 × 320), 60Hz: 30fps (3072 × 540, 2688 × 480, 1920 × 320)
Video kompreseMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Přenosová rychlost videa32 Kbps to 16 Mbps
H.264 typBaseline Profile,Main Profile,High Profile
H.265 typMain Profile
Škálovatelné kódování videa (SVC)H.264 encoding
Oříznutí cíleYes (only panorama mode supports)

Zvuk
Audio kompreseG.711/G.722.1/G.726/MP2L2/PCM
Přenosová rychlost zvuku64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
Míra audio vzorů8 kHz/16 kHz/32 kHz/48 kHz
Filtrování šumu prostředíYes

Síť
ProtokolyTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour
Současný živý náhledUp to 20 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK, Ehome
Uživatel/hostitelUp to 32 users. 3 user levels: administrator, operator and user
BezpečnostPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS1.0, TLS1.1
Síťové úložištěNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
KlientiVMS-4200
Webový prohlížečIE8+

Obraz
Nastavení obrazuRotate mode (only the original mode supports), saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Přepínač den/nocDay,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)Digital WDR
Vylepšení obrazuBLC, HLC, 3D DNR, Defog, EIS (only the original mode supports)
Překryvný obrázekLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format

Rozhraní
Ethernet Interface1 RJ45 10 M/100 M/1000 M Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Zabudovaný mikrofonYes
Vestavěný reproduktorYes
Zvuk1 input (line in/mic in), 3.5 mm 3-section connector/2-core terminal block/connector not included, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm 3-section connector/2-core terminal block/connector not included, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Alarm 2 inputs, 2 outputs (max. 24 VDC, 1A)
RS-4851 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset KeyYes
Optická vláknaFC interface, single mode, single fiber, Tx1310nm/1.25G, Rx1550nm/1.25G, up to 20 km

Událost
Základní událostMotion detection (only panorama mode supports), exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

Deep Learning Function
Hustota zalidněníWithout (D) version: Yes (only panorama mode supports) With (D) version: No

Všeobecné
Napájení12 VDC, 1.6 A, max. 24 W, three-core terminal block PoE (802.3at, 42.5 V to 57 V), 0.5 to 0.4 A
MateriálAluminum alloy
Rozměry189.5 × 207.63 × 206.62 mm (7.46" × 8.17" × 8.13")
Rozměr balení340 × 261 × 293 mm (13.4" × 10.3" × 11.5")
VáhaApprox. 3 kg (6.6 lb.)
S váhou baleníApprox. 5 kg (11 lb.)
Podmínky skladování-40 °C to +60 °C (-40 °F to +140 °F), humidity 95% or less (non-condensing)
Spuštění a provozní podmínky-40 °C to +60 °C (-40 °F to +140 °F), humidity 95% or less (non-condensing)
JazykEnglish
Obecné funkceAnti-flicker, heartbeat, mirror (only original mode supports), privacy masks (only original mode supports), password protection, watermark, IP address filter (only original mode supports), pixel counter
OhřívačYes

Schválení
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
BezpečnostUL (UL 60950-1); CE (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
životní prostředíCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
OchranaIK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
