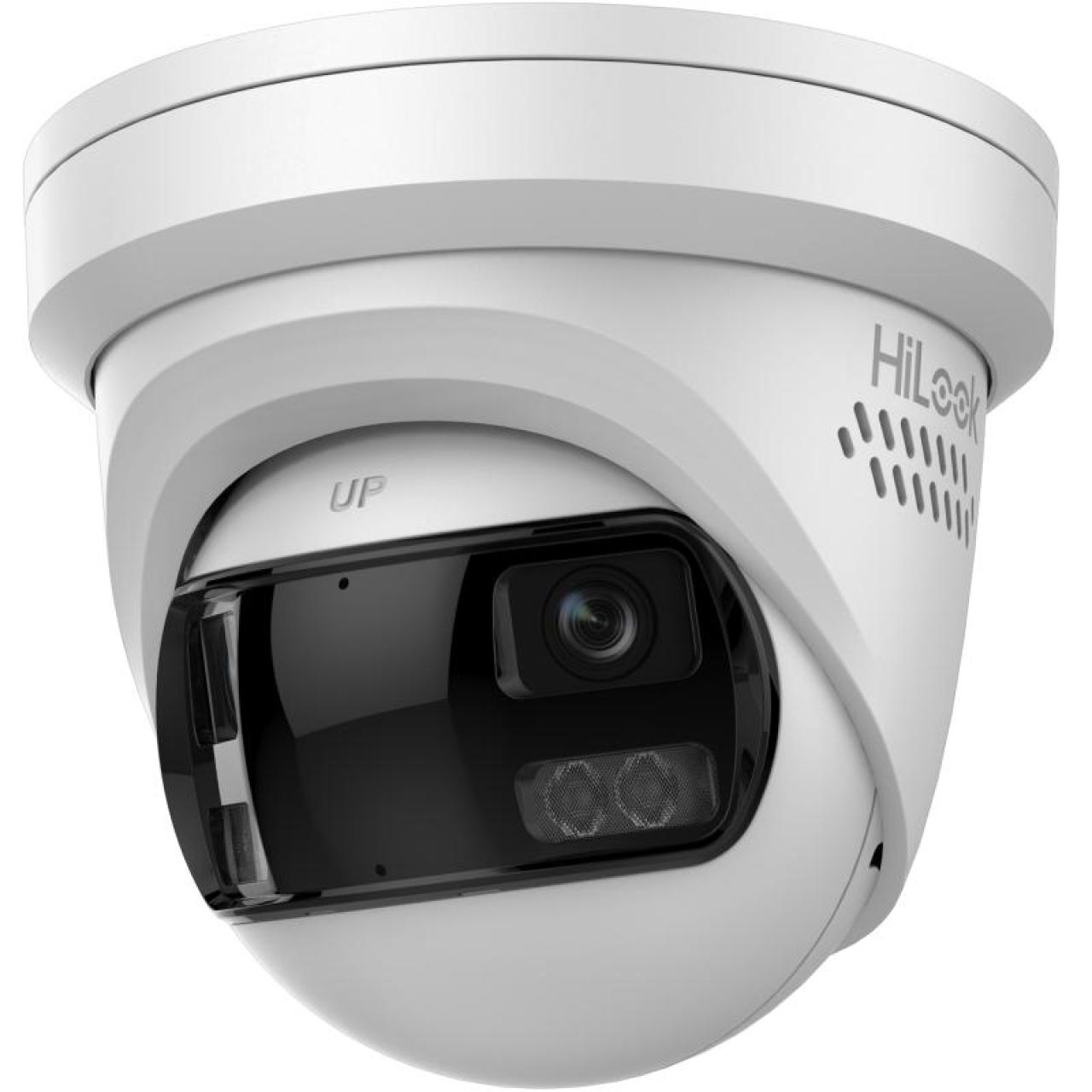

8 MP Dual Lens Stitched Wide Angle Smart Hybrid Light Fixed Turret Network Camera

  • High quality imaging with 8 MP resolution
  • Support Person and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range
  • Efficient H.265+ compression technology
  • Support on-board storage up to 512 GB (SD card slot)
  • Provide real-time security via built-in two-way audio
  • Water and dust resistant (IP67)
  • 180° Field of view
  • Active strobe light and audio alarm to warn intruders off

View Less
View more
Sales Inquiry
Data Sheet

Available models:

IPC-T289PH-MU/SL(2mm)(HIK AUS)
IPC-T289PH-MU/SL(2mm)(HIK AUS)(BLACK)
IPC-T289PH-MU/SL#AU
Sales Inquiry

Specification

  • Camera
  • Image Sensor1/2.4" Progressive Scan CMOS
  • Max. Resolution4256 × 1888
  • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light
  • Shutter Time1 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
  • Lens
  • Lens TypeFixed focal lens, 2 mm
  • Focal Length & FOV2 mm, horizontal FOV 180°, vertical FOV 77°
  • Lens MountM12
  • Iris TypeFixed
  • ApertureF1.6
  • DORI
  • DORI2 mm, D: 50 m, O: 20 m, R: 10 m, I: 5 m
  • Illuminator
  • Supplement Light TypeIR,White Light
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm
  • Video
  • Main Stream50 Hz: 20 fps (4256 × 1888) 60 Hz: 20 fps (4256 × 1888)
  • Sub-Stream50 Hz: 20 fps (1200× 536, 960 × 432) 60 Hz: 20 fps (1200× 536, 960 × 432)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Region of Interest (ROI)1 fixed region for main stream
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Audio
  • Audio TypeMono sound
  • Audio Sampling Rate8 kHz/16 kHz
  • Environment Noise FilteringYes
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
  • Network
  • SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (Profile S, Profile T, Profile G),ISAPI,SDK
  • ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP, HTTPS, DDNS
  • User/HostUp to 32 users 3 user levels: administrator, operator, and user
  • ClientiVMS-4200,Hik-Connect
  • Web BrowserPlug-in required live view: IE 11, Local service: Chrome 80+, Firefox 80+, Edge 89+
  • Image
  • Wide Dynamic Range (WDR)120 dB
  • SNR≥ 52 dB
  • Day/Night SwitchDay,Night,Auto,Schedule
  • Image EnhancementBLC,HLC,3D DNR
  • Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Privacy Mask4 programmable polygon privacy masks
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Built-in MicrophoneYes,1 built-in microphone
  • Built-in SpeakerYes, 1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
  • Reset KeyYes
  • Event
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, strobe light flashing
  • General
  • Power12 VDC ± 25%, 0.83 A, max. 10 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 11.5 W
  • MaterialBase: Metal, cover: Plastic
  • DimensionØ138.3 mm × 115.4 mm (Ø5.4" × 4.5")
  • Package Dimension170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
  • WeightApprox. 790 g (1.7 lb.)
  • With Package WeightApprox. 1100 g (2.4 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • LanguageEnglish, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian
  • General FunctionHeartbeat,anti-banding,password protection,password reset via email
  • Flashing Light/SRB model: Red and Blue Light /SL model: White Light
  • Approval
  • EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
  • Safety CB: IEC 62368-1: 2014+A11, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
  • EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • ProtectionIP67: IEC 60529-2013
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/2.4" Progressive Scan CMOS
Max. Resolution
4256 × 1888
Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light
Shutter Time
1 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2 mm
Focal Length & FOV
2 mm, horizontal FOV 180°, vertical FOV 77°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.6
DORI
DORI
2 mm, D: 50 m, O: 20 m, R: 10 m, I: 5 m
Illuminator
Supplement Light Type
IR,White Light
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 20 fps (4256 × 1888) 60 Hz: 20 fps (4256 × 1888)
Sub-Stream
50 Hz: 20 fps (1200× 536, 960 × 432) 60 Hz: 20 fps (1200× 536, 960 × 432)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Region of Interest (ROI)
1 fixed region for main stream
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Audio
Audio Type
Mono sound
Audio Sampling Rate
8 kHz/16 kHz
Environment Noise Filtering
Yes
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Network
Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View
Up to 6 channels
API
ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP, HTTPS, DDNS
User/Host
Up to 32 users 3 user levels: administrator, operator, and user
Client
iVMS-4200,Hik-Connect
Web Browser
Plug-in required live view: IE 11, Local service: Chrome 80+, Firefox 80+, Edge 89+
Wide Dynamic Range (WDR)
120 dB
SNR
≥ 52 dB
Day/Night Switch
Day,Night,Auto,Schedule
Image Enhancement
BLC,HLC,3D DNR
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask
4 programmable polygon privacy masks
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone
Yes,1 built-in microphone
Built-in Speaker
Yes, 1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
Reset Key
Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage
Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, strobe light flashing
General
Power
12 VDC ± 25%, 0.83 A, max. 10 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 11.5 W
Material
Base: Metal, cover: Plastic
Dimension
Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
Package Dimension
170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Weight
Approx. 790 g (1.7 lb.)
With Package Weight
Approx. 1100 g (2.4 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian
General Function
Heartbeat,anti-banding,password protection,password reset via email
Flashing Light
/SRB model: Red and Blue Light /SL model: White Light
Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Safety
CB: IEC 62368-1: 2014+A11, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Camera
  • Camera
  • Camera
  • Camera
  • Camera
  • Camera
Lens
  • Lens
  • Lens
  • Lens
  • Lens
  • Lens
DORI
  • DORI
Illuminator
  • Illuminator
  • Illuminator
  • Illuminator
  • Illuminator
Video
  • Video
  • Video
  • Video
  • Video
  • Video
  • Video
  • Video
  • Video
  • Video
Audio
  • Audio
  • Audio
  • Audio
  • Audio
  • Audio
Network
  • Network
  • Network
  • Network
  • Network
  • Network
  • Network
  • Network
  • Image
  • Image
  • Image
  • Image
  • Image
  • Image
Interface
  • Interface
  • Interface
  • Interface
  • Interface
  • Interface
Event
  • Event
  • Event
General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
Approval
  • Approval
  • Approval
  • Approval
  • Approval
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
