*Images are for illustrative purposes. Actual product appearance and specifications may vary.
Discontinued

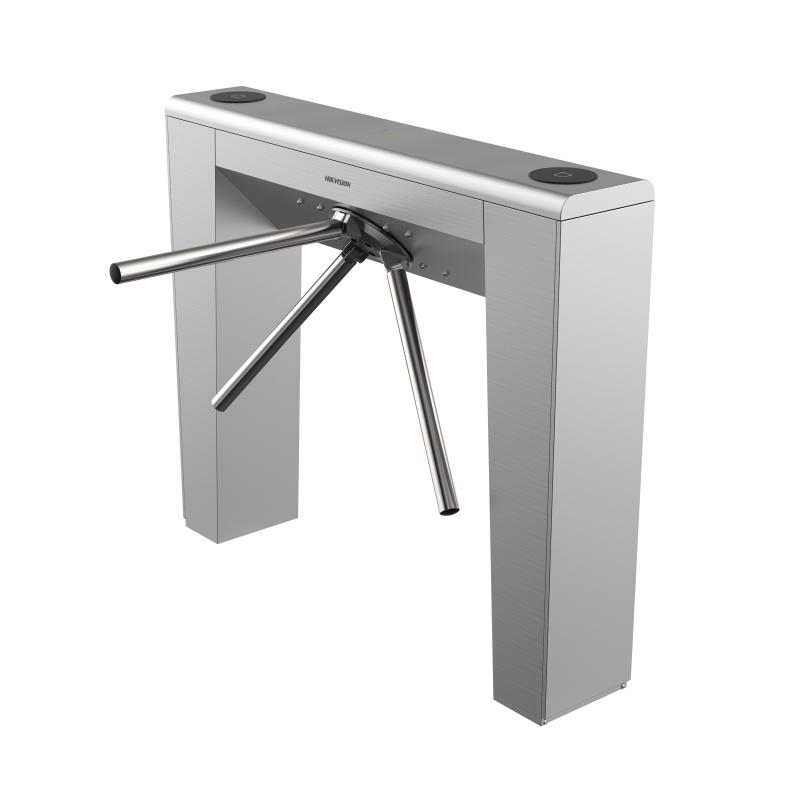

Value Tripod Turnstile

  • Bidirectional (Entering/Exiting) lane.
  • Supports I/O connection for 3rd access system integration.
  • For "Pg" type, the face recognition terminal need purchase separately.
  • Fire alarm passing: When triggered, the arms will be dropped automatically for emergency evacuation.
  • High-brightness LED indicates the entrance/exit and passing status.
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-K3G301LX-R/Pg-Dm55
DS-K3G301LX-R/Dm55
DS-K3G301LX-R/Dm55
DS-K3G301LX Discontinued
Data Sheet

Specification

  • System
  • MotorNA
  • MCBF≥ 2 million times
  • Interface
  • Exit buttonMain: 1 Sub: 1
  • Fire alarm input1
  • Hardware
  • Access controllerNot supplied
  • Function
  • KeyfobNot support
  • General
  • Throughput25 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
  • Lane width550 mm (21.65")
  • Barrier materialSUS304 stainless pipe
  • Pedestal materialSUS304 stainless steel 1.0 mm (mostly)
  • IndicatorLane status indicator except Pg models.
  • Power consumptionStandby: 25 W Working: 35 W Peak: 45 W
  • Working temperature -20 °C to 65 °C (-4 °F to 149 °F)
  • Working humidity0% to 95% (No condensing)
  • Protective levelIPX4
  • DimensionsWithout package: 1200 mm × 233 mm × 1000 mm (47.2" × 9.2" × 39.4") With package: 1350 mm × 410 mm × 1120 mm (53.1" × 16.1" × 44.1")
  • Net: 30.58 kg (67.41 lb); Gross: 37.8 kg (83.33 lb)
  • Approval CE/CB/RoHS/REACH/WEEE
  • Power supply methodPower supply: 100 to 120 VAC~ / 200 to 240 VAC~, 50/60 Hz, 0.5 A to 1 A,Adapter: 100 to 240 VAC~, 50/60 Hz, 0.5 A to 1 A
  • Door open duration5 to 60 sec
  • Power supply for face recognition moduleSupport
  • Configuration
  • Module selectionNO
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

System
Motor
NA
MCBF
≥ 2 million times
Interface
Exit button
Main: 1 Sub: 1
Fire alarm input
1
Hardware
Access controller
Not supplied
Function
Keyfob
Not support
General
Throughput
25 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
Lane width
550 mm (21.65")
Barrier material
SUS304 stainless pipe
Pedestal material
SUS304 stainless steel 1.0 mm (mostly)
Indicator
Lane status indicator except Pg models.
Power consumption
Standby: 25 W Working: 35 W Peak: 45 W
Working temperature
-20 °C to 65 °C (-4 °F to 149 °F)
Working humidity
0% to 95% (No condensing)
Protective level
IPX4
Dimensions
Without package: 1200 mm × 233 mm × 1000 mm (47.2" × 9.2" × 39.4") With package: 1350 mm × 410 mm × 1120 mm (53.1" × 16.1" × 44.1")
Net: 30.58 kg (67.41 lb); Gross: 37.8 kg (83.33 lb)
Approval
CE/CB/RoHS/REACH/WEEE
Power supply method
Power supply: 100 to 120 VAC~ / 200 to 240 VAC~, 50/60 Hz, 0.5 A to 1 A,Adapter: 100 to 240 VAC~, 50/60 Hz, 0.5 A to 1 A
Door open duration
5 to 60 sec
Power supply for face recognition module
Support
Configuration
Module selection
NO
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
System
  • System
  • System
Interface
  • Interface
  • Interface
Hardware
  • Hardware
Function
  • Function
General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
  • General
Configuration
  • Configuration
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.

Firmware

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V1.0.0_250320
Applied to:
DS-K3G301LX-R/Pg-Dm55
DS-K3G301LX-R/Dm55
