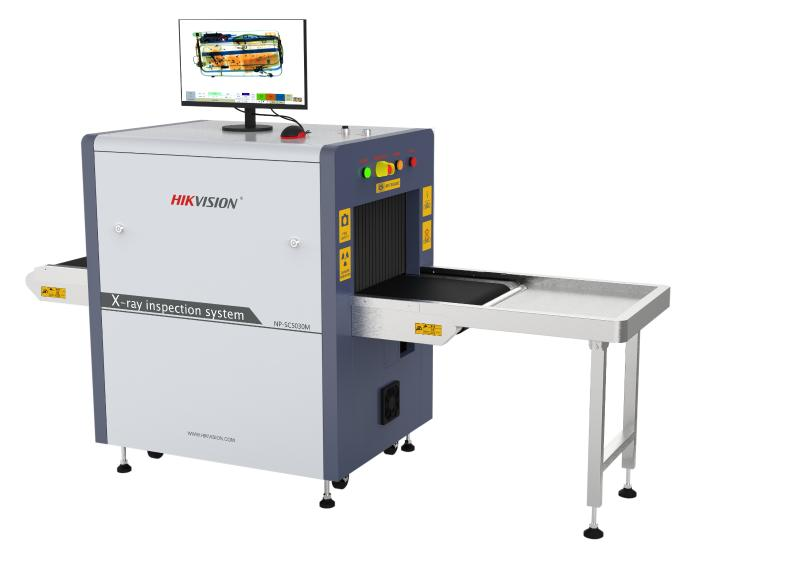

X-Ray Security Inspection System

High performance with HD image, strong penetration, precise recognition
Adopts windows operating system
Energy saving and environment protection with low power consumption
Supports real-time monitoring
Supports multiple image processing mode
Supports POST (power on self-test)
64X zoom in
One-touch power off
Energy-saving working mode for conveyor available
Shock-proof design
User friendly interface for easy operation

View Less

Data Sheet

Available models:

NP-SC5030HM-204D

Specification
Resources
Accessories

Data Sheet

Dimension Parameters
Tunnel Size503 mm Wx306 mm H

Specification Parameters
Conveyor Height663mm
Conveyor speed0.22 m/s
PowerAC220V+10%~-15%，50Hz±3Hz

Performance Parameters
Penetration34mm standard(140KV generator/Default shipping model), 38 mm optional(160KV generator), 40+mm by customize
Wire resolution40AWG
Spatial resolution Vertical: 1.0 mm (0.04") Horizontal: 1.0 mm (0.04")

General Standard
Working Humidity10％~95％No Condensing
Working Temperature5 °C to 40 ° C (41 °F to 104 °F)
Power Consumption0.5 kw
Weight300 kg (661.39 lb)

Radiation Dose
X-ray dose per inspection< 4.5 μGy
X-ray leakage< 1μGy/h

Other Parameters
X-ray generatorAnode Voltage: 140KV standard(Default shipping model), 160 KV optional, 100% Oil Cooling, Single generator, vertical beam direction

General
Dimension (W × H × D)1660 mm x 746 mm x 1165 mm (65.35" x 29.37" x 45.87")

Dimension Parameters

Tunnel Size

503 mm Wx306 mm H

Specification Parameters

Conveyor Height

663mm

Conveyor speed

0.22 m/s

Power

AC220V+10%~-15%，50Hz±3Hz

Performance Parameters

Penetration

34mm standard(140KV generator/Default shipping model), 38 mm optional(160KV generator), 40+mm by customize

Wire resolution

40AWG

Spatial resolution

Vertical: 1.0 mm (0.04") Horizontal: 1.0 mm (0.04")

General Standard

Working Humidity

10％~95％No Condensing

Working Temperature

5 °C to 40 ° C (41 °F to 104 °F)

Power Consumption

0.5 kw

Weight

300 kg (661.39 lb)

Radiation Dose

X-ray dose per inspection

< 4.5 μGy

X-ray leakage

< 1μGy/h

Other Parameters

X-ray generator

Anode Voltage: 140KV standard(Default shipping model), 160 KV optional, 100% Oil Cooling, Single generator, vertical beam direction

General

Dimension (W × H × D)

1660 mm x 746 mm x 1165 mm (65.35" x 29.37" x 45.87")
