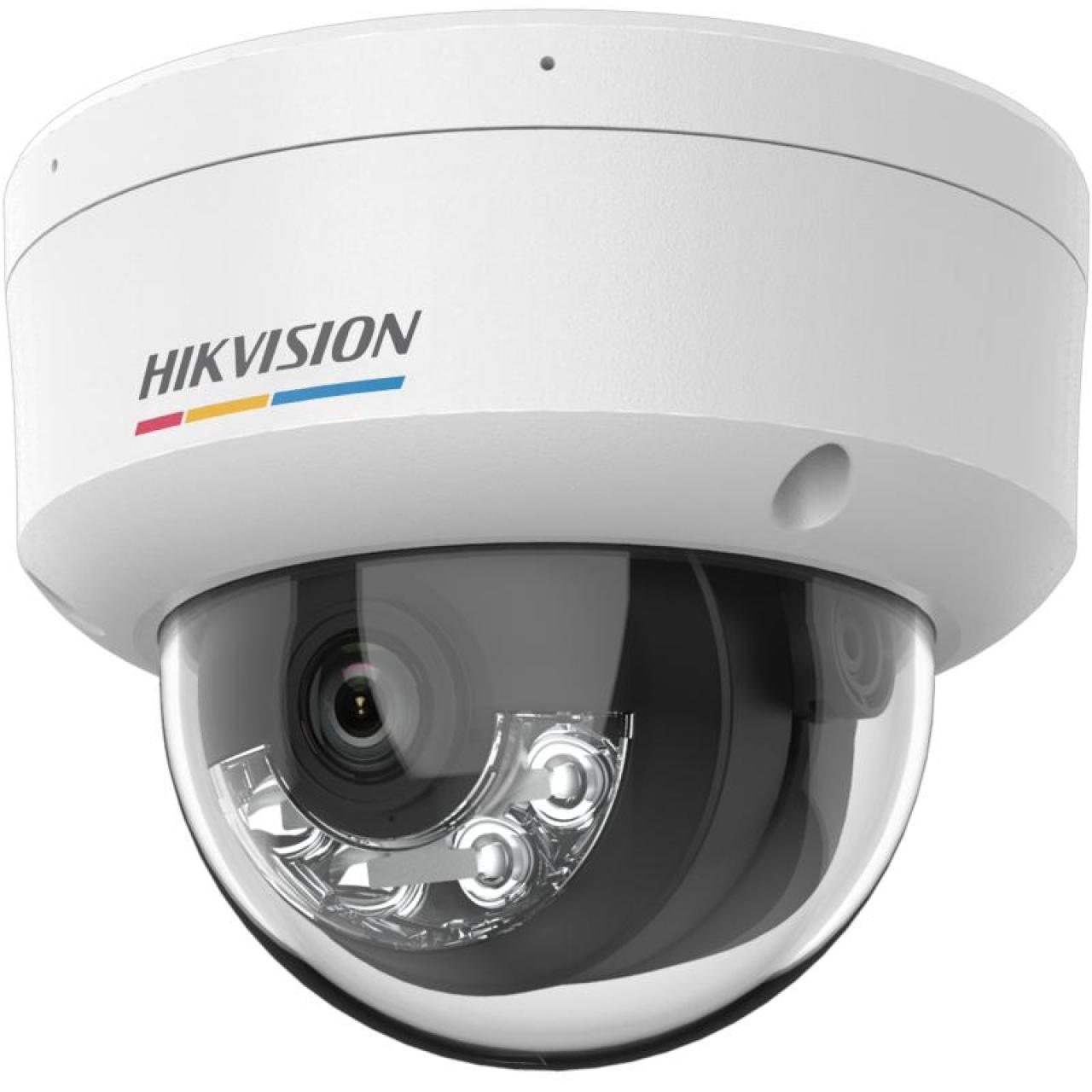

6 MP ColorVu 3.0 Fixed Dome Network Camera

Name: 6 MP ColorVu 3.0 Fixed Dome Network Camera
Brand: Hikvision
Availability: InStock
Rating: 5.0 (1 reviews)

HikAI-ISP for excellent noise reduction effect
Super clear 24/7 colorful imaging with ColorVu 3.0 technology
High quality imaging with 6 MP resolution
Focus on Person and Vehicle classification based on deep learning
Built-in microphone for real-time audio security
Smart Hybrid Light: advanced technology with long range
-F: On-board storage with SD card up to 512 GB
Water and dust resistant (IP67) and vandal resistant (IK08)

View Less

DS-2CD1167G3-LIU 2.8mm#Latam

Especificación
Recursos
Accesorios

Cámara
Sensor de imagen1/2.4" Progressive Scan CMOS
Max. Resolución3200 × 1800
Iluminación mínimaColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Tiempo de obturación1 s to 1/100,000 s
Día y NocheIR cut filter
Ajuste de ánguloPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lente
LenteFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 109°, vertical FOV 60°, diagonal FOV 130° 4 mm, horizontal FOV 89°, vertical FOV 49°, diagonal FOV 105°
Montura del lenteM12
Iris TypeFixed
AperturaF1.0
Depth of Field2.8 mm: 1.9 m to ∞ 4 mm: 2.4 m to ∞

DORI
DORI2.8 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m 4 mm, D: 83 m, O: 33 m, R: 16 m, I: 8 m

Iluminador
Tipo de luz suplementariaIR,White Light
Rango de luz suplementariaUp to 30 m
Luz de suplemento inteligenteYes
IR Wavelength850 nm

Vídeo
Main stream50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
Compresión de videoMain stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Vídeo bitrate32 Kbps to 16 Mbps
Tipo H.264Baseline Profile,Main Profile,High Profile
Tipo H.265Main Profile
Bit Rate ControlCBR,VBR
Codificación de video escalable (SVC)H.264 and H.265 encoding
Región de interés (ROI)1 fixed region for main stream and sub-stream

Audio
Tipo de audioMono sound
Compresión de audioG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
Velocidad de bits de audio64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Frecuencia de muestreo de audio8 kHz/16 kHz
Filtro de ruido ambientalYes

Red
ProtocolosTCP/IP;ICMP;DHCP;DNS;HTTP;RTP;RTSP;RTCP;NTP;IPv6;IGMP;UDP;QoS;SMTP;UPnP
Vista en vivo simultáneaUp to 6 channels
APIONVIF;ISAPI;Hikvision SDK
Usuario/operadorUp to 32 users 3 user levels: administrator, operator, and user
SeguridadPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
ClienteiVMS-4200;Hik-Connect
Navegador webPlug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Imagen
Configuración de imagenRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Interruptor día/nocheDay,Night,Auto,Schedule
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Mejora de la imagenBLC,HLC,3D DNR
Máscara de privacidad4 programmable polygon privacy masks

Transducer
Transducer TypeNA
Detection AngleNA
Rango de detecciónNA

Interfaz
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Micrófono incorporadoYes,1 built-in microphone
Altavoz incorporadoNA
AudioNA
AlarmaNA
Reset Key-F: Yes

Evento
Evento BásicoMotion detection (support alarm triggering by specified target types (person and vehicle)), video tampering alarm, exception
Linkage-LUF: Upload to memory card, upload to FTP, trigger recording, notify surveillance center, send email, trigger capture-LU: Upload to FTP, notify surveillance center, send email, trigger capture

Deep Learning Function
Perimeter Protection Line crossing, Intrusion, Support alarm triggering by specified target types (human and vehicle)

General
alimentación 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W
Material Base: metal, cover: plastic
DimensiónØ121.5 mm × 97.6 mm (Ø4.78" × 3.84")
Dimensión del paquete150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
Approx. 550 g (1.2 lb.)
Con peso del paqueteApprox. 800 g (1.8 lb.)
Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
IdiomaEnglish, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
Función generalHeartbeat,anti-banding,mirror,password protection,password reset via email
Luz intermitenteNA

Certificaciones
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
SeguridadCB: IEC 62368-1: 2014+A11
AmbienteCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
ProtecciónIP67: IEC 60529-2013,IK08: IEC 62262:2002

Cámara

Sensor de imagen

1/2.4" Progressive Scan CMOS

Max. Resolución

3200 × 1800

Iluminación mínima

Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light

Tiempo de obturación

1 s to 1/100,000 s

Día y Noche

IR cut filter

Ajuste de ángulo

Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lente

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 109°, vertical FOV 60°, diagonal FOV 130° 4 mm, horizontal FOV 89°, vertical FOV 49°, diagonal FOV 105°

Montura del lente

M12

Iris Type

Fixed

Apertura

F1.0

Depth of Field

2.8 mm: 1.9 m to ∞ 4 mm: 2.4 m to ∞

DORI

2.8 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m 4 mm, D: 83 m, O: 33 m, R: 16 m, I: 8 m

Iluminador

Tipo de luz suplementaria

IR,White Light

Rango de luz suplementaria

Up to 30 m

Luz de suplemento inteligente

Yes

IR Wavelength

850 nm

Vídeo

Main stream

50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-stream

50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

Compresión de video

Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG

Vídeo bitrate

32 Kbps to 16 Mbps

Tipo H.264

Baseline Profile,Main Profile,High Profile

Tipo H.265

Main Profile

Bit Rate Control

CBR,VBR

Codificación de video escalable (SVC)

H.264 and H.265 encoding

Región de interés (ROI)

1 fixed region for main stream and sub-stream

Audio

Tipo de audio

Mono sound

Compresión de audio

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3

Velocidad de bits de audio

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Frecuencia de muestreo de audio

8 kHz/16 kHz

Filtro de ruido ambiental

Yes

Red

Protocolos

TCP/IP;ICMP;DHCP;DNS;HTTP;RTP;RTSP;RTCP;NTP;IPv6;IGMP;UDP;QoS;SMTP;UPnP

Vista en vivo simultánea

Up to 6 channels

API

ONVIF;ISAPI;Hikvision SDK

Usuario/operador

Up to 32 users 3 user levels: administrator, operator, and user

Seguridad

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Cliente

iVMS-4200;Hik-Connect

Navegador web

Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Imagen

Configuración de imagen

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Interruptor día/noche

Day,Night,Auto,Schedule

Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Mejora de la imagen

BLC,HLC,3D DNR

Máscara de privacidad

4 programmable polygon privacy masks

Transducer

Transducer Type

Detection Angle

Rango de detección

Interfaz

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Micrófono incorporado

Yes,1 built-in microphone

Altavoz incorporado

Audio

Alarma

Reset Key

-F: Yes

Evento

Evento Básico

Motion detection (support alarm triggering by specified target types (person and vehicle)), video tampering alarm, exception

Linkage

-LUF: Upload to memory card, upload to FTP, trigger recording, notify surveillance center, send email, trigger capture-LU: Upload to FTP, notify surveillance center, send email, trigger capture

Deep Learning Function

Perimeter Protection

Line crossing, Intrusion, Support alarm triggering by specified target types (human and vehicle)

General

alimentación

12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W

Material

Base: metal, cover: plastic

Dimensión

Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")

Dimensión del paquete

150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")

Approx. 550 g (1.2 lb.)

Con peso del paquete

Approx. 800 g (1.8 lb.)

Condiciones de almacenaje

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Condiciones de inicio y funcionamiento

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Idioma

English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German

Función general

Heartbeat,anti-banding,mirror,password protection,password reset via email

Luz intermitente

Certificaciones

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021

Seguridad

CB: IEC 62368-1: 2014+A11

Ambiente

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Protección

IP67: IEC 60529-2013,IK08: IEC 62262:2002
