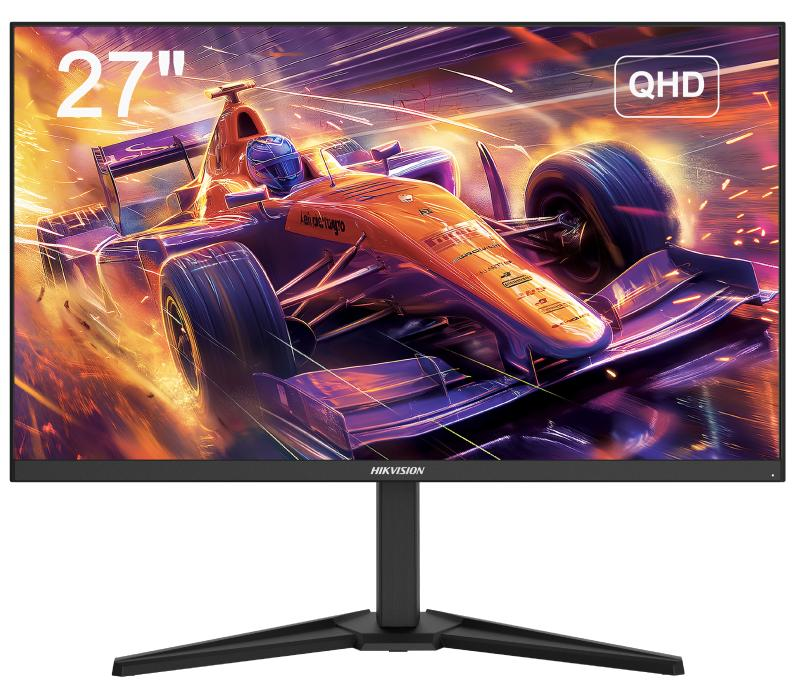

27 inch QHD 180Hz IPS Gaming monitor，HAS stand

IPS technology , 178° ultra-wide view screen
8 bit LVDS QHD (2560 × 1440 ) display.
Ultra-thin device body with ultra-thin border for 3 sides.
Max 180 Hz refresh rate, more fluid and life-like video.
Low blue light design for eye care.
Dual interface of HDMI and DP.
Support VESA wall mount.

View Less

Data Sheet

Available models:

DS-D5027Q3-4P6

DS-D5027Q3-4P6 ^Discontinued

Specification
Resources
Accessories

Data Sheet

Display
Screen Size27 inch
Active Display Area596.74mm × 335.66mm
Resolution2560 × 1440
BacklightE-LED
Pixel Pitch0.2331mm × 2331mm
Brightness350 cd/m²(MAX)
Viewing Angle178° (H) / 178° (V)
Color Depth8 bit ,16.7 M
Contrast Ratio1000 : 1
Response TimeMPRT 1ms
Refresh Rate180Hz（MAX）
HazeHaze 25%, 3H
Reliability7 × 16H
Color Gamut95% DCI-P3

Interface
Video & Audio InputHDMI 2.0 × 1, DP 1.4 × 1
Video & Audio OutputAudio Out x 1
Data Transmission InterfaceNone
Control InterfaceNone
SpeakerNone

Power
Power SupplyDC 12V, 4.0A
Power Consumption≤ 48 W
Standby Consumption≤ 0.5 W

Working Environment
Working Temperature0℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity20% to 80% RH (Non-Condensing)
Storage Temperature-10 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
Storage Humidity20% to 80% RH (Non-Condensing)

General
Casing MaterialPlastic
VESA100 mm × 100 mm (4 - M4 × 6 mm)
Bezel Width4.53 mm (left/right), 4.78mm(top), 19.15 mm (bottom)
Product Dimensions (W × H × D)With base: 619.05 (W) mm × 543.88 (H) mm × 213.30(D) mm (24.37 (W) × 21.41 (H) × 8.40 (D)) inch Without base: 493.26(W) mm × 290.14 (H) mm × 42.68 (D) mm (24.37 (W) × 14.47 (H) × 1.98 (D)) inch
Package Dimensions (W × H × D)692 (W) mm × 468 (H) mm × 169 (D) mm (27.24 (W) × 18.43 (H) × 6.65 (D) ) inch
Net Weight5.8 ± 0.5 kg （12.79 ± 1.1 lb）
Gross Weight6.9 ± 0.5 kg (15.2 ± 1.1 lb )
Packing ListMonitor × 1, Base component × 1, Power adapter (12 V, 4 A) × 1, DP cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1
RemarksThe base is included by default. The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information

Bracket
Modular BracketNA

Display

Screen Size

27 inch

Active Display Area

596.74mm × 335.66mm

Resolution

2560 × 1440

Backlight

E-LED

Pixel Pitch

0.2331mm × 2331mm

Brightness

350 cd/m²(MAX)

Viewing Angle

178° (H) / 178° (V)

Color Depth

8 bit ,16.7 M

Contrast Ratio

1000 : 1

Response Time

MPRT 1ms

Refresh Rate

180Hz（MAX）

Haze

Haze 25%, 3H

Reliability

7 × 16H

Color Gamut

95% DCI-P3

Interface

Video & Audio Input

HDMI 2.0 × 1, DP 1.4 × 1

Video & Audio Output

Audio Out x 1

Data Transmission Interface

None

Control Interface

None

Speaker

None

Power

Power Supply

DC 12V, 4.0A

Power Consumption

≤ 48 W

Standby Consumption

≤ 0.5 W

Working Environment

Working Temperature

0℃ to 40 ℃ (32 ℉ to 104 ℉)

Working Humidity

20% to 80% RH (Non-Condensing)

Storage Temperature

-10 ℃ to 60 ℃ (-4 ℉ to 140 ℉)

Storage Humidity

20% to 80% RH (Non-Condensing)

General

Casing Material

Plastic

VESA

100 mm × 100 mm (4 - M4 × 6 mm)

Bezel Width

4.53 mm (left/right), 4.78mm(top), 19.15 mm (bottom)

Product Dimensions (W × H × D)

With base: 619.05 (W) mm × 543.88 (H) mm × 213.30(D) mm (24.37 (W) × 21.41 (H) × 8.40 (D)) inch Without base: 493.26(W) mm × 290.14 (H) mm × 42.68 (D) mm (24.37 (W) × 14.47 (H) × 1.98 (D)) inch

Package Dimensions (W × H × D)

692 (W) mm × 468 (H) mm × 169 (D) mm (27.24 (W) × 18.43 (H) × 6.65 (D) ) inch

Net Weight

5.8 ± 0.5 kg （12.79 ± 1.1 lb）

Gross Weight

6.9 ± 0.5 kg (15.2 ± 1.1 lb )

Packing List

Monitor × 1, Base component × 1, Power adapter (12 V, 4 A) × 1, DP cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1

Remarks

The base is included by default. The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information

Bracket

Modular Bracket
