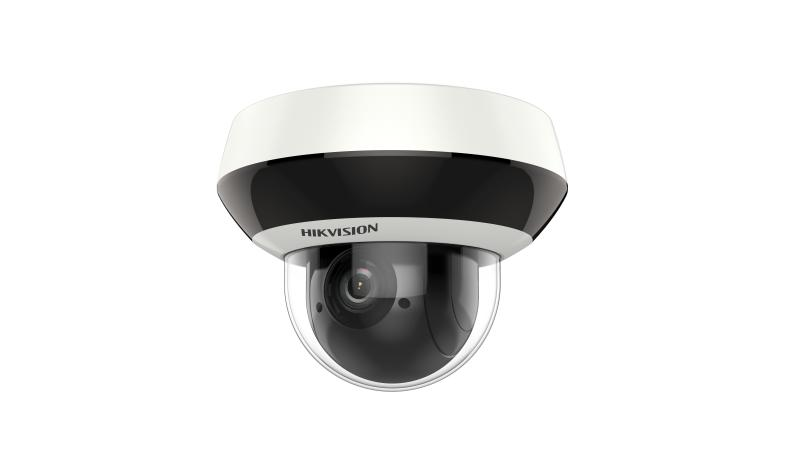

2-inch 2 MP 4X Powered by DarkFighter IR Network Speed Dome

High quality imaging with 2 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back lighting due to 120 dB WDR technology
Pan and tilt ability enables camera to monitor zones of interest
4x optical zoom allows for closer viewing of subjects in expansive areas
Up to 20m IR range ensures safety at night.

View Less

Available models:

DS-2DE2A204IW-DE3(2.8-12mm)

DS-2DE2A204IW-DE3(2.8-12mm)(C)

DS-2DE2A204IW-DE3

EOL

Specification
Resources
Accessories

Lens
FOVHorizontal field of view: 100.5° to 32.6° (Wide-Tele) Vertical field of view: 52.8° to 18.3° (Wide-Tele) Diagonal field of view: 120.2° to 37.5° (Wide-Tele)
Zoom SpeedApprox. 2 s (optical lens, wide-tele)
Working Distance10 mm to 1500 mm (wide-tele)
Aperture RangeF1.6 to F2.7
Focal Length2.8 mm to 12 mm, 4× optical zoom

Image Enhancement3D DNR, EIS, Regional Exposure, Regional Focus
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Max. Resolution1920 × 1080
Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Third Stream50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Network
Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
APIOpen-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users 3 levels: Administrator, Operator and User
ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web BrowserIE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51, Safari 8.0+
Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Alarm LinkageAlarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Interface
Audio Input1-ch audio input (mic in/line in) 1 built-in microphone
Audio Output1-ch audio output (line out) 1 built-in microphone
Network Interface1 RJ45 10 M/100 M Ethernet, PoE

Compression Standard
H.264+Yes
H.265+Yes
H.264 TypeBaseline Profile/Main Profile/High Profile
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
Video Bitrate32 Kbps to 16384 Kbps
Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bitrate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)
SVCYes

Camera Module
Image Sensor1/3" progressive scan CMOS
Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
GainAuto/Manual
Shutter Time1/1 s to 1/30,000 s
Day & NightIR Cut Filter
Digital Zoom16×
Privacy Mask24 programmable privacy masks
Focus ModeAuto/Semi-automatic/Manual
WDR120 dB WDR

Supplement Light
IR Distance20 m
Smart IRYes

PTZ
Movement Range (Pan)0° to 355°
Pan SpeedConfigurable, from 0.1°/s to 100°/s, Preset speed: 100°/s
Movement Range (Tilt)From 0° to 90°
Tilt SpeedConfigurable, from 0.1°/s to 100°/s Preset Speed: 100°/s
Proportional ZoomYes
Presets300
Power-off MemoryYes

Smart Features
Basic Event DetectionMotion Detection, Video Tampering Detection, Exception
Smart DetectionFace Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection
Smart RecordANR (Automatic Network Replenishment), Dual-VCA
ROIMain stream, sub-stream, and third stream respectively support four fixed areas.

General
MaterialAluminum alloy, PC, PC+ABS
DimensionsΦ 130.7 mm × 101.7 mm (Φ 5.15" × 4.00")
WeightApprox. 0.53 kg (1.17 lb)
Protection LevelIP66 Standard, IK 10, Surge Protection, ±2kV Line to Gnd, ±1kV Line to Line, IEC61000-4-5
Power12 VDC (Max. 10.9 W, including Max. 4.2 W for IR) PoE 802.3af (Max. 12.2 W, including Max. 4.2 W for IR)
Working Temperature-20°C to 60°C (-4°F to 140°F)
Working Humidity≤ 90%
