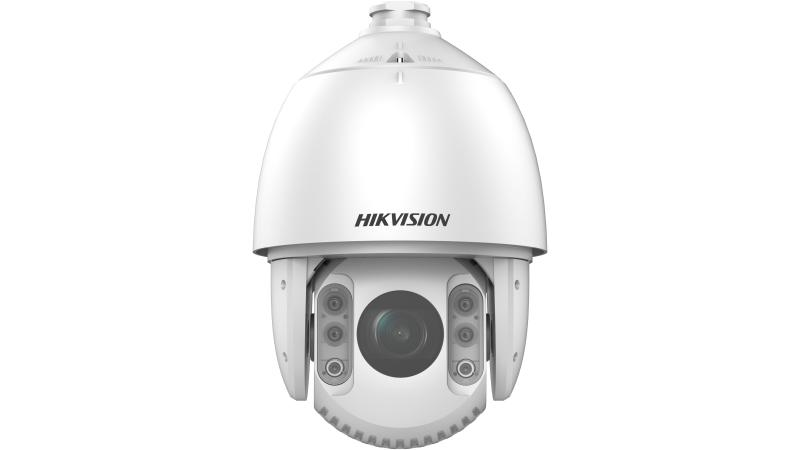

7-inch 2 MP 32X Powered by DarkFighter IR Network Speed Dome

  • 1/2.8" Progressive Scan CMOS
  • High quality imaging with 2 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • 32× optical zoom, 16× digital zoom
  • WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure, Regional Focus, Rapid Focus
  • Up to 200 m IR distance
  • Accurate human and vehicle target classification, alarm, and linked tracking based on deep learning algorithm
  • Face capture: Up to 5 faces captured at the same time
View Less
View more

Available models:

DS-2DE7232IW-AE(S5)

Specification

  • Camera
  • Image Sensor1/2.8" progressive scan CMOS
  • Max. Resolution1920 × 1080
  • Min. Illumination0 Lux with IR,color: 0.005Lux @ (F1.2,AGC ON) B/W: 0.001Lux @ (F1.2, AGC ON)
  • Shutter Speed1/1s-1/30000s
  • Day & NightICR
  • Zoom16x digital
  • Slow Shutteryes
  • Optical Zoom32x
  • Lens
  • Focal Length4.8 mm to 153 mm, 32× Optical
  • FOVHorizontal field of view: 58.4° to 2.14° (wide-tele), Vertical field of view: 33.8° to 1.2° (wide-tele), Diagonal field of view: 65.6° to 2.46° (wide-tele)
  • Focussemi-auto||manual||auto
  • ApertureF1.2
  • Zoom Speedapprox.4.2s
  • Illuminator
  • Supplement Light RangeIR distance: 200 m
  • PTZ
  • Movement Range (Pan)360°
  • Movement Range (Tilt)-15° to 90° (auto flip)
  • Pan Speedpan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
  • Tilt Speedtilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
  • Proportional Panyes
  • Presets300
  • Preset Freezingyes
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans
  • Park Actionpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
  • 3D Positioningyes
  • PTZ Status Displayyes
  • Scheduled Taskpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
  • Power-off Memoryyes
  • Video
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288); 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video CompressionH.265||H.264||MJPEG
  • Video Bit Rate32 kbps to 16384 kbps
  • H.264 TypeBaseline Profile||Main Profile||High Profile||baseline profile||main profile||high profile
  • H.265 TypeMain Profile||main profile
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)8 fixed regions for each stream
  • Audio
  • Audio CompressionG.711alaw||G.711ulaw||G.722.1||G.726||MP2L2||PCM
  • Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps||192kbps
  • Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
  • Environment Noise Filteringyes
  • Network
  • ProtocolsIPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour
  • Simultaneous Live View20
  • APIISAPI||Hikvision SDK||Hik-Connect||ONVIF (Profile S, Profile G, Profile T)||ISUP
  • Smooth Streamingyes
  • User/Host32
  • SecurityAuthenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
  • Network StorageNAS (NFS, SMB/ CIFS)|| ANR||ANR
  • ClientiVMS-4200||Hik-Connect
  • Web BrowserIE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+
  • Image
  • Image Settingssaturation||brightness||contrast||sharpness
  • Day/Night Switchday, night, auto, scheduled-switch
  • Wide Dynamic Range (WDR)120 dB
  • SNR>52dB
  • Defogyes
  • Image StabilizationEIS
  • Image EnhancementBLC, HLC, 3D DNR
  • Privacy Maskup to 24 masks||polygon region ||mosaic mask ||mask color configurable
  • Regional Focusyes
  • Regional Exposureyes
  • Interface
  • Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
  • On-board Storagesupport microSD/microSDHC/microSDXC cards||up to 256 GB
  • Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
  • Alarm2 alarm inputs, 1 alarm output
  • Resetyes
  • Event
  • Basic Eventaudio exception||motion detection||alarm input||alarm output||video tampering alarm||exception
  • Smart Eventintrusion detection||line crossing detection||region entrance detection||region exiting detection||unattended baggage detection||object removal detection
  • Linkagepreset||patrol scan||pattern scan||memory card video recording||alarm output||sending email||notify surveillance center|| upload to FTP||smart tracking
  • Smart Trackingmanual tracking||event tracking||auto-tracking
  • Deep Learning Function
  • Face Captureyes
  • General
  • Power24 VAC, Hi-PoE
  • DimensionΦ 220 mm × 353.4 mm (Φ 8.66" × 13.91")
  • WeightApprox. 5 kg (11.02 lb.)
  • MaterialADC 12, PC, PC+10%GF
  • Operating Conditionhumidity lower than 90%RH ||temperature: -30℃ to 65℃ (-22°F to 149°F)
  • DemistDemist by heating the glass
  • Power Consumption and CurrentMax. 42 W, including max. 10 W for heater and max. 18 W for supplement light
  • Approval
  • ProtectionIP66 Standard, IK10 (excluding glass window) , 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Specification

Specification
Camera
  • Image Sensor1/2.8" progressive scan CMOS
  • Max. Resolution1920 × 1080
  • Min. Illumination0 Lux with IR,color: 0.005Lux @ (F1.2,AGC ON) B/W: 0.001Lux @ (F1.2, AGC ON)
  • Shutter Speed1/1s-1/30000s
  • Day & NightICR
  • Zoom16x digital
  • Slow Shutteryes
  • Optical Zoom32x
Lens
  • Focal Length4.8 mm to 153 mm, 32× Optical
  • FOVHorizontal field of view: 58.4° to 2.14° (wide-tele), Vertical field of view: 33.8° to 1.2° (wide-tele), Diagonal field of view: 65.6° to 2.46° (wide-tele)
  • Focussemi-auto||manual||auto
  • ApertureF1.2
  • Zoom Speedapprox.4.2s
Illuminator
  • Supplement Light RangeIR distance: 200 m
PTZ
  • Movement Range (Pan)360°
  • Movement Range (Tilt)-15° to 90° (auto flip)
  • Pan Speedpan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
  • Tilt Speedtilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
  • Proportional Panyes
  • Presets300
  • Preset Freezingyes
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans
  • Park Actionpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
  • 3D Positioningyes
  • PTZ Status Displayyes
  • Scheduled Taskpreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
  • Power-off Memoryyes
Video
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288); 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video CompressionH.265||H.264||MJPEG
  • Video Bit Rate32 kbps to 16384 kbps
  • H.264 TypeBaseline Profile||Main Profile||High Profile||baseline profile||main profile||high profile
  • H.265 TypeMain Profile||main profile
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)8 fixed regions for each stream
Audio
  • Audio CompressionG.711alaw||G.711ulaw||G.722.1||G.726||MP2L2||PCM
  • Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps||192kbps
  • Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
  • Environment Noise Filteringyes
Network
  • ProtocolsIPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour
  • Simultaneous Live View20
  • APIISAPI||Hikvision SDK||Hik-Connect||ONVIF (Profile S, Profile G, Profile T)||ISUP
  • Smooth Streamingyes
  • User/Host32
  • SecurityAuthenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
  • Network StorageNAS (NFS, SMB/ CIFS)|| ANR||ANR
  • ClientiVMS-4200||Hik-Connect
  • Web BrowserIE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+
  • Image Settingssaturation||brightness||contrast||sharpness
  • Day/Night Switchday, night, auto, scheduled-switch
  • Wide Dynamic Range (WDR)120 dB
  • SNR>52dB
  • Defogyes
  • Image StabilizationEIS
  • Image EnhancementBLC, HLC, 3D DNR
  • Privacy Maskup to 24 masks||polygon region ||mosaic mask ||mask color configurable
  • Regional Focusyes
  • Regional Exposureyes
Interface
  • Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
  • On-board Storagesupport microSD/microSDHC/microSDXC cards||up to 256 GB
  • Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
  • Alarm2 alarm inputs, 1 alarm output
  • Resetyes
Event
  • Basic Eventaudio exception||motion detection||alarm input||alarm output||video tampering alarm||exception
  • Smart Eventintrusion detection||line crossing detection||region entrance detection||region exiting detection||unattended baggage detection||object removal detection
  • Linkagepreset||patrol scan||pattern scan||memory card video recording||alarm output||sending email||notify surveillance center|| upload to FTP||smart tracking
  • Smart Trackingmanual tracking||event tracking||auto-tracking
Deep Learning Function
  • Face Captureyes
General
  • Power24 VAC, Hi-PoE
  • DimensionΦ 220 mm × 353.4 mm (Φ 8.66" × 13.91")
  • WeightApprox. 5 kg (11.02 lb.)
  • MaterialADC 12, PC, PC+10%GF
  • Operating Conditionhumidity lower than 90%RH ||temperature: -30℃ to 65℃ (-22°F to 149°F)
  • DemistDemist by heating the glass
  • Power Consumption and CurrentMax. 42 W, including max. 10 W for heater and max. 18 W for supplement light
Approval
  • ProtectionIP66 Standard, IK10 (excluding glass window) , 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
