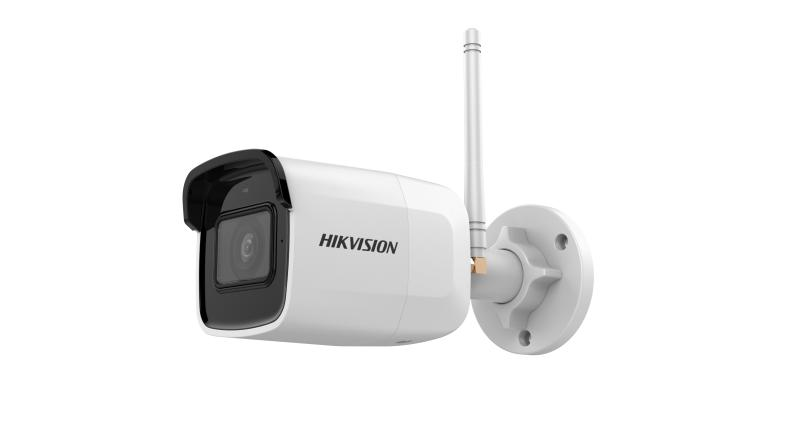

2 MP Outdoor Fixed Bullet Network Camera with Build-in Mic

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology
Clear imaging even with strong back lighting thanks to DWDR technology
Up to 128 GB SD card slot for storage
Built-in microphone for real-time audio security
Wi-Fi connection with HikConnect directly is not possible
Water and dust resistant (IP66)

View Less

Available models:

DS-2CD2021G1-IDW1(2.8mm)

DS-2CD2021G1-IDW1(2.8mm)(D)

DS-2CD2021G1-IDW1(4mm)(D)

DS-2CD2021G1-IDW

EOL

Specification
Resources
Accessories

Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Day &NightIR Cut Filter
Wide Dynamic RangeDWDR
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
DNR3D DNR

Lens
Lens2.8/4 mm
ApertureF2.0
FOV2.8 mm, horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135° 4 mm, horizontal field of view: 86°, vertical FOV: 46°, diagonal FOV: 102°
Lens MountM12

Illuminator
IR RangeUp to 30 m
Wavelength850 nm

Video
Max. Resolution1920 × 1080
Main Stream50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Video CompressionMain stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Video Bit Rate32 Kbps to 8 Mbps
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Smart Feature-Set
Region of InterestSupport 1 fixed region for main stream

Image EnhancementBLC/3D DNR
Image SettingSaturation, brightness, contrast and sharpness are adjustable via client software and web browser
Day/Night SwitchDay/Night/Auto/Schedule

Wi-Fi
Protocol802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
Channel Bandwidth20/40 MHz
Security64/128-bit WEP, WPA-PSK/WPA2-PSK
Transfer Rate11b: 11 Mbps 11g: 54 Mbps 11n: up to 150 Mbps
Wireless RangeUp to 50 m (The performance varies based on actual environment)
Frequency Range2.4 GHz to 2.4835 GHz
StandardIEEE802.11b, 802.11g, 802.11n

Network
Network StorageSupport microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, UDP, Bonjour
APIONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live ViewUp to 6 channels
User/HostUp to 32 users. 3 levels: administrator, operator and user
ClientWired network: Hik-Connect, iVMS-4200, iVMS-5200, iVMS-4500 Wi-Fi: iVMS-4200, iVMS-5200, iVMS-4500 *Wi-Fi connection with Hik-Connect directly is not possible.
Web BrowserIE 8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Interface
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
On-board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
Audio I/O1 Built-in mic, mono sound

Approval
ProtectionIngress protection: IP66 (IEC 60529-2013)

Compression Standard
H.264+Main stream supports
H.265+Main stream supports

General
Firmware VersionV5.5.98
General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
ResetYes
Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%, Ø5.5 mm coaxial plug power
Power Consumption and Current12 VDC, 0.4 A, max. 4.8 W
MaterialFront cover: plastic, back cover: metal
DimensionsCamera: 69.7 mm × 67.9 mm × 171.4 mm (2.7" × 2.7" × 6.7") With package: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
WeightCamera: approx. 372 g (0.8 lb.) With package: approx. 659 g (1.5 lb.)

Camera

Image Sensor

1/2.8" Progressive Scan CMOS

Min. Illumination

Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Day &Night

IR Cut Filter

Wide Dynamic Range

DWDR

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

DNR

3D DNR

Lens

2.8/4 mm

Aperture

F2.0

FOV

2.8 mm, horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135° 4 mm, horizontal field of view: 86°, vertical FOV: 46°, diagonal FOV: 102°

Lens Mount

M12

Illuminator

IR Range

Up to 30 m

Wavelength

850 nm

Video

Max. Resolution

1920 × 1080

Main Stream

50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub Stream

50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

Video Compression

Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Video Bit Rate

32 Kbps to 8 Mbps

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Smart Feature-Set

Region of Interest

Support 1 fixed region for main stream


Image Enhancement

BLC/3D DNR

Image Setting

Saturation, brightness, contrast and sharpness are adjustable via client software and web browser

Day/Night Switch

Day/Night/Auto/Schedule

Wi-Fi

Protocol

802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM

Channel Bandwidth

20/40 MHz

Security

64/128-bit WEP, WPA-PSK/WPA2-PSK

Transfer Rate

11b: 11 Mbps 11g: 54 Mbps 11n: up to 150 Mbps

Wireless Range

Up to 50 m (The performance varies based on actual environment)

Frequency Range

2.4 GHz to 2.4835 GHz

Standard

IEEE802.11b, 802.11g, 802.11n

Network

Network Storage

Support microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, UDP, Bonjour

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users. 3 levels: administrator, operator and user

Client

Wired network: Hik-Connect, iVMS-4200, iVMS-5200, iVMS-4500 Wi-Fi: iVMS-4200, iVMS-5200, iVMS-4500 *Wi-Fi connection with Hik-Connect directly is not possible.

Web Browser

IE 8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Alarm Trigger

Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-board Storage

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Audio I/O

1 Built-in mic, mono sound

Approval

Protection

Ingress protection: IP66 (IEC 60529-2013)

Compression Standard

H.264+

Main stream supports

H.265+

Main stream supports

General

Firmware Version

V5.5.98

General Function

One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Reset

Yes

Startup and Operating Conditions

-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, Ø5.5 mm coaxial plug power

Power Consumption and Current

12 VDC, 0.4 A, max. 4.8 W

Material

Front cover: plastic, back cover: metal

Dimensions

Camera: 69.7 mm × 67.9 mm × 171.4 mm (2.7" × 2.7" × 6.7") With package: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")

Weight

Camera: approx. 372 g (0.8 lb.) With package: approx. 659 g (1.5 lb.)
