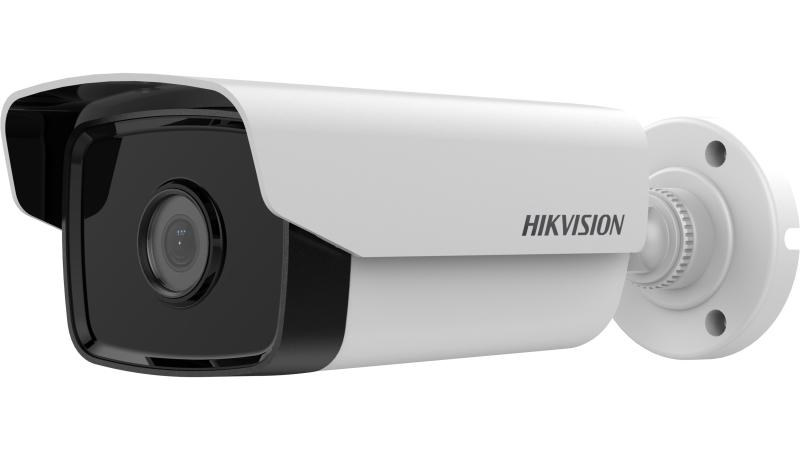

2 MP Fixed Bullet Network Camera

  • High quality imaging with 2 MP resolution
  • Clear imaging against strong back light due to DWDR technology
  • Efficient H.265+ compression technology
  • Water and dustresistant (IP67)
  • Easy installation with Power over Ethernet (PoE) technology
  • 3D DNR technology delivers clean and sharp images
Specification
  • Camera
  • Image Sensor1/2.8″ Progressive Scan CMOS
  • Min. IlluminationColor: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Wide Dynamic RangeDigital WDR
  • Day & NightICR Cut
  • Linkage MethodUpload to FTP, notify surveillance center, send email, trigger capture
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
  • Lens
  • Lens Type & FOV4 mm, horizontal FOV 86°, vertical FOV 47°, diagonal FOV 103°; 6mm, horizontal FOV 54°, vertical FOV 31°, diagonal FOV 63°
  • ApertureF2.0
  • Lens MountM12
  • Illuminator
  • IR Range50 m
  • Wavelength850nm
  • Smart Supplement LightYes
  • Video
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240); 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264; sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Stream TypeMain stream/Sub-stream
  • Region of Interest (ROI)1 fixed region for main stream and sub-stream
  • Network
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web BrowserIE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0+
  • Image
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image EnhancementBLC, HLC, 3D DNR
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • SNR> 50 dB
  • Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Intelligent (Traditional Algorithm)
  • Basic Event Motion detection, video tampering alarm, exception (illegal login)
  • General
  • Firmware VersionV5.5.84
  • Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protection
  • Power Consumption and Current12 VDC, 0.40 A, max. 4.8 W; PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 6 W
  • Power InterfaceΦ5.5 mm coaxial power plug
  • MaterialFront cover & bracket: metal; back cover & sun shield: plastic
  • Camera Dimension71.67 × 92.87 × 221.49 mm (2.82" × 3.65" × 8.72")
  • Package Dimension234 × 120 × 117 mm (9.21" × 4.72" × 4.61")
  • Camera Weight540 g (1.19 lb.)
  • With Package Weight810 g (1.79 lb.)
  • Approval
  • ProtectionIngress protection: IP67 (IEC 60529-2013)
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); IC (ICES-003: Issue 6, 2016)
  • Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
