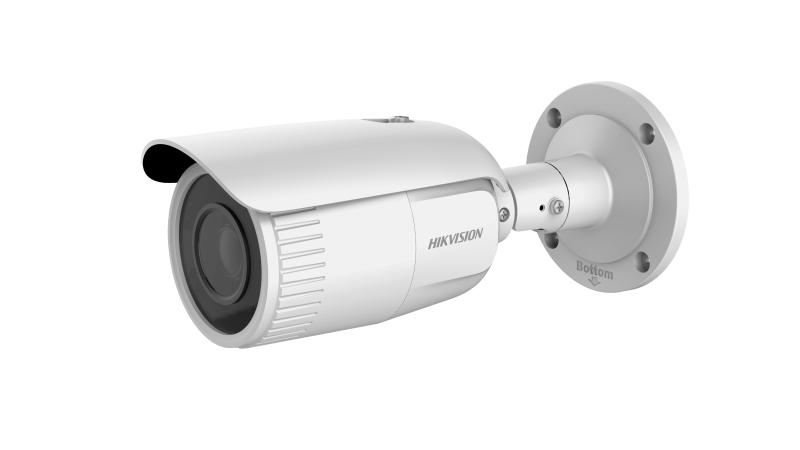

2 MP Varifocal Bullet Network Camera

High quality imaging with 2 MP resolution
Efficient H.264 compression technology
Clear imaging even with strong back lighting thanks to DWDR technology
Up to 128 GB SD card slot for storage
2.8 to 12 mm motorized vari-focal lens for easy installation and monitoring
dust and dust resistant (IP67)
EXIR 2.0: advanced infrared technology with long IR range.

View Less

Available models:

DS-2CD1621G0-IZ(2.8-12mm)

DS-2CD1621G0-I(Z)

EOL

Specification
Resources
Accessories

Camera
Image Sensor1/2.8" progressive scan CMOS
Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.017 Lux @(F1.6, AGC ON), 0 Lux with IR
Shutter Speed1/3 s to 1/100, 000 s, support slow shutter
Day &NightIR cut filter with auto switch
Wide Dynamic RangeDigital WDR
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°
DNR3D DNR

Lens
Lens2.8 mm to 12 mm @F1.6 , horizontal field of view: 111.5° to 33° vertical field of view: 58° to 18.5° diagonal field of view: 134° to 38°
Lens MountΦ14

Illuminator
IR RangeUp to 30 m

Video
Max. Resolution1920 × 1080
Video CompressionMain stream: H.264 Sub stream: H.264/MJPEG
H.264 TypeBaseline profile/Main profile
Video Bit Rate32 Kbps to 8 Mbps

Image EnhancementBLC/3D DNR
Image SettingRotate mode, brightness, saturation, contrast, sharpness are adjustable via web browser or client software
Day/Night SwitchDay, Night, Auto, Scheduled
Main Stream Max. Frame Rate50Hz: 25fps @(1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps @(1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream Max. Frame Rate50Hz: 25fps @(640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps @(640 × 480, 640 × 360, 320 × 240)

Network
Network StorageSupport micro SD/SDHC/SDXC card (128G), local storage, ANR
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour
APIONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live ViewUp to 6 channels
User/HostUp to 32 users 3 levels: Administrator, Operator and User
ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login

Interface
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
Video Output1Vp-p composite output (75Ω/BNC)
On-board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB

Compression Standard
H.264+Main stream supports

General
Firmware VersionV5.5.5
General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
ResetYes
Startup and Operating Conditions-30 °C to 60°C (-22 °F to 140°F), humidity: 95% or less (non-condensing)
Power Supply12 VDC ± 25% PoE: 802.3af, class 3
Power Consumption and CurrentWith Z: 12 VDC, 0.9 A, max: 11W PoE: (802.3af, 36V-57V), 0.4 A to 0.2 A, Max: 12.9W Without Z: 12 VDC, 0.6 A, Max: 7W PoE: (802.3af, 36V-57V), 0.3 A to 0.1 A, Max: 9W
MaterialMetal
DimensionsΦ105 mm × 244.4 mm (4.1" × 9.6")
Weight705 g (1.6 lb.)
Interface ProtectionIP 67

Camera

Image Sensor

1/2.8" progressive scan CMOS

Min. Illumination

Color: 0.01 Lux @(F1.2, AGC ON), 0.017 Lux @(F1.6, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100, 000 s, support slow shutter

Day &Night

IR cut filter with auto switch

Wide Dynamic Range

Digital WDR

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°

DNR

3D DNR

Lens

2.8 mm to 12 mm @F1.6 , horizontal field of view: 111.5° to 33° vertical field of view: 58° to 18.5° diagonal field of view: 134° to 38°

Lens Mount

Φ14

Illuminator

IR Range

Up to 30 m

Video

Max. Resolution

1920 × 1080

Video Compression

Main stream: H.264 Sub stream: H.264/MJPEG

H.264 Type

Baseline profile/Main profile

Video Bit Rate

32 Kbps to 8 Mbps


Image Enhancement

BLC/3D DNR

Image Setting

Rotate mode, brightness, saturation, contrast, sharpness are adjustable via web browser or client software

Day/Night Switch

Day, Night, Auto, Scheduled

Main Stream Max. Frame Rate

50Hz: 25fps @(1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps @(1920 × 1080, 1280 × 960, 1280 × 720)

Sub-stream Max. Frame Rate

50Hz: 25fps @(640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps @(640 × 480, 640 × 360, 320 × 240)

Network

Network Storage

Support micro SD/SDHC/SDXC card (128G), local storage, ANR

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users 3 levels: Administrator, Operator and User

Client

iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Web Browser

IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Alarm Trigger

Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Video Output

1Vp-p composite output (75Ω/BNC)

On-board Storage

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Compression Standard

H.264+

Main stream supports

General

Firmware Version

V5.5.5

General Function

One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark

Reset

Yes

Startup and Operating Conditions

-30 °C to 60°C (-22 °F to 140°F), humidity: 95% or less (non-condensing)

Power Supply

12 VDC ± 25% PoE: 802.3af, class 3

Power Consumption and Current

With Z: 12 VDC, 0.9 A, max: 11W PoE: (802.3af, 36V-57V), 0.4 A to 0.2 A, Max: 12.9W Without Z: 12 VDC, 0.6 A, Max: 7W PoE: (802.3af, 36V-57V), 0.3 A to 0.1 A, Max: 9W

Material

Metal

Dimensions

Φ105 mm × 244.4 mm (4.1" × 9.6")

Weight

705 g (1.6 lb.)

Interface Protection

IP 67
