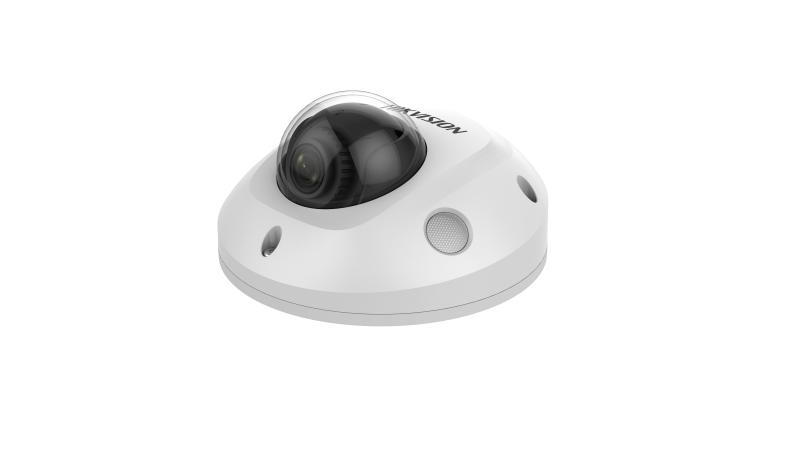

Mobile Mini Dome network Camera

  • High quality imaging with 5 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB WDR technology

View Less
View more
Sales Inquiry

Available models:

DS-2XM6756FWD-IS(2.0mm)
DS-2XM6756FWD-I(8mm)
DS-2XM6756FWD-IM(2.8mm)
DS-2XM6756FWD-I(2.0mm)
DS-2XM6756FWD-I(2.8mm)
DS-2XM6756FWD-IS(2.8mm)
DS-2XM6756FWD-IM(2.0mm)
DS-2XM6756FWD-IM/ND(2.0mm)
DS-2XM6756FWD-IM/ND(2.8mm)
DS-2XM6756FWD-I(S)(M)(/ND)
EOL

Specification

  • Camera
  • Image Sensor1/2.9″ Progressive Scan CMOS
  • Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s – 1/100,000 s
  • Slow ShutterSupport
  • Angle AdjustmentPan: -30° to +30°, Tilt: 0° to 75°, Rotate: 0° to 360°
  • DNR3D DNR
  • WDRDigital WDR
  • Day & NightIR cut filter
  • Lens
  • ApertureF1.6
  • FOV2.0 mm @ F1.6, horizontal FOV 119.5°, vertical FOV 69.8°, diagonal FOV 136°,2.8 mm @ F1.6, horizontal FOV 97.6°, vertical FOV 53.5°, diagonal FOV 113.6°,4 mm @ F1.6, horizontal FOV 73°, vertical FOV 40.3°, diagonal FOV 85.3°,6 mm @ F1.6, horizontal FOV 50.2°, vertical FOV 28°, diagonal FOV 57.7°,8 mm @ F1.6, horizontal FOV 36°, vertical FOV 20°, diagonal FOV 41.6°
  • Lens MountM12
  • Focal length2.0/2.8/4/6/8 mm fixed lens
  • Audio
  • Audio Compression8kHz/16kHz/32kHz/44.1kHz/48kHz
  • Audio I/Osupport
  • Image
  • Image EnhancementBLC, 3D DNR
  • Target CroppingNo
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
  • Picture OverlayNo
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
  • Sub-Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Max. Resolution3072 × 2048
  • Main Stream50Hz: 20fps (3072 × 2048, 3072 × 1728, 2944 × 1656),25fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20fps (3072 × 2048, 3072 × 1728, 2944 × 1656),30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • Third Stream50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
  • Network
  • ProtocolsMotion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • API5.5.4
  • SecurityTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • Simultaneous Live ViewONVIF (PROFILE S, PROFILE G), ISAPI
  • User/HostUp to 6 channels
  • ClientUp to 32 users. 3 user levels, administrator, operator and user
  • Web BrowseriVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200
  • DetectionMicro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Firmware VersionOne-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
  • Smart featuresIE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0+
  • Interface
  • Communication InterfaceBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
  • Alarm1 input (line in), 1 built-in mic, 1 output (line out), mono
  • Video Output1 RJ45 10M/100M Ethernet port
  • On-board Storage1 input, 1 output (up to 12VDC, 30mA)
  • Reset ButtonH.264 and H.265 encoding
  • Housing interfaceYes
  • Compression Standard
  • H.264+Main stream support.
  • H.265+Main stream support.
  • H.264 TypeMain Profile/High Profile
  • Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • H.265 TypeMain Profile
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Video Bit Rate32 Kbps to 16 Mbps
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
  • IR
  • IR Rangeup to 30 m
  • Wavelength850nm
  • Road Traffic and Vehicle Detection
  • AccuracyCamera: Approx. 580 g (1.3 lb.),With package: 860 g (1.9 lb)
  • Smart Feature-set
  • Face DetectionYes
  • Exception DetectionNo
  • Behavior AnalysisLine crossing detection, intrusion detection, unattended baggage detection, object removal detection
  • Region of Interest1 fixed region for main stream and sub stream
  • General
  • Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity less than 95% or less (non-condensing)
  • Power Supply‘-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Power Consumption"-I, -IS: 12 VDC±25%, Coaxial power plug ( Ø 5.5 mm) for DC input, ,-IM: 12 VDC±25%, Molex plug for DC input,
  • Protection LevelIP67, IK10
  • MaterialMetal
  • DimensionsCamera: Φ 110 mm × 57.4 mm (4.3″ × 2.26″), with base: Φ 110 mm × 69.4 mm (4.3″ × 2.7″) With package: 252 mm × 160 mm × 95 mm (9.9″ × 6.3″ × 3.7″)
  • WeightCamera: Φ 110 mm × 57.4 mm (4.3″ × 2.3″), with base: Φ 110 mm × 69.4 mm (4.3″ × 2.7″),With package: 252 mm × 160 mm × 95 mm (9.9″ × 6.3″ × 3.7″)
  • WiperMetal
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/2.9″ Progressive Scan CMOS
Min. Illumination
Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed
1/3 s – 1/100,000 s
Slow Shutter
Support
Angle Adjustment
Pan: -30° to +30°, Tilt: 0° to 75°, Rotate: 0° to 360°
DNR
3D DNR
WDR
Digital WDR
Day & Night
IR cut filter
Lens
Aperture
F1.6
FOV
2.0 mm @ F1.6, horizontal FOV 119.5°, vertical FOV 69.8°, diagonal FOV 136°,2.8 mm @ F1.6, horizontal FOV 97.6°, vertical FOV 53.5°, diagonal FOV 113.6°,4 mm @ F1.6, horizontal FOV 73°, vertical FOV 40.3°, diagonal FOV 85.3°,6 mm @ F1.6, horizontal FOV 50.2°, vertical FOV 28°, diagonal FOV 57.7°,8 mm @ F1.6, horizontal FOV 36°, vertical FOV 20°, diagonal FOV 41.6°
Lens Mount
M12
Focal length
2.0/2.8/4/6/8 mm fixed lens
Audio
Audio Compression
8kHz/16kHz/32kHz/44.1kHz/48kHz
Audio I/O
support
Image Enhancement
BLC, 3D DNR
Target Cropping
No
Day/Night Switch
Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
Picture Overlay
No
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Sub-Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Max. Resolution
3072 × 2048
Main Stream
50Hz: 20fps (3072 × 2048, 3072 × 1728, 2944 × 1656),25fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20fps (3072 × 2048, 3072 × 1728, 2944 × 1656),30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Third Stream
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Network
Protocols
Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
API
5.5.4
Security
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live View
ONVIF (PROFILE S, PROFILE G), ISAPI
User/Host
Up to 6 channels
Client
Up to 32 users. 3 user levels, administrator, operator and user
Web Browser
iVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200
Detection
Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Firmware Version
One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
Smart features
IE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0+
Interface
Communication Interface
Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Alarm
1 input (line in), 1 built-in mic, 1 output (line out), mono
Video Output
1 RJ45 10M/100M Ethernet port
On-board Storage
1 input, 1 output (up to 12VDC, 30mA)
Reset Button
H.264 and H.265 encoding
Housing interface
Yes
Compression Standard
H.264+
Main stream support.
H.265+
Main stream support.
H.264 Type
Main Profile/High Profile
Video Compression
Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
H.265 Type
Main Profile
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM
Video Bit Rate
32 Kbps to 16 Mbps
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
IR
IR Range
up to 30 m
Wavelength
850nm
Road Traffic and Vehicle Detection
Accuracy
Camera: Approx. 580 g (1.3 lb.),With package: 860 g (1.9 lb)
Smart Feature-set
Face Detection
Yes
Exception Detection
No
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Region of Interest
1 fixed region for main stream and sub stream
General
Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity less than 95% or less (non-condensing)
Power Supply
‘-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Consumption
"-I, -IS: 12 VDC±25%, Coaxial power plug ( Ø 5.5 mm) for DC input, ,-IM: 12 VDC±25%, Molex plug for DC input,
Protection Level
IP67, IK10
Material
Metal
Dimensions
Camera: Φ 110 mm × 57.4 mm (4.3″ × 2.26″), with base: Φ 110 mm × 69.4 mm (4.3″ × 2.7″) With package: 252 mm × 160 mm × 95 mm (9.9″ × 6.3″ × 3.7″)
Weight
Camera: Φ 110 mm × 57.4 mm (4.3″ × 2.3″), with base: Φ 110 mm × 69.4 mm (4.3″ × 2.7″),With package: 252 mm × 160 mm × 95 mm (9.9″ × 6.3″ × 3.7″)
Wiper
Metal
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Camera
  • Image Sensor1/2.9″ Progressive Scan CMOS
  • Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s – 1/100,000 s
  • Slow ShutterSupport
  • Angle AdjustmentPan: -30° to +30°, Tilt: 0° to 75°, Rotate: 0° to 360°
  • DNR3D DNR
  • WDRDigital WDR
  • Day & NightIR cut filter
Lens
  • ApertureF1.6
  • FOV2.0 mm @ F1.6, horizontal FOV 119.5°, vertical FOV 69.8°, diagonal FOV 136°,2.8 mm @ F1.6, horizontal FOV 97.6°, vertical FOV 53.5°, diagonal FOV 113.6°,4 mm @ F1.6, horizontal FOV 73°, vertical FOV 40.3°, diagonal FOV 85.3°,6 mm @ F1.6, horizontal FOV 50.2°, vertical FOV 28°, diagonal FOV 57.7°,8 mm @ F1.6, horizontal FOV 36°, vertical FOV 20°, diagonal FOV 41.6°
  • Lens MountM12
  • Focal length2.0/2.8/4/6/8 mm fixed lens
Audio
  • Audio Compression8kHz/16kHz/32kHz/44.1kHz/48kHz
  • Audio I/Osupport
  • Image EnhancementBLC, 3D DNR
  • Target CroppingNo
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
  • Picture OverlayNo
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
  • Sub-Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Max. Resolution3072 × 2048
  • Main Stream50Hz: 20fps (3072 × 2048, 3072 × 1728, 2944 × 1656),25fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20fps (3072 × 2048, 3072 × 1728, 2944 × 1656),30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • Third Stream50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Network
  • ProtocolsMotion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • API5.5.4
  • SecurityTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • Simultaneous Live ViewONVIF (PROFILE S, PROFILE G), ISAPI
  • User/HostUp to 6 channels
  • ClientUp to 32 users. 3 user levels, administrator, operator and user
  • Web BrowseriVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200
  • DetectionMicro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Firmware VersionOne-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
  • Smart featuresIE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0+
Interface
  • Communication InterfaceBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
  • Alarm1 input (line in), 1 built-in mic, 1 output (line out), mono
  • Video Output1 RJ45 10M/100M Ethernet port
  • On-board Storage1 input, 1 output (up to 12VDC, 30mA)
  • Reset ButtonH.264 and H.265 encoding
  • Housing interfaceYes
Compression Standard
  • H.264+Main stream support.
  • H.265+Main stream support.
  • H.264 TypeMain Profile/High Profile
  • Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • H.265 TypeMain Profile
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Video Bit Rate32 Kbps to 16 Mbps
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
IR
  • IR Rangeup to 30 m
  • Wavelength850nm
Road Traffic and Vehicle Detection
  • AccuracyCamera: Approx. 580 g (1.3 lb.),With package: 860 g (1.9 lb)
Smart Feature-set
  • Face DetectionYes
  • Exception DetectionNo
  • Behavior AnalysisLine crossing detection, intrusion detection, unattended baggage detection, object removal detection
  • Region of Interest1 fixed region for main stream and sub stream
General
  • Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity less than 95% or less (non-condensing)
  • Power Supply‘-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Power Consumption"-I, -IS: 12 VDC±25%, Coaxial power plug ( Ø 5.5 mm) for DC input, ,-IM: 12 VDC±25%, Molex plug for DC input,
  • Protection LevelIP67, IK10
  • MaterialMetal
  • DimensionsCamera: Φ 110 mm × 57.4 mm (4.3″ × 2.26″), with base: Φ 110 mm × 69.4 mm (4.3″ × 2.7″) With package: 252 mm × 160 mm × 95 mm (9.9″ × 6.3″ × 3.7″)
  • WeightCamera: Φ 110 mm × 57.4 mm (4.3″ × 2.3″), with base: Φ 110 mm × 69.4 mm (4.3″ × 2.7″),With package: 252 mm × 160 mm × 95 mm (9.9″ × 6.3″ × 3.7″)
  • WiperMetal
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

Technical documents

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.6.2_190701
【Release Note】Mobile IPC V5.6.2_190701
Applied to:
DS-2XM6756FWD-IS(2.0mm)
DS-2XM6756FWD-I(8mm)
DS-2XM6756FWD-IM(2.8mm)
DS-2XM6756FWD-I(2.0mm)
DS-2XM6756FWD-I(2.8mm)
DS-2XM6756FWD-IS(2.8mm)
DS-2XM6756FWD-IM(2.0mm)
DS-2XM6756FWD-IM/ND(2.0mm)
DS-2XM6756FWD-IM/ND(2.8mm)

Hikvision.com uses strictly necessary cookies and related technologies to enable the website to function. With your consent, we would also like to use cookies to observe and analyse traffic levels and other metrics / show you targeted advertising / show you advertising on the basis of your location / tailor our website's content. For more information on cookie practices please refer to our cookie policy.



Manage cookies Accept All
Accept All Manage cookies
Sales
Technical Support
Online Chat
Lokasi Pembelian
Hubungi Kami
Hik-Partner Pro close
Hik-Partner Pro
Security Business Assistant. At Your Fingertips. Learn more
Hik-Partner Pro
Scan and download the app
Download
Hik-Partner Pro
Hik-Partner Pro

Get a better browsing experience

You are using a web browser we don’t support. Please try one of the following options to have a better experience of our web content.
