DS-2XM6736FWD-I(S)(M)(/ND)

EOL

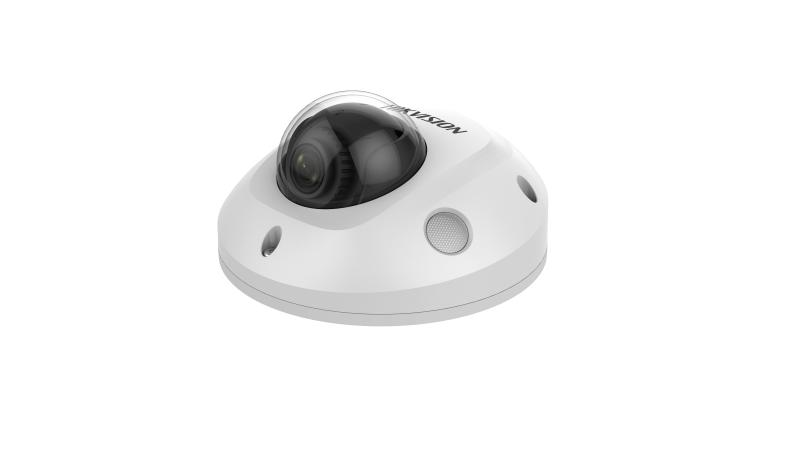

Mobile Mini Dome network Camera

High quality imaging with 3 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB WDR technology

View Less

Available models:

DS-2XM6736FWD-IS(2.0mm)

DS-2XM6736FWD-IM(2.8mm)

DS-2XM6736FWD-IM(4mm)

DS-2XM6736FWD-I(2.8mm)

DS-2XM6736FWD-I(4mm)

DS-2XM6736FWD-I(2.0mm)

DS-2XM6736FWD-IM(2.0mm)

DS-2XM6736FWD-IM(8mm)

DS-2XM6736FWD-IS(2.8mm)

DS-2XM6736FWD-IM/ND(2.8mm)

DS-2XM6736FWD-IM/ND(4mm)

DS-2XM6736FWD-IM/ND(8mm)

Camera
Image Sensor1/3″ Progressive Scan CMOS
Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Angle AdjustmentPan: -30° to +30°, Tilt: 0° to 75°, Rotate: 0° to 360°
Digital Noise Reduction3D DNR
WDR120 dB
Day & NightIR Cut Filter

Lens
Auto-IrisNo
ApertureF1.6
FOV2.0 mm @ F1.6, horizontal FOV 122°, vertical FOV 71°, diagonal FOV 139°,2.8 mm @ F1.6, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°,4 mm @ F1.6, horizontal FOV 75°, vertical FOV 41°, diagonal FOV 88°,6 mm @ F1.6, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 59°,8 mm @ F1.6, horizontal FOV 37°, vertical FOV 20°, diagonal FOV 42°
Lens MountM12
Focal length2.0/2.8/4/6/8 mm fixed lens

Video
Max. Resolution2304 × 1296
Main StreamH.265/H.264
Sub StreamH.265/H.264/MJPEG
Third StreamH.265/H.264
Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
H.264 TypeMain Profile/High Profile
H.265 TypeMain Profile
Video Bit Rate32 Kbps to 16 Mbps
SVCH.264 and H.265 encoding

Audio
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Environment Noise FilteringYes
Audio Sampling Rate8kHz/16kHz/32kHz/44.1kHz/48kHz

Smart Feature-Set
Behavior AnalysisLine crossing detection, intrusion detection, unattended baggage detection, object removal detection
Region of Interest1 fixed region for main stream and sub stream

Image EnhancementBLC, 3D DNR
Image SettingRotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Target CroppingNo
Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
Picture OverlayNo

Network
Network StorageMicro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
APIONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live ViewUp to 6 channels
User/HostUp to 32 users,3 levels: Administrator, Operator and User
ClientiVMS-4200, iVMS-4500, iVMS-5200
Web BrowserIE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0+
Alarm TriggerMotion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Interface
Communication Interface1 RJ45 10M/100M Ethernet port
Reset ButtonYes
Audio (-S)1 input (line in), 1 built-in mic, 1 output (line out), mono sound
Alarm (-S)1 input, 1 output (up to 12VDC, 30mA)
On-board storageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB

Compression Standard
H.264+Main stream support.
H.265+Main stream support.

Smart Feature-set
Face DetectionYes
Exception DetectionNo

General
Firmware VersionV5.5.4
General FunctionOne-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
Power Supply-I, -IS: 12 VDC±25%, Coaxial power plug ( Ø 5.5 mm) for DC input, ,-IM: 12 VDC±25%, Molex plug for DC input
Power Consumption and Current12 V DC ± 25%, 0.5 A, max. 6 W,PoE: (802.3af,36V-57V), 0.2A to 0.13A, Max:7.5W
MaterialMetal
DimensionsCamera: Φ 110 mm × 57.4 mm (4.3″ × 2.26″), with base: Φ 110 mm × 69.4 mm (4.3″ × 2.7″) With package: 252 mm × 160 mm × 95 mm (9.9″ × 6.3″ × 3.7″)
WeightCamera: Approx. 580 g (1.3 lb.),With package: 860 g (1.9 lb)
Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity less than 95% or less (non-condensing)
Protection LevelIP67, IK10

Specification

Camera

Image Sensor

1/3″ Progressive Scan CMOS

Min. Illumination

Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Angle Adjustment

Pan: -30° to +30°, Tilt: 0° to 75°, Rotate: 0° to 360°

Digital Noise Reduction

3D DNR

WDR

120 dB

Day & Night

IR Cut Filter

Lens

Auto-Iris

Aperture

F1.6

FOV

2.0 mm @ F1.6, horizontal FOV 122°, vertical FOV 71°, diagonal FOV 139°,2.8 mm @ F1.6, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°,4 mm @ F1.6, horizontal FOV 75°, vertical FOV 41°, diagonal FOV 88°,6 mm @ F1.6, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 59°,8 mm @ F1.6, horizontal FOV 37°, vertical FOV 20°, diagonal FOV 42°

Lens Mount

M12

Focal length

2.0/2.8/4/6/8 mm fixed lens

Video

Max. Resolution

2304 × 1296

Main Stream

H.265/H.264

Sub Stream

H.265/H.264/MJPEG

Third Stream

H.265/H.264

Video Compression

Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264

H.264 Type

Main Profile/High Profile

H.265 Type

Main Profile

Video Bit Rate

32 Kbps to 16 Mbps

SVC

H.264 and H.265 encoding

Audio

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Environment Noise Filtering

Yes

Audio Sampling Rate

8kHz/16kHz/32kHz/44.1kHz/48kHz

Smart Feature-Set

Behavior Analysis

Line crossing detection, intrusion detection, unattended baggage detection, object removal detection

Region of Interest

1 fixed region for main stream and sub stream


Image Enhancement

BLC, 3D DNR

Image Setting

Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser

Target Cropping

Day/Night Switch

Day/Night/Auto/Schedule/Triggered by Alarm In (-S)

Picture Overlay

Network

Network Storage

Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users,3 levels: Administrator, Operator and User

Client

iVMS-4200, iVMS-4500, iVMS-5200

Web Browser

IE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0+

Alarm Trigger

Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Interface

Communication Interface

1 RJ45 10M/100M Ethernet port

Reset Button

Yes

Audio (-S)

1 input (line in), 1 built-in mic, 1 output (line out), mono sound

Alarm (-S)

1 input, 1 output (up to 12VDC, 30mA)

On-board storage

Built-in micro SD/SDHC/SDXC slot, up to 128 GB

Compression Standard

H.264+

Main stream support.

H.265+

Main stream support.

Smart Feature-set

Face Detection

Yes

Exception Detection

General

Firmware Version

V5.5.4

General Function

One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter

Power Supply

-I, -IS: 12 VDC±25%, Coaxial power plug ( Ø 5.5 mm) for DC input, ,-IM: 12 VDC±25%, Molex plug for DC input

Power Consumption and Current

12 V DC ± 25%, 0.5 A, max. 6 W,PoE: (802.3af,36V-57V), 0.2A to 0.13A, Max:7.5W

Material

Metal

Dimensions

Camera: Φ 110 mm × 57.4 mm (4.3″ × 2.26″), with base: Φ 110 mm × 69.4 mm (4.3″ × 2.7″) With package: 252 mm × 160 mm × 95 mm (9.9″ × 6.3″ × 3.7″)

Weight

Camera: Approx. 580 g (1.3 lb.),With package: 860 g (1.9 lb)

Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity less than 95% or less (non-condensing)

Protection Level

IP67, IK10
