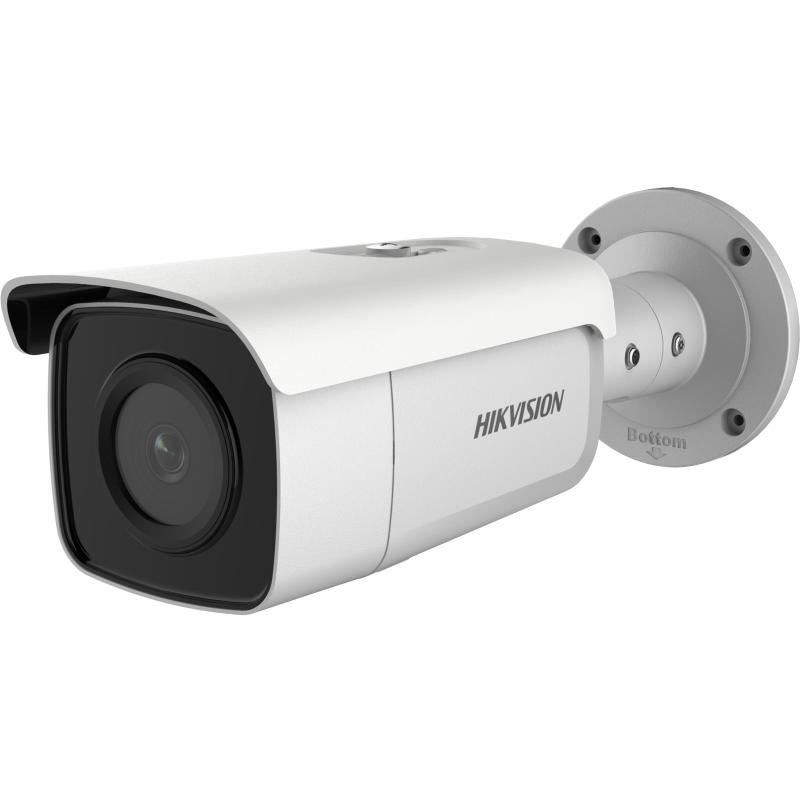

4 MP AcuSense Fixed Bullet Network Camera

  • High quality imaging with 4 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • False alarm reduction through human and vehicle target classification based on deep learning
  • Water and dust resistant (IP67)
  • 50/80 m IR distance for bright night imaging
  • Robust structure design with full metal materials
View Less
View more
DS-2CD2T46G1-4IEOL
DS-2CD2T46G1-2IEOL
Sales Inquiry

Available models:

DS-2CD2T46G1-4I(2.8mm)
DS-2CD2T46G1-4I(4mm)
DS-2CD2T46G1-4I(6mm)

Available models:

DS-2CD2T46G1-2I(2.8mm)
DS-2CD2T46G1-2I(4mm)
DS-2CD2T46G1-2I/4I

Specification

  • Camera
  • Image Sensor 1/2.7" Progressive Scan CMOS
  • Min. Illumination 0.007 Lux @ (F1.2, AGC ON), 0.012 Lux @ (F1.6, AGC ON)
  • Shutter Speed 1/3 s to 1/100,000 s
  • Slow Shutter Yes
  • Wide Dynamic Range 120dB
  • Day & Night IR cut filter
  • Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lens
  • Focus Fixed
  • Lens Type 2.8/4/6/8 mm
  • FOV 2.8 mm, horizontal FOV: 104°, vertical FOV: 58°, diagonal FOV: 124°,4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99°,6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 58°,8 mm, horizontal FOV: 39°, vertical FOV: 21°, diagonal FOV: 45°
  • Aperture F1.6
  • Lens Mount M12
  • Aperture Type Fixed
  • Illuminator
  • IR Range -2I: 2LEDs, up to 50 m,-4I: 4LEDs, up to 80 m
  • Wavelength 850 nm
  • Video
  • Max. Resolution 2688 × 1520
  • Main Stream 50Hz: 25fps (2688 × 1520, 1920 × 1080, 1280 × 720),60Hz: 30fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub Stream 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 576, 640 × 480, 352 × 288)
  • Video Compression Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG
  • Video Bit Rate 32 Kbps to 16 Mbps
  • H.264 Type Main Profile/High Profile
  • H.265 Type Main Profile
  • H.264+ Main stream supports
  • H.265+ Main stream supports
  • Scalable Video Coding (SVC) H.265 encoding and H.264 encoding support
  • Region of Interest (ROI) Support 1 fixed region for main stream and sub stream separately
  • Network
  • Simultaneous Live View Up to 6 channels
  • API ONVIF (PROFILE S, PROFILE G), ISAPI
  • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • User/Host Up to 32 users,3 levels: Administrator, Operator and User
  • Network Storage Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
  • Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
  • Alarm Trigger Tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Image
  • Day/Night Switch Day/Night/Auto/Schedule
  • DNR 3D DNR
  • Image Enhancement BLC/3D DNR
  • Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Interface
  • On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
  • Hardware Reset Yes
  • Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
  • Event
  • Smart Event Line crossing detection, intrusion detection, region entrance detection, region exit detection, false alarm filter by target classification
  • General
  • Firmware Version V5.5.61
  • General Function One-key reset, anti-filter
  • Startup and Operating Conditions -30 °C to +50 °C (-22 °F to +122 °F), humidity 95% or less (non-condensing)
  • Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3at, class 4)
  • Power Consumption and Current -2I: ,12 VDC, 0.9 A, Max: 10.5 W,PoE: (802.3at, 42.5 V to 57 V), 0.3A to 0.1A, Max: 13 W,-4I:,12 VDC, 1.2 A, Max: 14 W,PoE: (802.3at, 42.5 V to 57 V), 0.4A to 0.1A, Max: 17 W
  • Camera Dimension Camera: Φ105 × 289.5 mm (Φ4.1″ × 11.4″)
  • Camera Weight Camera: 1100 g (2.4 lb.),With package: 1600 g (3.5 lb.)
  • Approval
  • Protection IP67
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Camera
Image Sensor
1/2.7" Progressive Scan CMOS
Min. Illumination
0.007 Lux @ (F1.2, AGC ON), 0.012 Lux @ (F1.6, AGC ON)
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Wide Dynamic Range
120dB
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focus
Fixed
Lens Type
2.8/4/6/8 mm
FOV
2.8 mm, horizontal FOV: 104°, vertical FOV: 58°, diagonal FOV: 124°,4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99°,6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 58°,8 mm, horizontal FOV: 39°, vertical FOV: 21°, diagonal FOV: 45°
Aperture
F1.6
Lens Mount
M12
Aperture Type
Fixed
Illuminator
IR Range
-2I: 2LEDs, up to 50 m,-4I: 4LEDs, up to 80 m
Wavelength
850 nm
Video
Max. Resolution
2688 × 1520
Main Stream
50Hz: 25fps (2688 × 1520, 1920 × 1080, 1280 × 720),60Hz: 30fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub Stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 576, 640 × 480, 352 × 288)
Video Compression
Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Main Profile/High Profile
H.265 Type
Main Profile
H.264+
Main stream supports
H.265+
Main stream supports
Scalable Video Coding (SVC)
H.265 encoding and H.264 encoding support
Region of Interest (ROI)
Support 1 fixed region for main stream and sub stream separately
Network
Simultaneous Live View
Up to 6 channels
API
ONVIF (PROFILE S, PROFILE G), ISAPI
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
User/Host
Up to 32 users,3 levels: Administrator, Operator and User
Network Storage
Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Client
iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser
IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Alarm Trigger
Tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Day/Night Switch
Day/Night/Auto/Schedule
DNR
3D DNR
Image Enhancement
BLC/3D DNR
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Interface
On-board Storage
Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Hardware Reset
Yes
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Event
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exit detection, false alarm filter by target classification
General
Firmware Version
V5.5.61
General Function
One-key reset, anti-filter
Startup and Operating Conditions
-30 °C to +50 °C (-22 °F to +122 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3at, class 4)
Power Consumption and Current
-2I: ,12 VDC, 0.9 A, Max: 10.5 W,PoE: (802.3at, 42.5 V to 57 V), 0.3A to 0.1A, Max: 13 W,-4I:,12 VDC, 1.2 A, Max: 14 W,PoE: (802.3at, 42.5 V to 57 V), 0.4A to 0.1A, Max: 17 W
Camera Dimension
Camera: Φ105 × 289.5 mm (Φ4.1″ × 11.4″)
Camera Weight
Camera: 1100 g (2.4 lb.),With package: 1600 g (3.5 lb.)
Approval
Protection
IP67
