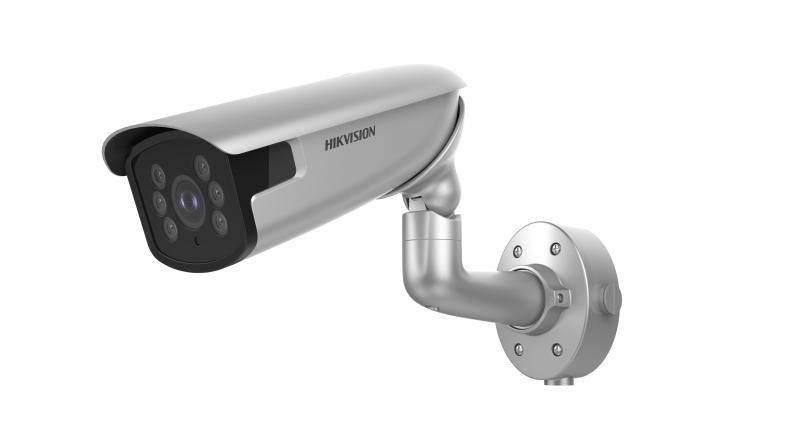

2 MP DeepinView ANPR Moto Varifocal Bullet Camera

  • High quality imaging with 2 MP resolution at 60fps
  • License plate recognition
  • Clear imaging against strong back light thanks to LightFighter technology
  • Water and dust resistant and vandal proof (IP67 and IK10).
View Less
View more

Available models:

iDS-2CD8626G0/P-IZS(2.8-12mm)
iDS-2CD8626G0/P-IZS(8-32mm)
iDS-2CD8626G0/P-LZS(2.8-12mm)

Specification

  • Camera
  • Image Sensor1/1.8″ Progressive Scan CMOS
  • Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON); 0.031 Lux @ (F1.5, AGC ON), 0 Lux with white light on
  • Shutter Speed1 s to 1/100,000 s
  • Slow ShutterYes
  • Auto-irisDC drive
  • Day & NightIR Cut Filter
  • DNR3D DNR
  • WDR120 dB
  • Lens
  • Focal length2.8 to 12 mm 8 to 32 mm
  • Aperture Range2.8 to 12 mm: F1.5 - 2.8 8 to 32 mm: F1.6
  • FOV2.8 to 12 mm: horizontal FOV 81.8° to 31.2°, vertical FOV: 43.5° to 17.6°, diagonal FOV: 97° to 36.3° 8 to 32 mm: horizontal FOV 42° to 13.2°, vertical FOV: 23.6° to 7.8°, diagonal FOV: 49° to 15.5°
  • Decoding
  • Audio compressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM
  • Audio bit rate64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
  • Video
  • Max. Resolution1920 × 1080
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265+Main stream supports
  • H.264+Main stream supports
  • H.265 TypeMain Profile
  • Audio
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Smart Feature-Set
  • Behavior AnalysisLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
  • Face DetectionYes
  • Region of InterestSupport 4 fixed regions for each stream, and dynamic tracking
  • Exception DetectionScene change detection, audio exception detection
  • ExceptionAudio exception detection
  • Image
  • Target CroppingYes
  • Image EnhancementBLC, defog, EIS, 3D DNR, HLC
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
  • SVCYes
  • Day/Night SwitchAuto/Schedule/Day/Night/Triggered by Alarm In
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Main Stream50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
  • Fourth Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Fifth Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Network
  • Network StorageSupport Micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
  • Alarm TriggerMotion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users. 3 user levels: Administrator, Operator and User
  • Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
  • General FunctionOne-key reset, anti-flicker, five streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Interface
  • Communication Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port, 1 RS-485 interface
  • Video Output1Vp-p composite output (75 Ω/BNC)
  • On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
  • Reset ButtonYes
  • Audio I/O1-ch 3.5 mm audio input (line in), 1-ch 3.5 mm audio output (line out), mono sound
  • Alarm I/O2 inputs, 2 outputs (up to 24 VDC 1 A or 110 VAC 500 mA)
  • IR
  • IR RangeUp to 100 m
  • IR Wavelength850nm
  • Compression
  • Video CompressionMain stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Fourth stream: H.265/H.264 Fifth stream: H.265/H.264
  • Video Bit Rate32 Kbps to 16 Mbps
  • Road Traffic and Vehicle Detection
  • AccuracyCapture Rate > 99%, accuracy rate > 98% when only one lane is configured
  • Vehicle SpeedSupport vehicle speed under 120 km/h (74.6 mi/h)
  • Line number2 lanes
  • DirectionSupport capture and recognition of vehicles both approaching and leaving
  • Whitelist and BlacklistUp to 10000
  • Smart Feature-set
  • RecognitionLicense Plate Recognition
  • General
  • Firmware
