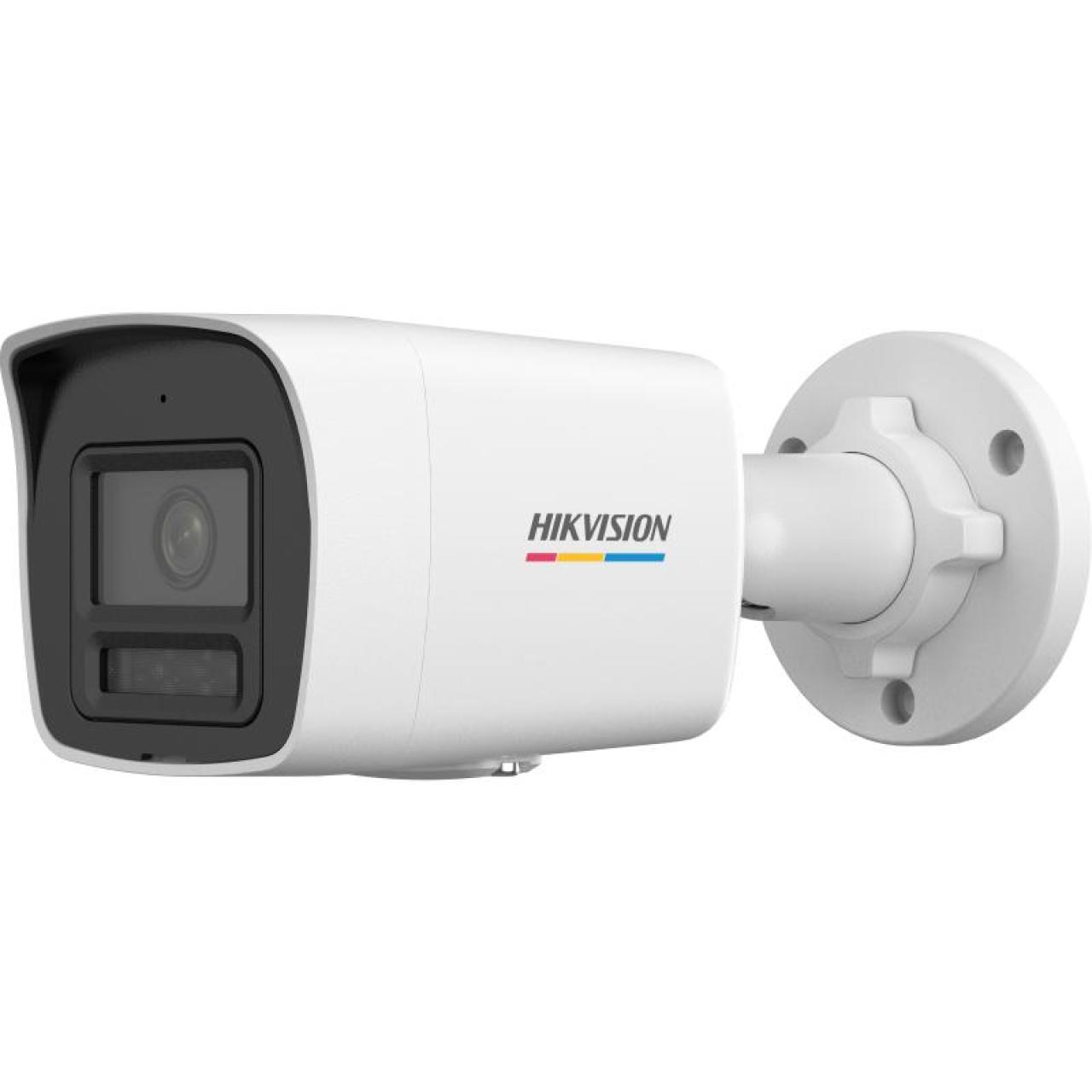

4 MP ColorVu 3.0 Fixed Bullet Network Camera

Name: 4 MP ColorVu 3.0 Fixed Bullet Network Camera
Brand: Hikvision
Availability: InStock
Rating: 5.0 (1 reviews)

HikAI-ISP for excellent noise reduction effect
Super clear 24/7 colorful imaging with ColorVu 3.0 technology
Focus on Person and Vehicle classification based on deep learning
-SL/-SRB: Two-Way Audio via camera and Hik-Connect
-SL/-SRB: Strobe Light & Audio Alarm to deter intruders
Smart Hybrid Light: integrates IR and white lights, 3 supplemental lighting modes
-F: On-board storage with SD card up to 512 GB
Water and dust resistant (IP67)

View Less

Modelos disponibles:

DS-2CD1047G3-LIUF/SRB(2.8)Latam AcuSense

View more View Less

DS-2CD1047G3-LIUF/SRB 2.8mm#Latam

Especificación
Recursos
Accesorios

Cámara
Sensor de imagen1/3" Progressive Scan CMOS
Max. Resolución2560 × 1440
Iluminación mínimaColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Tiempo de obturación1 s to 1/100,000 s
Día y NocheIR cut filter
Ajuste de ánguloPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lente
LenteFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 95.7°, vertical FOV 51.7°, diagonal FOV 113.7° 4 mm, horizontal FOV 79.6°, vertical FOV 43.2°, diagonal FOV 93.2°
Montura del lenteM12
Iris TypeFixed
AperturaF1.0
Depth of Field2.8 mm: 1.7 m to ∞ 4 mm: 1.6 m to ∞

DORI
DORI2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Iluminador
Tipo de luz suplementariaIR,White Light
Rango de luz suplementariaUp to 30 m
Luz de suplemento inteligenteYes
IR Wavelength850 nm

Vídeo
Main stream50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-stream50 Hz: 25 fps (1280 × 720,640 × 480,640 × 360) 60 Hz: 24 fps (1280 × 720,640 × 480,640 × 360)
Compresión de videoMain stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Vídeo bitrate32 Kbps to 16 Mbps
Tipo H.264Baseline Profile,Main Profile,High Profile
Tipo H.265Main Profile
Bit Rate ControlCBR,VBR
Región de interés (ROI)1 fixed region for main stream and sub-stream
Codificación de video escalable (SVC)H.264 and H.265 encoding

Audio
Tipo de audioMono sound
Compresión de audioG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
Velocidad de bits de audio64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Frecuencia de muestreo de audio8 kHz/16 kHz
Filtro de ruido ambientalYes

Red
ProtocolosTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
Vista en vivo simultáneaUp to 6 channels
APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
SeguridadPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Usuario/operadorUp to 32 users 3 user levels: administrator, operator, and user
ClienteiVMS-4200;Hik-Connect
Navegador webPlug-in required live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+

Imagen
Configuración de imagenRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Interruptor día/nocheDay,Night,Auto,Schedule
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Mejora de la imagenBLC,HLC,3D DNR
Máscara de privacidad4 programmable rectangular privacy masks

Interfaz
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage-LIU、LIU/S(L)(RB)：NA -LIUF、LIUF/S(L)(RB)：Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Micrófono incorporadoYes,1 built-in microphone
Altavoz incorporado-LIU、-LIUF: NA -LIU/S(L)(RB)、-LIUF/S(L)(RB): Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 98 dB
AudioNA
AlarmaNA
Reset Key-LIU、LIU/S(L)(RB)：NA -LIUF、LIUF/S(L)(RB)：YES

Evento
Evento BásicoMotion detection (support alarm triggering by specified target types (person and vehicle)), video tampering alarm, exception
LinkageUpload to FTP,notify surveillance center,send email,trigger recording

Deep Learning Function
Perimeter Protection Line crossing, Intrusion, Support alarm triggering by specified target types (human and vehicle)

General
alimentación-LIU: 12 VDC ± 25%, 0.55 A, max. 6.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.0 W, -LIUF: 12 VDC ± 25%, 0.57 A, max. 6.9 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.5 W, -LIU/S(L)(RB)、-LIUF/S(L)(RB): 12 VDC ± 25%, 0.72 A, max. 8.9 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 10.5 W
MaterialFront cover: metal, body: plastic, bracket: plastic
Dimensión-LIU、-LIUF: 69.1 mm × 66.9 mm × 172.9 mm (2.7" × 2.6" × 6.8") -LIU/S(L)(RB)、-LIUF/S(L)(RB): 69.1 mm × 67.4 mm × 179 mm (2.7" × 2.7" × 7.1")
Dimensión del paquete216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.7")
-LIU: Approx. 330 g (0.73 lb.) -LIUF: Approx. 335 g (0.74 lb.) -LIU(F)/SL: Approx. 450 g (0.99 lb.) -LIU(F)/SRB: Approx. 450 g (0.99 lb.)
Con peso del paquete-LIU: Approx. 445 g (0.98 lb.) -LIUF: Approx. 450 g (0.99 lb.) -LIU(F)/SL: Approx. 480 g (1.06 lb.) -LIU(F)/SRB: Approx. 480 g (1.06 lb.)
Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
IdiomaEnglish, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
Función generalHeartbeat,mirror,flash log,password reset via email,password protection,anti-banding
Luz intermitente-LIU、-LIUF：NA -LIU(F)/SL：White Light -LIU(F)/SRB：Red and Blue Light

Certificaciones
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Seguridad CB: IEC 62368-1: 2014+A11
AmbienteCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
ProtecciónIP67: IEC 60529-2013

Cámara

Sensor de imagen

1/3" Progressive Scan CMOS

Max. Resolución

2560 × 1440

Iluminación mínima

Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light

Tiempo de obturación

1 s to 1/100,000 s

Día y Noche

IR cut filter

Ajuste de ángulo

Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lente

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 95.7°, vertical FOV 51.7°, diagonal FOV 113.7° 4 mm, horizontal FOV 79.6°, vertical FOV 43.2°, diagonal FOV 93.2°

Montura del lente

M12

Iris Type

Fixed

Apertura

F1.0

Depth of Field

2.8 mm: 1.7 m to ∞ 4 mm: 1.6 m to ∞

DORI

2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Iluminador

Tipo de luz suplementaria

IR,White Light

Rango de luz suplementaria

Up to 30 m

Luz de suplemento inteligente

Yes

IR Wavelength

850 nm

Vídeo

Main stream

50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-stream

50 Hz: 25 fps (1280 × 720,640 × 480,640 × 360) 60 Hz: 24 fps (1280 × 720,640 × 480,640 × 360)

Compresión de video

Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG

Vídeo bitrate

32 Kbps to 16 Mbps

Tipo H.264

Baseline Profile,Main Profile,High Profile

Tipo H.265

Main Profile

Bit Rate Control

CBR,VBR

Región de interés (ROI)

1 fixed region for main stream and sub-stream

Codificación de video escalable (SVC)

H.264 and H.265 encoding

Audio

Tipo de audio

Mono sound

Compresión de audio

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3

Velocidad de bits de audio

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Frecuencia de muestreo de audio

8 kHz/16 kHz

Filtro de ruido ambiental

Yes

Red

Protocolos

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP

Vista en vivo simultánea

Up to 6 channels

API

ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK

Seguridad

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Usuario/operador

Up to 32 users 3 user levels: administrator, operator, and user

Cliente

iVMS-4200;Hik-Connect

Navegador web

Plug-in required live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+

Imagen

Configuración de imagen

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Interruptor día/noche

Day,Night,Auto,Schedule

Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Mejora de la imagen

BLC,HLC,3D DNR

Máscara de privacidad

4 programmable rectangular privacy masks

Interfaz

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

-LIU、LIU/S(L)(RB)：NA -LIUF、LIUF/S(L)(RB)：Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Micrófono incorporado

Yes,1 built-in microphone

Altavoz incorporado

-LIU、-LIUF: NA -LIU/S(L)(RB)、-LIUF/S(L)(RB): Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 98 dB

Audio

Alarma

Reset Key

-LIU、LIU/S(L)(RB)：NA -LIUF、LIUF/S(L)(RB)：YES

Evento

Evento Básico

Motion detection (support alarm triggering by specified target types (person and vehicle)), video tampering alarm, exception

Linkage

Upload to FTP,notify surveillance center,send email,trigger recording

Deep Learning Function

Perimeter Protection

Line crossing, Intrusion, Support alarm triggering by specified target types (human and vehicle)

General

alimentación

-LIU: 12 VDC ± 25%, 0.55 A, max. 6.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.0 W, -LIUF: 12 VDC ± 25%, 0.57 A, max. 6.9 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.5 W, -LIU/S(L)(RB)、-LIUF/S(L)(RB): 12 VDC ± 25%, 0.72 A, max. 8.9 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 10.5 W

Material

Front cover: metal, body: plastic, bracket: plastic

Dimensión

-LIU、-LIUF: 69.1 mm × 66.9 mm × 172.9 mm (2.7" × 2.6" × 6.8") -LIU/S(L)(RB)、-LIUF/S(L)(RB): 69.1 mm × 67.4 mm × 179 mm (2.7" × 2.7" × 7.1")

Dimensión del paquete

216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.7")

-LIU: Approx. 330 g (0.73 lb.) -LIUF: Approx. 335 g (0.74 lb.) -LIU(F)/SL: Approx. 450 g (0.99 lb.) -LIU(F)/SRB: Approx. 450 g (0.99 lb.)

Con peso del paquete

-LIU: Approx. 445 g (0.98 lb.) -LIUF: Approx. 450 g (0.99 lb.) -LIU(F)/SL: Approx. 480 g (1.06 lb.) -LIU(F)/SRB: Approx. 480 g (1.06 lb.)

Condiciones de almacenaje

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Condiciones de inicio y funcionamiento

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Idioma

English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German

Función general

Heartbeat,mirror,flash log,password reset via email,password protection,anti-banding

Luz intermitente

-LIU、-LIUF：NA -LIU(F)/SL：White Light -LIU(F)/SRB：Red and Blue Light

Certificaciones

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021

Seguridad

CB: IEC 62368-1: 2014+A11

Ambiente

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Protección

IP67: IEC 60529-2013
