Discontinued

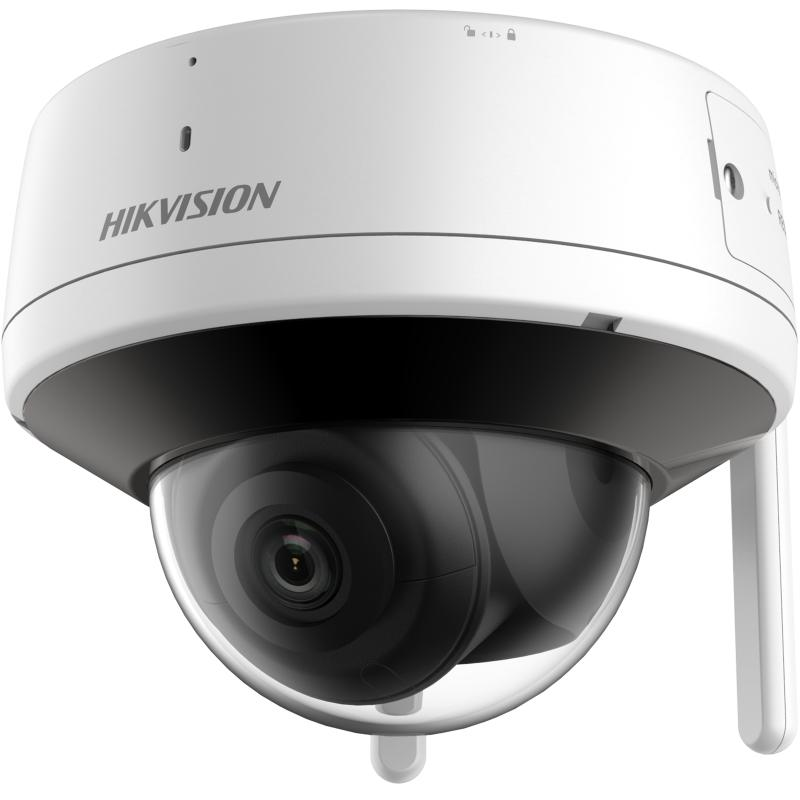

2 MP Outdoor AcuSense Fixed Dome Network Camera

  • High quality imaging with 2 MP resolution
  • Realizing Wi-Fi connection and easy installation
  • Provides real-time security via built-in two-way audio
  • Efficient H.265 compression technology
  • EXIR 2.0, advanced infrared technology with long IR distance
  • Wi-Fi connection with Hik-Connect directly is not possible
  • Water and dust resistant (IP66)
  • Support micro SD/SDHC/SDXC card, up to 256 GB
  • False alarm reduction through human and vehicle target classification based on deep learning
View Less
View more

Modelos disponibles:

DS-2CV2126G0-IDW(2.8mm)
DS-2CV2126G0-IDW(4mm)
DS-2CV2126G0-IDW Discontinued

Especificación

  • Cámara
  • Sensor de imagen1/2.8″ Progressive Scan CMOS
  • Iluminación mínima0.005 Lux @ (F1.6, AGC ON)
  • Velocidad de obturación1/3 s to 1/100,000 s
  • P/NP/N
  • Wide dynamic range120 dB
  • Día y NocheICR Cut
  • Ajuste de ánguloPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • Lente
  • Tipo de lente y FOV2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128° 4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 104°
  • AperturaF1.6
  • Montura del lenteM12
  • Iluminador
  • Luz de suplemento inteligenteYes
  • Rango IRUp to 30 m
  • Longitud de onda850 nm
  • Vídeo
  • Max. Resolución1920 × 1080
  • Main stream50Hz: 25 fps (1920 × 1080, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub Stream50Hz: 25 fps (640 ×360) 60Hz: 30 fps (640 × 360)
  • Compresión de videoMain Stream: H.265/H.264 Sub-Stream: H.265/H.264
  • Vídeo bitrate32 Kbps to 8 Mbps
  • Tipo H.264BaseLine Profile/Main Profile/High Profile
  • Tipo H.265Main Profile
  • Bit Rate ControlCBR/VBR
  • Audio
  • Filtro de ruido ambientalYes
  • Frecuencia de muestreo de audio8 kHz/16 kHz
  • Compresión de audioG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM
  • Velocidad de bits de audio64Kbps(G.711 ulaw)/64Kbps(G.711 alaw)/16Kbps(G.722.1)/16 Kbps(G.726)/32 to 160 Kbps(MP2L2)
  • Red
  • Vista en vivo simultáneaUp to 6 channels
  • APIISAPI, SDK
  • ProtocolosTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour
  • Usuario/operadorUp to 32 users 3 levels: Administrator, Operator and User
  • SeguridadPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2
  • Almacenamiento en redMicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • ClienteWired network: Hik-Connect, iVMS-4200 Wi-Fi: iVMS-4200 *Wi-Fi connection with Hik-Connect directly is not possible.
  • Navegador webPlug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
  • Activador de alarmaMotion detection, exception
  • Wi-Fi
  • Modo de encriptación64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
  • Protocolo de Wi-Fi802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
  • Rango de frecuencia2.412 GHz - 2.472 GHz
  • Canal de ancho de banda20/40 MHz
  • Modulación802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
  • Alcance inalámbricoUp to 120 m (The performance varies based on actual environment)
  • Ratio de transferencia300 Mbps
  • Imagen
  • Interruptor día/nocheDay, Night, Auto, Schedule
  • Mejora de la imagenBLC, HLC, 3D DNR
  • Configuración de imagenMirror,saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • SNR≥ 52 dB
  • Interfaz
  • Almacenamiento a bordoBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
  • Restablecimiento de hardwareYes
  • Interfaz de comunicación1 RJ45 10M/100M self-adaptive Ethernet port
  • Evento
  • Evento BásicoMotion detection, audible alarm output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Deep Learning Function
  • Protección PremierLine crossing detection, intrusion detection, region entrance detection, region exiting detection
  • General
  • Método de enlaceUpload to memory card/NAS, notify surveillance center, trigger record, trigger capture , audible warning
  • Versión del firmwareV5.5.136
  • Idioma del cliente webEnglish
  • Función generalAnti-flicker, heartbeat, password reset via e-mail, pixel counter
  • Reinicio de softwareReset via web browser and client software
  • Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Fuente de alimentación12 VDC ± 25%
  • Power Consumption and Current12 VDC, 0.6 A, max. 7 W
  • Interfaz de energíaØ5.5 mm coaxial power plug
  • Dimensión de la cámaraØ126.0 × 96.1 mm (Ø5.0″ × 3.8″)
  • Dimensión del paquete170 × 170 × 150 mm (7.0" × 7.0" × 5.9")
  • Peso de la cámaraApprox. 590 g (1.3 lb.)
  • Con peso del paqueteApprox. 989 g (2.2 lb.)
  • Certificaciones
  • EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • RFFCC ID (FCC Part 15.247(BT or 2.4G)); IC ID (RSS-247(BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)); WPC (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014); KC (KN 32:2015; KN 35: 2015; KN 301489-1; KN 301489-17); ICASA (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014; EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • SeguridadUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
  • AmbienteCE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach Regulation (EC) No 1907/2006
  • ProtecciónIP66 (IEC 60529-2013)

Especificación

Especificación
Cámara
  • Sensor de imagen1/2.8″ Progressive Scan CMOS
  • Iluminación mínima0.005 Lux @ (F1.6, AGC ON)
  • Velocidad de obturación1/3 s to 1/100,000 s
  • P/NP/N
  • Wide dynamic range120 dB
  • Día y NocheICR Cut
  • Ajuste de ánguloPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lente
  • Tipo de lente y FOV2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128° 4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 104°
  • AperturaF1.6
  • Montura del lenteM12
Iluminador
  • Luz de suplemento inteligenteYes
  • Rango IRUp to 30 m
  • Longitud de onda850 nm
Vídeo
  • Max. Resolución1920 × 1080
  • Main stream50Hz: 25 fps (1920 × 1080, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub Stream50Hz: 25 fps (640 ×360) 60Hz: 30 fps (640 × 360)
  • Compresión de videoMain Stream: H.265/H.264 Sub-Stream: H.265/H.264
  • Vídeo bitrate32 Kbps to 8 Mbps
  • Tipo H.264BaseLine Profile/Main Profile/High Profile
  • Tipo H.265Main Profile
  • Bit Rate ControlCBR/VBR
Audio
  • Filtro de ruido ambientalYes
  • Frecuencia de muestreo de audio8 kHz/16 kHz
  • Compresión de audioG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM
  • Velocidad de bits de audio64Kbps(G.711 ulaw)/64Kbps(G.711 alaw)/16Kbps(G.722.1)/16 Kbps(G.726)/32 to 160 Kbps(MP2L2)
Red
  • Vista en vivo simultáneaUp to 6 channels
  • APIISAPI, SDK
  • ProtocolosTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour
  • Usuario/operadorUp to 32 users 3 levels: Administrator, Operator and User
  • SeguridadPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2
  • Almacenamiento en redMicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • ClienteWired network: Hik-Connect, iVMS-4200 Wi-Fi: iVMS-4200 *Wi-Fi connection with Hik-Connect directly is not possible.
  • Navegador webPlug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
  • Activador de alarmaMotion detection, exception
Wi-Fi
  • Modo de encriptación64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
  • Protocolo de Wi-Fi802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
  • Rango de frecuencia2.412 GHz - 2.472 GHz
  • Canal de ancho de banda20/40 MHz
  • Modulación802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
  • Alcance inalámbricoUp to 120 m (The performance varies based on actual environment)
  • Ratio de transferencia300 Mbps
Imagen
  • Interruptor día/nocheDay, Night, Auto, Schedule
  • Mejora de la imagenBLC, HLC, 3D DNR
  • Configuración de imagenMirror,saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • SNR≥ 52 dB
Interfaz
  • Almacenamiento a bordoBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
  • Restablecimiento de hardwareYes
  • Interfaz de comunicación1 RJ45 10M/100M self-adaptive Ethernet port
Evento
  • Evento BásicoMotion detection, audible alarm output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Deep Learning Function
  • Protección PremierLine crossing detection, intrusion detection, region entrance detection, region exiting detection
General
  • Método de enlaceUpload to memory card/NAS, notify surveillance center, trigger record, trigger capture , audible warning
  • Versión del firmwareV5.5.136
  • Idioma del cliente webEnglish
  • Función generalAnti-flicker, heartbeat, password reset via e-mail, pixel counter
  • Reinicio de softwareReset via web browser and client software
  • Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Fuente de alimentación12 VDC ± 25%
  • Power Consumption and Current12 VDC, 0.6 A, max. 7 W
  • Interfaz de energíaØ5.5 mm coaxial power plug
  • Dimensión de la cámaraØ126.0 × 96.1 mm (Ø5.0″ × 3.8″)
  • Dimensión del paquete170 × 170 × 150 mm (7.0" × 7.0" × 5.9")
  • Peso de la cámaraApprox. 590 g (1.3 lb.)
  • Con peso del paqueteApprox. 989 g (2.2 lb.)
Certificaciones
  • EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • RFFCC ID (FCC Part 15.247(BT or 2.4G)); IC ID (RSS-247(BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)); WPC (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014); KC (KN 32:2015; KN 35: 2015; KN 301489-1; KN 301489-17); ICASA (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014; EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • SeguridadUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
  • AmbienteCE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach Regulation (EC) No 1907/2006
  • ProtecciónIP66 (IEC 60529-2013)

Resources

Firmware

Para una mejor experiencia de usuario, le recomendamos encarecidamente que actualice su dispositivo al más reciente firmware lo antes posible.

Firmware

Para una mejor experiencia de usuario, le recomendamos encarecidamente que actualice su dispositivo al más reciente firmware lo antes posible.
Aplicado a:
DS-2CV2126G0-IDW(2.8mm)
DS-2CV2126G0-IDW(4mm)
