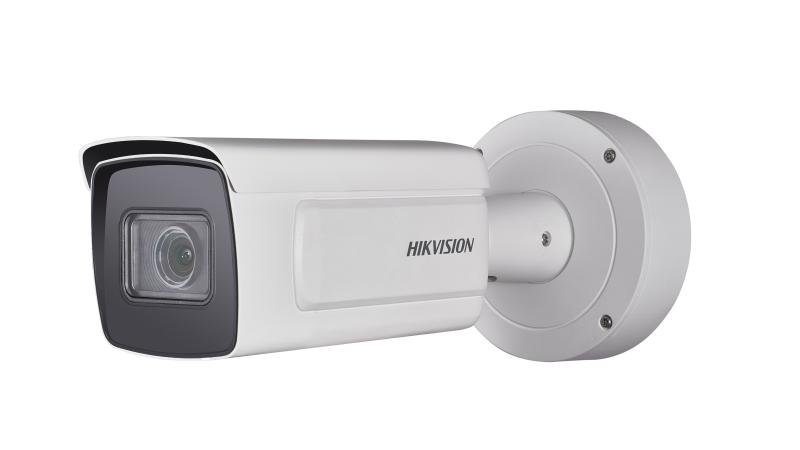

4MP DarkFighter Moto Varifocal Bullet Network Camera

High quality imaging with 2 MP resolution
Starting up and operating even in low temperature as -60℃
Excellent low-light performance via DarkFighter technology
Clear imaging against strong back light due to LightFighter technology
Efficient H.265+ compression technology to save bandwidth and storage
Water and dust resistant and vandal proof (IP67 and IK10)

View Less

Ficha Técnica

Modelos disponibles:

DS-2CD5A46G0-IZ/UH(2.8-12mm)

DS-2CD5A46G0-IZ/UH

EOL

Especificación
Resources
Accesorios

Ficha Técnica

Cámara
Sensor de imagen1/1.8″ Progressive Scan CMOS
Iluminación mínimaColor: 0.0036 Lux @ (F1.6, AGC ON), 0 Lux with IR
Velocidad de obturación1 s to 1/100,000 s
Obturador lentoYes
Wide dynamic range140 dB
Día y NocheIR Cut Filter
Ajuste de ánguloBracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lente
EnfoqueAuto, semi-auto, manual
LenteMotorized lens, 2.8 to 12 mm
FOVHorizontal FOV 103.9° to 44.3°, vertical FOV 56.3° to 24.8°, diagonal FOV 122° to 51°
AperturaF1.6
Montura del lenteIntegrated

Iluminador
Rango IRUp to 50 m
Longitud de onda850 nm

Vídeo
Max. Resolución2560 × 1440
Main stream50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Video Stream5 defined streams and up to 5 custom stream
Sub-stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fifth Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Stream personalizado50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Compresión de videoMain stream: H.265+/H.265/H.264+/H.264 Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
Vídeo bitrate32 Kbps to 16 Mbps
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Main Profile
H.264 +Main stream support
H.265 +Main stream support
Codificación de video escalable (SVC)H.264 and H.265 encoding
Región de interés (ROI)Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions for each stream

Red
Vista en vivo simultáneaUp to 20 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Smooth StreamingYes
Usuario/operadorUp to 32 users. 3 user levels: administrator, operator and user
SeguridadPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2
Almacenamiento en redmicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClienteiVMS-4200, Hik-Connect, Hik-Central
Navegador webPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome57.0+，Firefox52.0+

Imagen
Interruptor día/nocheDay/Night/Auto/Schedule/Triggered by Alarm In
Recorte objetivoYes
Superposición de imagenLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Mejora de la imagenBLC, HLC, 3D DNR, Defog, EIS, distortion correction
Configuración de imagenRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interfaz
Salida de Vídeo1Vp-p composite output (75 Ω/CVBS), only for adjustment
Almacenamiento a bordoBuilt-in microSD/SDHC/SDXC slot, up to 256 GB
Interfaz de comunicación1 RJ45 10M/100M/1000M Ethernet port
CalentadorYes

Evento
Evento BásicoMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Evento inteligenteLine crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Face detection: detects faces and upload images Scene change detection, defocus detection
ContandoCounting

General
Método de enlaceTrigger recording：memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
Versión del firmware5.5.92
Idioma del cliente web32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Función generalAnti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter, HTTP listening
Plataforma Abierta Yes. The camera supports installation and running up to 4 extra applications.
Condiciones de almacenaje-30 °C to 65 °C (-22 °F to 149 °F) Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento-60 °C to 60 °C (-76 °F to 140 °F), humidity 95% or less (non-condensing)
Fuente de alimentación12 VDC ± 10%, three-core terminal block, reverse polarity protection
Consumo de energía y corriente12 VDC, 3.84 A, max. 46 W
Dimensión de la cámara12 VDC, 3.84 A, max. 46 W Camera: Φ140 × 368 mm (Φ5.5″ × 14.5″) With package: 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
Peso de la cámaraCamera: approx. 1.9 kg (5.1 lb.) With package: approx. 2.45 kg (6.6 lb.)

Certificaciones
EMCCE: CE-EMC(EN 50130-4:2011+A1:2014,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013), IC: IC-VoC(ICES-003 Issue 7:2020), FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B), RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3; AS/NZS CISPR 32:2015
SeguridadUL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014, CE: CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013), CE: CE-LVD(EN 62368-1:2014+AC:2015)
AmbienteCE: CE-RoHS( RoHS Directive 2011/65/EU+2015/863) REACH SVHC: Regulation (EC) No 1907/2006
ProtecciónIngress protection: IP67 (IEC 60529-2013)

Cámara

Sensor de imagen

1/1.8″ Progressive Scan CMOS

Iluminación mínima

Color: 0.0036 Lux @ (F1.6, AGC ON), 0 Lux with IR

Velocidad de obturación

1 s to 1/100,000 s

Obturador lento

Yes

Wide dynamic range

140 dB

Día y Noche

IR Cut Filter

Ajuste de ángulo

Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lente

Enfoque

Auto, semi-auto, manual

Lente

Motorized lens, 2.8 to 12 mm

FOV

Horizontal FOV 103.9° to 44.3°, vertical FOV 56.3° to 24.8°, diagonal FOV 122° to 51°

Apertura

F1.6

Montura del lente

Integrated

Iluminador

Rango IR

Up to 50 m

Longitud de onda

850 nm

Vídeo

Max. Resolución

2560 × 1440

Main stream

50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Video Stream

5 defined streams and up to 5 custom stream

Sub-stream

50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)

Fourth Stream

50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fifth Stream

50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)

Stream personalizado

50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Compresión de video

Main stream: H.265+/H.265/H.264+/H.264 Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG

Vídeo bitrate

32 Kbps to 16 Mbps

Tipo H.264

Baseline Profile/Main Profile/High Profile

Tipo H.265

Main Profile

H.264 +

Main stream support

H.265 +

Main stream support

Codificación de video escalable (SVC)

H.264 and H.265 encoding

Región de interés (ROI)

Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions for each stream

Red

Vista en vivo simultánea

Up to 20 channels

API

ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

Smooth Streaming

Yes

Usuario/operador

Up to 32 users. 3 user levels: administrator, operator and user

Seguridad

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2

Almacenamiento en red

microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Cliente

iVMS-4200, Hik-Connect, Hik-Central

Navegador web

Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome57.0+，Firefox52.0+

Imagen

Interruptor día/noche

Day/Night/Auto/Schedule/Triggered by Alarm In

Recorte objetivo

Yes

Superposición de imagen

LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Mejora de la imagen

BLC, HLC, 3D DNR, Defog, EIS, distortion correction

Configuración de imagen

Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interfaz

Salida de Vídeo

1Vp-p composite output (75 Ω/CVBS), only for adjustment

Almacenamiento a bordo

Built-in microSD/SDHC/SDXC slot, up to 256 GB

Interfaz de comunicación

1 RJ45 10M/100M/1000M Ethernet port

Calentador

Yes

Evento

Evento Básico

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Evento inteligente

Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Face detection: detects faces and upload images Scene change detection, defocus detection

Contando

Counting

General

Método de enlace

Trigger recording：memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email

Versión del firmware

5.5.92

Idioma del cliente web

32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Función general

Anti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter, HTTP listening

Plataforma Abierta

Yes. The camera supports installation and running up to 4 extra applications.

Condiciones de almacenaje

-30 °C to 65 °C (-22 °F to 149 °F) Humidity 95% or less (non-condensing)

Condiciones de inicio y funcionamiento

-60 °C to 60 °C (-76 °F to 140 °F), humidity 95% or less (non-condensing)

Fuente de alimentación

12 VDC ± 10%, three-core terminal block, reverse polarity protection

Consumo de energía y corriente

12 VDC, 3.84 A, max. 46 W

Dimensión de la cámara

12 VDC, 3.84 A, max. 46 W Camera: Φ140 × 368 mm (Φ5.5″ × 14.5″) With package: 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)

Peso de la cámara

Camera: approx. 1.9 kg (5.1 lb.) With package: approx. 2.45 kg (6.6 lb.)

Certificaciones

EMC

CE: CE-EMC(EN 50130-4:2011+A1:2014,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013), IC: IC-VoC(ICES-003 Issue 7:2020), FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B), RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3; AS/NZS CISPR 32:2015

Seguridad

UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014, CE: CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013), CE: CE-LVD(EN 62368-1:2014+AC:2015)

Ambiente

CE: CE-RoHS( RoHS Directive 2011/65/EU+2015/863) REACH SVHC: Regulation (EC) No 1907/2006

Protección

Ingress protection: IP67 (IEC 60529-2013)

Cámara

Sensor de imagen1/1.8″ Progressive Scan CMOS
Iluminación mínimaColor: 0.0036 Lux @ (F1.6, AGC ON), 0 Lux with IR
Velocidad de obturación1 s to 1/100,000 s
Obturador lentoYes
Wide dynamic range140 dB
Día y NocheIR Cut Filter
Ajuste de ánguloBracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lente

EnfoqueAuto, semi-auto, manual
LenteMotorized lens, 2.8 to 12 mm
FOVHorizontal FOV 103.9° to 44.3°, vertical FOV 56.3° to 24.8°, diagonal FOV 122° to 51°
AperturaF1.6
Montura del lenteIntegrated

Iluminador

Rango IRUp to 50 m
Longitud de onda850 nm

Vídeo

Max. Resolución2560 × 1440
Main stream50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Video Stream5 defined streams and up to 5 custom stream
Sub-stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fifth Stream50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Stream personalizado50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Compresión de videoMain stream: H.265+/H.265/H.264+/H.264 Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
Vídeo bitrate32 Kbps to 16 Mbps
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Main Profile
H.264 +Main stream support
H.265 +Main stream support
Codificación de video escalable (SVC)H.264 and H.265 encoding
Región de interés (ROI)Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions for each stream

Red

Vista en vivo simultáneaUp to 20 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Smooth StreamingYes
Usuario/operadorUp to 32 users. 3 user levels: administrator, operator and user
SeguridadPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2
Almacenamiento en redmicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClienteiVMS-4200, Hik-Connect, Hik-Central
Navegador webPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome57.0+，Firefox52.0+

Imagen

Interruptor día/nocheDay/Night/Auto/Schedule/Triggered by Alarm In
Recorte objetivoYes
Superposición de imagenLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Mejora de la imagenBLC, HLC, 3D DNR, Defog, EIS, distortion correction
Configuración de imagenRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interfaz

Salida de Vídeo1Vp-p composite output (75 Ω/CVBS), only for adjustment
Almacenamiento a bordoBuilt-in microSD/SDHC/SDXC slot, up to 256 GB
Interfaz de comunicación1 RJ45 10M/100M/1000M Ethernet port
CalentadorYes

Evento

Evento BásicoMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Evento inteligenteLine crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Face detection: detects faces and upload images Scene change detection, defocus detection
ContandoCounting

General

Método de enlaceTrigger recording：memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
Versión del firmware5.5.92
Idioma del cliente web32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Función generalAnti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter, HTTP listening
Plataforma Abierta Yes. The camera supports installation and running up to 4 extra applications.
Condiciones de almacenaje-30 °C to 65 °C (-22 °F to 149 °F) Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento-60 °C to 60 °C (-76 °F to 140 °F), humidity 95% or less (non-condensing)
Fuente de alimentación12 VDC ± 10%, three-core terminal block, reverse polarity protection
Consumo de energía y corriente12 VDC, 3.84 A, max. 46 W
Dimensión de la cámara12 VDC, 3.84 A, max. 46 W Camera: Φ140 × 368 mm (Φ5.5″ × 14.5″) With package: 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
Peso de la cámaraCamera: approx. 1.9 kg (5.1 lb.) With package: approx. 2.45 kg (6.6 lb.)

Certificaciones

EMCCE: CE-EMC(EN 50130-4:2011+A1:2014,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013), IC: IC-VoC(ICES-003 Issue 7:2020), FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B), RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3; AS/NZS CISPR 32:2015
SeguridadUL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014, CE: CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013), CE: CE-LVD(EN 62368-1:2014+AC:2015)
AmbienteCE: CE-RoHS( RoHS Directive 2011/65/EU+2015/863) REACH SVHC: Regulation (EC) No 1907/2006
ProtecciónIngress protection: IP67 (IEC 60529-2013)
