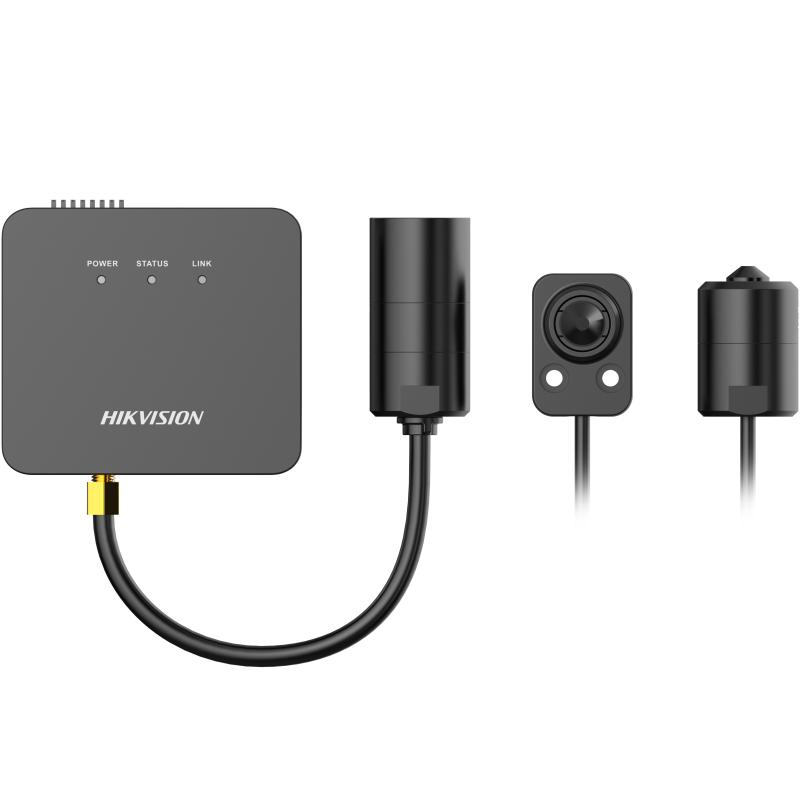

Separated Network Camera

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
Audio and alarm interface available
3D DNR technology delivers clean and sharp images

View Less

Modelos disponibles:

DS-2CD6425G0-C1(B)

DS-2CD6425G0-L20(2.8mm)2m(B)

DS-2CD6425G0-L20(2.8mm)8m(B)

DS-2CD6425G0-L20(3.7mm)2m(B)

DS-2CD6425G0-L20(3.7mm)8m(B)

DS-2CD6425G0-10(3.7mm)2m(B)

DS-2CD6425G0-10(3.7mm)8m(B)

DS-2CD6425G0-20(2.8mm)2m(B)

DS-2CD6425G0-20(2.8mm)8m(B)

DS-2CD6425G0-20(3.7mm)2m(B)

DS-2CD6425G0-20(3.7mm)8m(B)

DS-2CD6425G0-30(2.8mm)2m(B)

DS-2CD6425G0-30(2.8mm)8m(B)

DS-2CD6425G0-30(4mm)2m(B)

DS-2CD6425G0-30(4mm)8m(B)

DS-2CD6425G0-30(6mm)2m(B)

DS-2CD6425G0-30(6mm)8m(B)

DS-2CD6425G0-XX(B) ^Discontinued

Especificación
Resources
Accesorios

Cámara
Sensor de imagen1/2.8" Progressive CMOS
Iluminación mínimaColor: 0.005 Lux @(F1.2,AGC ON), 0.014 Lux @(F2.0,AGC ON)
Velocidad de obturación1/3 s to 1/100,000 s
Obturador lentoYes
P/NP/N
Wide dynamic range120 dB
Día y NocheElectronic

Lente
Tipo de lente y FOVL10: 3.7 mm: H 71.4°, V 39.4°, D 82.6° L20: 2.8 mm: H 88.6°, V 49.0°, D 100.4° 3.7 mm: H 71.4°, V 39.4°, D 82.6° L30: 2.8 mm: H 101.5°, V 54.8°, D 118.9° 4 mm: H 79.6°, V 42.9°, D 94.6° 6 mm: H 50.1°, V 28.8°, D 57.1°
AperturaL10: 3.7 mm: F2.5 L20: 2.8 mm: F2.5 3.7 mm: F2.5 L30: 2.8 mm: F2.0 4 mm: F2.0 6 mm: F2.0
Montura del lenteM12, Pin hole

Vídeo
Max. Resolución1920 × 1080
Main stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream50Hz: 1fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 640 × 360, 352 × 288, 320 × 240) 60Hz: 1fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 640 × 360, 352 × 240, 320 × 240)
Compresión de videoMain stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Vídeo bitrate32 Kbps to 8 Mbps
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Main Profile
H.264 +Main Stream supports
H.265 +Main Stream supports
Bit Rate ControlCBR/VBR
Codificación de video escalable (SVC)Yes
Región de interés (ROI)1 fixed region for main stream

Audio
Filtro de ruido ambientalYes
Frecuencia de muestreo de audio8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Compresión de audioG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM
Velocidad de bits de audio64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Red
Vista en vivo simultáneaUp to 6 channels
APIONVIF(PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS,PPPoe,SNMP
Smooth StreamingYes
Usuario/operadorUp to 32 users. 3 user levels: administrator, operator and user
SeguridadPassword protection, complicated password, HTTPS encryption, IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF
Almacenamiento en redmicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClienteiVMS-4200, Hik-Connect, Hik-Central
Navegador webPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11

Imagen
Interruptor día/nocheDay, Night, Auto, Schedule
Mejora de la imagenBLC, 3D DNR
Configuración de imagenRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interfaz
Alarma1 input, 1 output (max. 12 VDC, 30 mA)
Audio1 input (line in), connector, max. input amplitude: 3.3 vpp; 1 output (line out) connector, max.output amplitude: 3.3 vpp
RS-4851 RS-485 interface, half duplex
Almacenamiento a bordoBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
Restablecimiento de hardwareYes
Interfaz de comunicación1 RJ45 10M/100M self-adaptive Ethernet port

Evento
Evento inteligenteIntrusion detection, line crossing detection, region entrance detection, region exiting detection

Inteligente (Algoritmo tradicional)
Evento BásicoMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

General
Método de enlaceUpload to NAS/memory card, notify surveillance center, trigger record, trigger capture
Idioma del cliente web32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese,Latvijas ,lietuviešu ,Português
Reinicio de softwareYes
Versión del firmwareV5.5.98
Función generalAnti-flicker, heartbeat, mirror, privacy masks, password reset via e-mail
Condiciones de inicio y funcionamiento-10 °C to 40 °C (14 °F to 104 °F)
Fuente de alimentación12 VDC ± 20% PoE: 802.3af, Type 1 Class 2
Consumo de energía y corriente12 VDC, 0.3 A, max. 3.6 W POE(802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 4 W
Interfaz de energía2-core terminal block
Dimensión de la cámaraMain Body: 77.5 × 69 × 26 mm (3.1" × 2.7" × 1.0") Main Body with Bracket: 82.3 × 72.6 × 33.5 mm (3.3" × 2.9" × 1.3") L10: Ø26 × 32.7 mm (Ø1.0" × 1.3") L20: 37 × 26 × 15.1 mm (1.6" × 1.0" × 0.6") L30: Ø26 × 51.4 mm (Ø1.0" × 2.0")
Peso de la cámara92 g (0.2 lb.)
Con peso del paquete592 g (1.3 lb.)

Certificaciones
EMCFCC ID (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
SeguridadUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Reach Regulation (EC) No 1907/2006

Cámara

Sensor de imagen

1/2.8" Progressive CMOS

Iluminación mínima

Color: 0.005 Lux @(F1.2,AGC ON), 0.014 Lux @(F2.0,AGC ON)

Velocidad de obturación

1/3 s to 1/100,000 s

Obturador lento

Yes

P/N

Wide dynamic range

120 dB

Día y Noche

Electronic

Lente

Tipo de lente y FOV

L10: 3.7 mm: H 71.4°, V 39.4°, D 82.6° L20: 2.8 mm: H 88.6°, V 49.0°, D 100.4° 3.7 mm: H 71.4°, V 39.4°, D 82.6° L30: 2.8 mm: H 101.5°, V 54.8°, D 118.9° 4 mm: H 79.6°, V 42.9°, D 94.6° 6 mm: H 50.1°, V 28.8°, D 57.1°

Apertura

L10: 3.7 mm: F2.5 L20: 2.8 mm: F2.5 3.7 mm: F2.5 L30: 2.8 mm: F2.0 4 mm: F2.0 6 mm: F2.0

Montura del lente

M12, Pin hole

Vídeo

Max. Resolución

1920 × 1080

Main stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50Hz: 1fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 640 × 360, 352 × 288, 320 × 240) 60Hz: 1fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 640 × 360, 352 × 240, 320 × 240)

Compresión de video

Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264

Vídeo bitrate

32 Kbps to 8 Mbps

Tipo H.264

Baseline Profile/Main Profile/High Profile

Tipo H.265

Main Profile

H.264 +

Main Stream supports

H.265 +

Main Stream supports

Bit Rate Control

CBR/VBR

Codificación de video escalable (SVC)

Yes

Región de interés (ROI)

1 fixed region for main stream

Audio

Filtro de ruido ambiental

Yes

Frecuencia de muestreo de audio

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Compresión de audio

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM

Velocidad de bits de audio

64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Red

Vista en vivo simultánea

Up to 6 channels

API

ONVIF(PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS,PPPoe,SNMP

Smooth Streaming

Yes

Usuario/operador

Up to 32 users. 3 user levels: administrator, operator and user

Seguridad

Password protection, complicated password, HTTPS encryption, IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF

Almacenamiento en red

microSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Cliente

iVMS-4200, Hik-Connect, Hik-Central

Navegador web

Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11

Imagen

Interruptor día/noche

Day, Night, Auto, Schedule

Mejora de la imagen

BLC, 3D DNR

Configuración de imagen

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interfaz

Alarma

1 input, 1 output (max. 12 VDC, 30 mA)

Audio

1 input (line in), connector, max. input amplitude: 3.3 vpp; 1 output (line out) connector, max.output amplitude: 3.3 vpp

RS-485

1 RS-485 interface, half duplex

Almacenamiento a bordo

Built-in micro SD/SDHC/SDXC slot, up to 256 GB

Restablecimiento de hardware

Yes

Interfaz de comunicación

1 RJ45 10M/100M self-adaptive Ethernet port

Evento

Evento inteligente

Intrusion detection, line crossing detection, region entrance detection, region exiting detection

Inteligente (Algoritmo tradicional)

Evento Básico

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

General

Método de enlace

Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture

Idioma del cliente web

32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese,Latvijas ,lietuviešu ,Português

Reinicio de software

Yes

Versión del firmware

V5.5.98

Función general

Anti-flicker, heartbeat, mirror, privacy masks, password reset via e-mail

Condiciones de inicio y funcionamiento

-10 °C to 40 °C (14 °F to 104 °F)

Fuente de alimentación

12 VDC ± 20% PoE: 802.3af, Type 1 Class 2

Consumo de energía y corriente

12 VDC, 0.3 A, max. 3.6 W POE(802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 4 W

Interfaz de energía

2-core terminal block

Dimensión de la cámara

Main Body: 77.5 × 69 × 26 mm (3.1" × 2.7" × 1.0") Main Body with Bracket: 82.3 × 72.6 × 33.5 mm (3.3" × 2.9" × 1.3") L10: Ø26 × 32.7 mm (Ø1.0" × 1.3") L20: 37 × 26 × 15.1 mm (1.6" × 1.0" × 0.6") L30: Ø26 × 51.4 mm (Ø1.0" × 2.0")

Peso de la cámara

92 g (0.2 lb.)

Con peso del paquete

592 g (1.3 lb.)

Certificaciones

EMC

FCC ID (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Seguridad

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)

Ambiente

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Reach Regulation (EC) No 1907/2006
