DS-2CE72DFT-F28

EOL

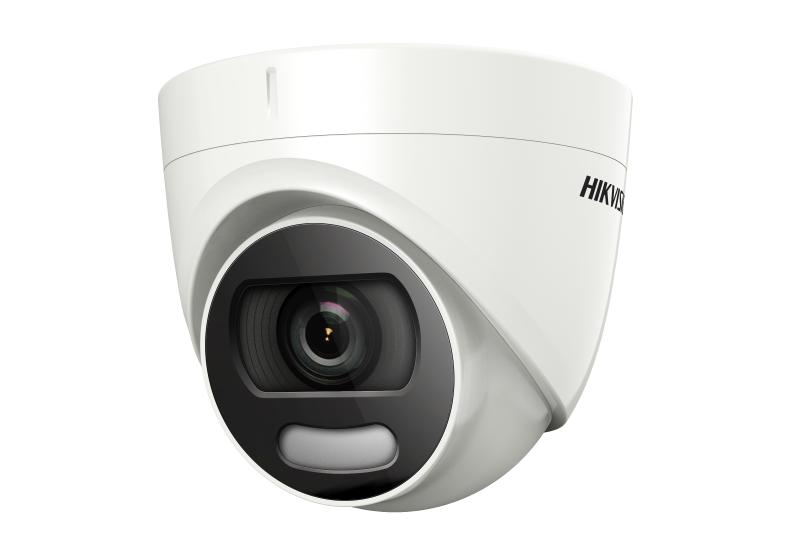

2 MP ColorVu Fixed Turret Camera

  • 2 MP full time color turret camera
  • 24/7 full color imaging
  • 2.8 mm fixed focal lens
  • Warm supplemental light with 20 m range
  • Clear imaging even against strong back lighting due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).
View Less
View more

Available models:

DS-2CE72DFT-F28(2.8mm)

Specification

  • Camera
  • Image Sensor2 MP CMOS
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Day & NightColor
  • Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.8 mm fixed lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 104°, vertical FOV: 54°, diagonal FOV: 126°
  • Lens MountM16
  • Image
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness, Sharpness, 3D DNR, Mirror, Smart light
  • Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
  • Day/Night ModeColor
  • Wide Dynamic Range (WDR)130 dB
  • Image EnhancementBLC,HLC
  • White BalanceATW/MANUAL
  • AGCSupport
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • General
  • MaterialMain Body: Metal Enclosure: Plastic
  • DimensionØ 109.82 mm × 85.56 mm ( Ø 4.32" × 3.37")
  • WeightApprox. 336 g (0.74 lb.)
  • Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Power Supply12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
  • ConsumptionMax. 3 W
  • White Light RangeUp to 20m
  • Approval
  • ProtectionIP67

Specification

Specification
Camera
  • Image Sensor2 MP CMOS
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Day & NightColor
  • Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
  • Signal SystemPAL/NTSC
Lens
  • Lens Type2.8 mm fixed lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 104°, vertical FOV: 54°, diagonal FOV: 126°
  • Lens MountM16
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness, Sharpness, 3D DNR, Mirror, Smart light
  • Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
  • Day/Night ModeColor
  • Wide Dynamic Range (WDR)130 dB
  • Image EnhancementBLC,HLC
  • White BalanceATW/MANUAL
  • AGCSupport
Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
General
  • MaterialMain Body: Metal Enclosure: Plastic
  • DimensionØ 109.82 mm × 85.56 mm ( Ø 4.32" × 3.37")
  • WeightApprox. 336 g (0.74 lb.)
  • Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Power Supply12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
  • ConsumptionMax. 3 W
  • White Light RangeUp to 20m
Approval
  • ProtectionIP67

Resources

Technical documents
