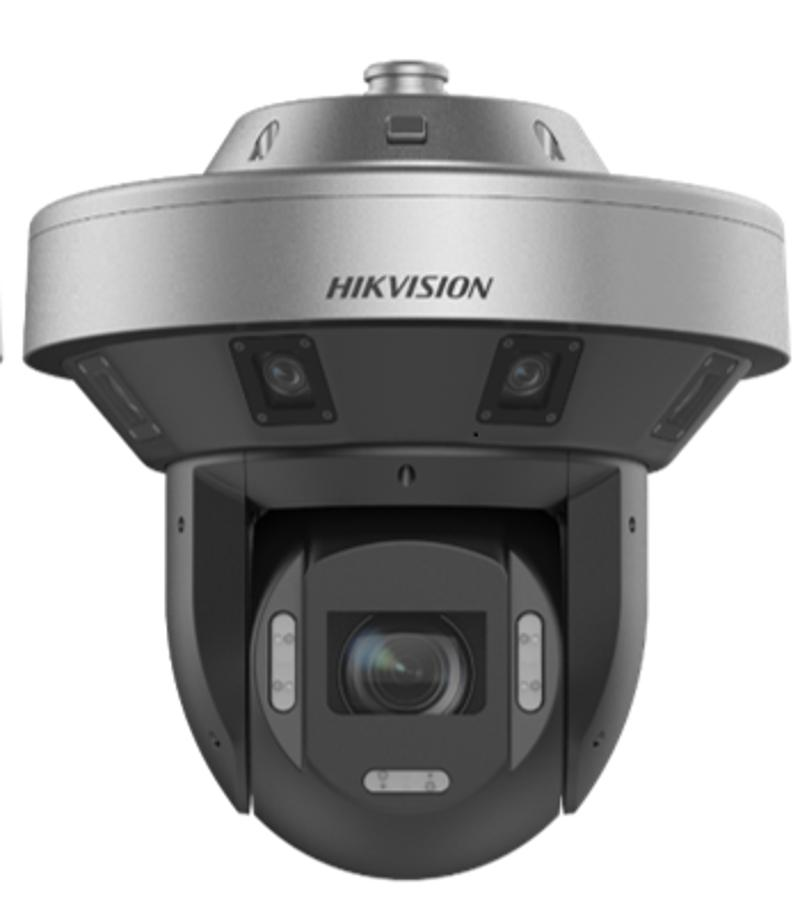

360° Panoramic & PTZ Camera

True 360° coverage with eight F1.0 lenses, no blind spots in the panoramas
Excellent low-light performance with DarkFighter 2.0 technology
40x optical zoom and 16x digital zoom provide close up views over expansive areas
Expansive night view with up to 300 m IR distance

View Less

Available models:

DS-2DP8A440IXG1-LEF/832(F0)(SYSCOM)

DS-2DP8A440IXG1-LEF/832#MX ^NEW

Especificación
Resources
Accesorios

Cámara
Sensor de imagen[Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS
Max. Resolución[Panoramic channel] 2688 × 1520, [PTZ channel] 2688 × 1520
Iluminación mínima[Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON); [PTZ channel]: 0.0005 Lux (F1.2, AGC ON), B/W: 0.0001 Lux (F1.2, AGC ON), 0 Lux with IR
Velocidad de obturación1 s to 1/30000 s
Día y NocheIR cut filter
Zoom[PTZ channel] 40x optical, 16x digital
Obturador lentoYes

Lente
Longitud focal[Panoramic channel] 2 mm, [PTZ channel] 6 to 240 mm
FOV[Panoramic channel] Horizontal FOV 360°, vertical FOV 110 °；[PTZ channel]Horizontal FOV 56.6° to 1.8°, vertical FOV 33.7° to 1.0°, diagonal FOV 63.4° to 2.0°
EnfoqueAuto, semi-auto, manual, rapid focus
Apertura[Panoramic channel] Max. F1.0, [PTZ channel] Max. F1.36
Velocidad del Zoom[PTZ channel] Approx. 5.6 s

Iluminador
Tipo de luz suplementariaIR
Rango de luz suplementariaIR distance: up to 300 m
Luz de suplemento inteligenteYes

PTZ
Rango de movimiento (pan)360°
Rango de movimiento (tilt)-15° to 90° (auto flip)
Velocidad de movimiento horizontal (pan)[Power adaptor]: Pan speed: configurable from 0.1° to 500°/s, preset speed: 500°/s [POE]: Pan speed: configurable from 0.1° to 210°/s, preset speed: 240°/s
Proportional Pan[Panoramic channel]: no; [PTZ channel]: yes
Velocidad de vertical (tilt)[Power adaptor]: Tilt speed: configurable from 0.1° to 350°/s, preset speed 350°/s [POE]: Tilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s
Preajustes300
Congelación preestablecidaYes
Escaneo de patrulla8 patrols, up to 32 presets for each patrol
Patrón de escaneo4 pattern scans, record time over 10 minutes for each scan
Acción del parquePreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
Pantalla de estado de PTZYes
Tarea programadaPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Memoria de apagadoYes

Vídeo
Main stream[PTZ channel] Channel 1: ： 50Hz: 25fps (2688 × 1520，2560×1440 ,1920 × 1080, 1280 × 960, 1280 × 720） 60 Hz: 30fps(2688 × 1520，2560×1440 ,1920 × 1080, 1280 × 960, 1280 × 720） Channel 2： 50Hz: 25 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） 60Hz: 30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） Channel 3： 50Hz: 25fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） 60Hz: 30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） Channel 4： 50Hz: 25fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） 60Hz: 30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） Channel 5： 50Hz: 25fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） 60 Hz: 30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） Channel 6： 50Hz: 25fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） 60 Hz: 30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） Channel 7： 50Hz: 25fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） 60 Hz: 30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） Channel 8： 50Hz: 25fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） 60 Hz: 30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） Channel 9： 50Hz: 25fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） 60 Hz: 30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720）
Sub-stream[PTZ channel] Channel 1: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Channel2： 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Channel3： 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Channel4： 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Channel5： 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Channel6： 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Channel7： 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Channel8： 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Channel9： 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream[PTZ channel] Channel 1: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) Channel 2:no Channel 3:no Channel 4:no Channel 5:no Channel 6:no Channel 7:no Channel 8:no Channel 9:no
Compresión de vídeoMain stream: H.265 / H.264,, Sub-stream: H.265 / H.264 / MJPEG,, Third stream: H.265 / H.264 / MJPEG

Audio
Compresión de audioG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
Frecuencia de muestreo de audioPCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC: 16 kHz, 32 kHz, 48 kHz

Red
ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Vista en vivo simultáneaUp to 20 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Usuario/operadorUp to 32 users. 3 user levels: administrator, operator, and user
SeguridadAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Almacenamiento en redNAS (NFS, SMB/CIFS), ANR
ClienteiVMS-4200, HikCentral Pro, Hik-Connect
Navegador webIE10-11, Chrome 57+, Firefox 52+, Safari 12+

Imagen
Interruptor de parámetros de imagenYes
Configuración de imagenSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Interruptor día/nocheDay,night,schedule
Wide Dynamic Range (WDR)[Panoramic channel] no, [PTZ channel] 120 dB
SNR≥ 55 dB
Desempañar[Panoramic channel]: no; [PTZ channel]: optical defog
Image StabilizationEIS (Built-in gyroscope to improve EIS performance)
Mejora de la imagenBLC, HLC, 3D DNR
Exposición regionalYes

Interfaz
Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port
Almacenamiento a bordoBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarma7 alarm inputs, 2 alarm outputs
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
ReiniciarYes
Fibra óptica1 FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance

Evento
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function
Alarma de congestiónYes

General
alimentación36 VDC ± 20%, max. 135 W,including max. 12 W for IR,PoE(802.3bt) 42.5-57V| 2.12A
DimensiónØ427.6 mm × 425.9 mm (Ø16.8" × 16.7")
14.6kg
MaterialADC12
Operating Condition-40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing)
Limpiador de lenteNo
DemistaYes

Certificaciones
SeguridadCB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtecciónIP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10

Cámara

Sensor de imagen

[Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS

Max. Resolución

[Panoramic channel] 2688 × 1520, [PTZ channel] 2688 × 1520

Iluminación mínima

[Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON); [PTZ channel]: 0.0005 Lux (F1.2, AGC ON), B/W: 0.0001 Lux (F1.2, AGC ON), 0 Lux with IR

Velocidad de obturación

1 s to 1/30000 s

Día y Noche

IR cut filter

Zoom

[PTZ channel] 40x optical, 16x digital

Obturador lento

Yes

Lente

Longitud focal

[Panoramic channel] 2 mm, [PTZ channel] 6 to 240 mm

FOV

[Panoramic channel] Horizontal FOV 360°, vertical FOV 110 °；[PTZ channel]Horizontal FOV 56.6° to 1.8°, vertical FOV 33.7° to 1.0°, diagonal FOV 63.4° to 2.0°

Enfoque

Auto, semi-auto, manual, rapid focus

Apertura

[Panoramic channel] Max. F1.0, [PTZ channel] Max. F1.36

Velocidad del Zoom

[PTZ channel] Approx. 5.6 s

Iluminador

Tipo de luz suplementaria

Rango de luz suplementaria

IR distance: up to 300 m

Luz de suplemento inteligente

Yes

PTZ

Rango de movimiento (pan)

360°

Rango de movimiento (tilt)

-15° to 90° (auto flip)

Velocidad de movimiento horizontal (pan)

[Power adaptor]: Pan speed: configurable from 0.1° to 500°/s, preset speed: 500°/s [POE]: Pan speed: configurable from 0.1° to 210°/s, preset speed: 240°/s

Proportional Pan

[Panoramic channel]: no; [PTZ channel]: yes

Velocidad de vertical (tilt)

[Power adaptor]: Tilt speed: configurable from 0.1° to 350°/s, preset speed 350°/s [POE]: Tilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s

Preajustes

300

Congelación preestablecida

Yes

Escaneo de patrulla

8 patrols, up to 32 presets for each patrol

Patrón de escaneo

4 pattern scans, record time over 10 minutes for each scan

Acción del parque

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan

Pantalla de estado de PTZ

Yes

Tarea programada

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Memoria de apagado

Yes

Vídeo

Main stream

[PTZ channel] Channel 1: ： 50Hz: 25fps (2688 × 1520，2560×1440 ,1920 × 1080, 1280 × 960, 1280 × 720） 60 Hz: 30fps(2688 × 1520，2560×1440 ,1920 × 1080, 1280 × 960, 1280 × 720） Channel 2： 50Hz: 25 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） 60Hz: 30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） Channel 3： 50Hz: 25fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） 60Hz: 30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） Channel 4： 50Hz: 25fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） 60Hz: 30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） Channel 5： 50Hz: 25fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） 60 Hz: 30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） Channel 6： 50Hz: 25fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） 60 Hz: 30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） Channel 7： 50Hz: 25fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） 60 Hz: 30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） Channel 8： 50Hz: 25fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） 60 Hz: 30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） Channel 9： 50Hz: 25fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） 60 Hz: 30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720）

Sub-stream

[PTZ channel] Channel 1: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Channel2： 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Channel3： 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Channel4： 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Channel5： 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Channel6： 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Channel7： 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Channel8： 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Channel9： 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

[PTZ channel] Channel 1: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) Channel 2:no Channel 3:no Channel 4:no Channel 5:no Channel 6:no Channel 7:no Channel 8:no Channel 9:no

Compresión de vídeo

Main stream: H.265 / H.264,, Sub-stream: H.265 / H.264 / MJPEG,, Third stream: H.265 / H.264 / MJPEG

Audio

Compresión de audio

G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM

Frecuencia de muestreo de audio

PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC: 16 kHz, 32 kHz, 48 kHz

Red

Protocolos

IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

Vista en vivo simultánea

Up to 20 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

Usuario/operador

Up to 32 users. 3 user levels: administrator, operator, and user

Seguridad

Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter

Almacenamiento en red

NAS (NFS, SMB/CIFS), ANR

Cliente

iVMS-4200, HikCentral Pro, Hik-Connect

Navegador web

IE10-11, Chrome 57+, Firefox 52+, Safari 12+

Imagen

Interruptor de parámetros de imagen

Yes

Configuración de imagen

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Interruptor día/noche

Day,night,schedule

Wide Dynamic Range (WDR)

[Panoramic channel] no, [PTZ channel] 120 dB

SNR

≥ 55 dB

Desempañar

[Panoramic channel]: no; [PTZ channel]: optical defog

Image Stabilization

EIS (Built-in gyroscope to improve EIS performance)

Mejora de la imagen

BLC, HLC, 3D DNR

Exposición regional

Yes

Interfaz

Ethernet Interface

1 RJ45 10M/100M/1000M self-adaptive Ethernet port

Almacenamiento a bordo

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω

Alarma

7 alarm inputs, 2 alarm outputs

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reiniciar

Yes

Fibra óptica

1 FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance

Evento

Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function

Alarma de congestión

Yes

General

alimentación

36 VDC ± 20%, max. 135 W,including max. 12 W for IR,PoE(802.3bt) 42.5-57V| 2.12A

Dimensión

Ø427.6 mm × 425.9 mm (Ø16.8" × 16.7")

14.6kg

Material

ADC12

Operating Condition

-40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing)

Limpiador de lente

Demista

Yes

Certificaciones

Seguridad

CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)

Ambiente

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protección

IP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10

Cámara

Sensor de imagen[Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS
Max. Resolución[Panoramic channel] 2688 × 1520, [PTZ channel] 2688 × 1520
Iluminación mínima[Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON); [PTZ channel]: 0.0005 Lux (F1.2, AGC ON), B/W: 0.0001 Lux (F1.2, AGC ON), 0 Lux with IR
Velocidad de obturación1 s to 1/30000 s
Día y NocheIR cut filter
Zoom[PTZ channel] 40x optical, 16x digital
Obturador lentoYes

Lente

Longitud focal[Panoramic channel] 2 mm, [PTZ channel] 6 to 240 mm
FOV[Panoramic channel] Horizontal FOV 360°, vertical FOV 110 °；[PTZ channel]Horizontal FOV 56.6° to 1.8°, vertical FOV 33.7° to 1.0°, diagonal FOV 63.4° to 2.0°
EnfoqueAuto, semi-auto, manual, rapid focus
Apertura[Panoramic channel] Max. F1.0, [PTZ channel] Max. F1.36
Velocidad del Zoom[PTZ channel] Approx. 5.6 s

Iluminador

Tipo de luz suplementariaIR
Rango de luz suplementariaIR distance: up to 300 m
Luz de suplemento inteligenteYes

PTZ

Rango de movimiento (pan)360°
Rango de movimiento (tilt)-15° to 90° (auto flip)
Velocidad de movimiento horizontal (pan)[Power adaptor]: Pan speed: configurable from 0.1° to 500°/s, preset speed: 500°/s [POE]: Pan speed: configurable from 0.1° to 210°/s, preset speed: 240°/s
Proportional Pan[Panoramic channel]: no; [PTZ channel]: yes
Velocidad de vertical (tilt)[Power adaptor]: Tilt speed: configurable from 0.1° to 350°/s, preset speed 350°/s [POE]: Tilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s
Preajustes300
Congelación preestablecidaYes
Escaneo de patrulla8 patrols, up to 32 presets for each patrol
Patrón de escaneo4 pattern scans, record time over 10 minutes for each scan
Acción del parquePreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
Pantalla de estado de PTZYes
Tarea programadaPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Memoria de apagadoYes

Vídeo

Main stream[PTZ channel] Channel 1: ： 50Hz: 25fps (2688 × 1520，2560×1440 ,1920 × 1080, 1280 × 960, 1280 × 720） 60 Hz: 30fps(2688 × 1520，2560×1440 ,1920 × 1080, 1280 × 960, 1280 × 720） Channel 2： 50Hz: 25 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） 60Hz: 30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） Channel 3： 50Hz: 25fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） 60Hz: 30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） Channel 4： 50Hz: 25fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） 60Hz: 30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） Channel 5： 50Hz: 25fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） 60 Hz: 30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） Channel 6： 50Hz: 25fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） 60 Hz: 30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） Channel 7： 50Hz: 25fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） 60 Hz: 30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） Channel 8： 50Hz: 25fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） 60 Hz: 30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） Channel 9： 50Hz: 25fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720） 60 Hz: 30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720）
Sub-stream[PTZ channel] Channel 1: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Channel2： 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Channel3： 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Channel4： 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Channel5： 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Channel6： 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Channel7： 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Channel8： 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Channel9： 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream[PTZ channel] Channel 1: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) Channel 2:no Channel 3:no Channel 4:no Channel 5:no Channel 6:no Channel 7:no Channel 8:no Channel 9:no
Compresión de vídeoMain stream: H.265 / H.264,, Sub-stream: H.265 / H.264 / MJPEG,, Third stream: H.265 / H.264 / MJPEG

Audio

Compresión de audioG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
Frecuencia de muestreo de audioPCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC: 16 kHz, 32 kHz, 48 kHz

Red

ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Vista en vivo simultáneaUp to 20 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Usuario/operadorUp to 32 users. 3 user levels: administrator, operator, and user
SeguridadAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Almacenamiento en redNAS (NFS, SMB/CIFS), ANR
ClienteiVMS-4200, HikCentral Pro, Hik-Connect
Navegador webIE10-11, Chrome 57+, Firefox 52+, Safari 12+

Imagen

Interruptor de parámetros de imagenYes
Configuración de imagenSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Interruptor día/nocheDay,night,schedule
Wide Dynamic Range (WDR)[Panoramic channel] no, [PTZ channel] 120 dB
SNR≥ 55 dB
Desempañar[Panoramic channel]: no; [PTZ channel]: optical defog
Image StabilizationEIS (Built-in gyroscope to improve EIS performance)
Mejora de la imagenBLC, HLC, 3D DNR
Exposición regionalYes

Interfaz

Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port
Almacenamiento a bordoBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarma7 alarm inputs, 2 alarm outputs
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
ReiniciarYes
Fibra óptica1 FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance

Evento

LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function

Alarma de congestiónYes

General

alimentación36 VDC ± 20%, max. 135 W,including max. 12 W for IR,PoE(802.3bt) 42.5-57V| 2.12A
DimensiónØ427.6 mm × 425.9 mm (Ø16.8" × 16.7")
14.6kg
MaterialADC12
Operating Condition-40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing)
Limpiador de lenteNo
DemistaYes

Certificaciones

SeguridadCB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtecciónIP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10
