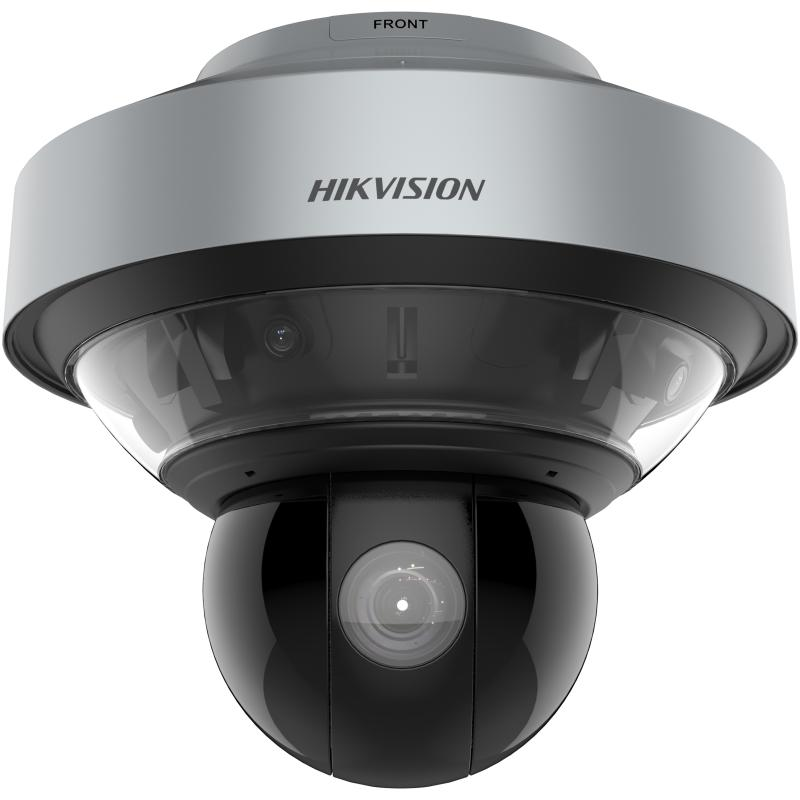

DS-2DP0836ZIX-D2

Especificación
Recursos
Accesorios

Cámara
Sensor de imagen[Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS
Iluminación mínima[Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON); [PTZ channel]: 0.0005 Lux (F1.2, AGC ON), B/W: 0.0001 Lux (F1.2, AGC ON), 0 Lux with IR
Velocidad de obturación1 s to 1/30000 s
Día y NocheIR cut filter
Zoom[PTZ channel] 40x optical, 16x digital
Obturador lentoYes

Lente
EnfoqueAuto, semi-auto, manual, rapid focus
AperturaMax. F1.0
Velocidad del Zoom[PTZ channel] Approx. 5.6 s

Iluminador
Tipo de luz suplementariaIR
Rango de luz suplementariaUp to 250 m
Luz de suplemento inteligenteYes

PTZ
Rango de movimiento (pan)360°
Rango de movimiento (tilt)-15° to 90° (auto flip)
Velocidad de movimiento horizontal (pan)Pan speed: configurable from 0.1° to 210°/s; preset speed: 240°/s
Velocidad de vertical (tilt)Tilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s
Preajustes300
Congelación preestablecidaYes
Escaneo de patrulla8 patrols, up to 32 presets for each patrol
Patrón de escaneo4 pattern scans, record time over 10 minutes for each scan
Acción del parquePreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
Posicionamiento 3DYes
Pantalla de estado de PTZYes
Tarea programadaPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Memoria de apagadoYes

Vídeo
Main streamChannel 1 PTZ： 50Hz: 25fps (2560×1440 ,1920 × 1080, 1280 × 960, 1280 × 720） Channel 2： 50Hz: 25fps (2688×1520 ,1920 × 1080, 1280 × 960, 1280 × 720） Channel 3： 50Hz: 25fps (2688×1520 ,1920 × 1080, 1280 × 960, 1280 × 720） Channel 4： 50Hz: 25fps (2688×1520 ,1920 × 1080, 1280 × 960, 1280 × 720） Channel 5： 50Hz: 25fps (2688×1520 ,1920 × 1080, 1280 × 960, 1280 × 720）
Sub-streamChannel 1 PTZ： 50Hz: 25fps (704×576 ,640×480, 352×288） Channel 2： 50Hz: 25fps (704×576 , 352×288） Channel 3： 50Hz: 25fps (704×576 , 352×288） Channel 4： 50Hz: 25fps (704×576 , 352×288） Channel 5： 50Hz: 25fps (704×576 , 352×288）
Third StreamChannel 1 PTZ: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) Channel 2:no Channel 3:no Channel 4:no Channel 5:no
Compresión de vídeoMain stream: H.265 / H.264, Sub-stream: H.265 / H.264 / MJPEG, Third stream: H.265 / H.264 / MJPEG

Audio
Compresión de audioG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
Frecuencia de muestreo de audioPCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC: 16 kHz, 32 kHz, 48 kHz

Red
ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Vista en vivo simultáneaUp to 20 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Usuario/operadorUp to 32 users. 3 user levels: administrator, operator, and user
SeguridadAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Almacenamiento en redNAS (NFS, SMB/CIFS), ANR
ClienteiVMS-4200, HikCentral Pro, Hik-Connect
Navegador webIE10-11, Chrome 57+, Firefox 52+, Safari 12+

Imagen
Interruptor de parámetros de imagenYes
Configuración de imagenSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Interruptor día/nocheDay, night, auto, scheduled-switch
Wide Dynamic Range (WDR)[PTZ channel] 120 dB
SNR≥ 55 dB
Desempañar[PTZ channel]: optical defog
Image StabilizationEIS
Mejora de la imagenBLC, HLC, 3D DNR
Enfoque regionalYes
Exposición regionalYes

Interfaz
Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port
Almacenamiento a bordoBuilt-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarma7 alarm inputs, 2 alarm outputs
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
ReiniciarYes
Fibra óptica1 FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance

Evento
Evento inteligenteLine crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, intrusion detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Seguimiento inteligenteManual tracking, auto-tracking, panorama tracking. Support patrol tracking among multiple detection scenes

Deep Learning Function
Captura de la caraDetects up to 30 faces simultaneously, Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture
Densidad de personasSupports detecting the level of people density in the configured area
Alarma de congestiónYes

General
alimentación36 VDC, max. 135 W (including max. 12 W for IR);Hi-POE, max. 75 W
DimensiónØ 433.5 mm x 430.4 mm (Ø 17.07" x 16.94")
Approx. 18 kg (39.68 lb.)
MaterialADC12
Operating Condition-40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing)
Limpiador de lenteNo
DemistaYes

Certificaciones
SeguridadUL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/IEC 60950-1: 2005); LOA (IEC/EN 60950-1)
AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtecciónIP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10

Cámara

Sensor de imagen

[Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS

Iluminación mínima

[Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON); [PTZ channel]: 0.0005 Lux (F1.2, AGC ON), B/W: 0.0001 Lux (F1.2, AGC ON), 0 Lux with IR

Velocidad de obturación

1 s to 1/30000 s

Día y Noche

IR cut filter

Zoom

[PTZ channel] 40x optical, 16x digital

Obturador lento

Yes

Lente

Enfoque

Auto, semi-auto, manual, rapid focus

Apertura

Max. F1.0

Velocidad del Zoom

[PTZ channel] Approx. 5.6 s

Iluminador

Tipo de luz suplementaria

Rango de luz suplementaria

Up to 250 m

Luz de suplemento inteligente

Yes

PTZ

Rango de movimiento (pan)

360°

Rango de movimiento (tilt)

-15° to 90° (auto flip)

Velocidad de movimiento horizontal (pan)

Pan speed: configurable from 0.1° to 210°/s; preset speed: 240°/s

Velocidad de vertical (tilt)

Tilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s

Preajustes

300

Congelación preestablecida

Yes

Escaneo de patrulla

8 patrols, up to 32 presets for each patrol

Patrón de escaneo

4 pattern scans, record time over 10 minutes for each scan

Acción del parque

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan

Posicionamiento 3D

Yes

Pantalla de estado de PTZ

Yes

Tarea programada

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Memoria de apagado

Yes

Vídeo

Main stream

Channel 1 PTZ： 50Hz: 25fps (2560×1440 ,1920 × 1080, 1280 × 960, 1280 × 720） Channel 2： 50Hz: 25fps (2688×1520 ,1920 × 1080, 1280 × 960, 1280 × 720） Channel 3： 50Hz: 25fps (2688×1520 ,1920 × 1080, 1280 × 960, 1280 × 720） Channel 4： 50Hz: 25fps (2688×1520 ,1920 × 1080, 1280 × 960, 1280 × 720） Channel 5： 50Hz: 25fps (2688×1520 ,1920 × 1080, 1280 × 960, 1280 × 720）

Sub-stream

Channel 1 PTZ： 50Hz: 25fps (704×576 ,640×480, 352×288） Channel 2： 50Hz: 25fps (704×576 , 352×288） Channel 3： 50Hz: 25fps (704×576 , 352×288） Channel 4： 50Hz: 25fps (704×576 , 352×288） Channel 5： 50Hz: 25fps (704×576 , 352×288）

Third Stream

Channel 1 PTZ: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) Channel 2:no Channel 3:no Channel 4:no Channel 5:no

Compresión de vídeo

Main stream: H.265 / H.264, Sub-stream: H.265 / H.264 / MJPEG, Third stream: H.265 / H.264 / MJPEG

Audio

Compresión de audio

G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM

Frecuencia de muestreo de audio

PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC: 16 kHz, 32 kHz, 48 kHz

Red

Protocolos

IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

Vista en vivo simultánea

Up to 20 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

Usuario/operador

Up to 32 users. 3 user levels: administrator, operator, and user

Seguridad

Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter

Almacenamiento en red

NAS (NFS, SMB/CIFS), ANR

Cliente

iVMS-4200, HikCentral Pro, Hik-Connect

Navegador web

IE10-11, Chrome 57+, Firefox 52+, Safari 12+

Imagen

Interruptor de parámetros de imagen

Yes

Configuración de imagen

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Interruptor día/noche

Day, night, auto, scheduled-switch

Wide Dynamic Range (WDR)

[PTZ channel] 120 dB

SNR

≥ 55 dB

Desempañar

[PTZ channel]: optical defog

Image Stabilization

EIS

Mejora de la imagen

BLC, HLC, 3D DNR

Enfoque regional

Yes

Exposición regional

Yes

Interfaz

Ethernet Interface

1 RJ45 10M/100M/1000M self-adaptive Ethernet port

Almacenamiento a bordo

Built-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω

Alarma

7 alarm inputs, 2 alarm outputs

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reiniciar

Yes

Fibra óptica

1 FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance

Evento

Evento inteligente

Line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, intrusion detection

Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Seguimiento inteligente

Manual tracking, auto-tracking, panorama tracking. Support patrol tracking among multiple detection scenes

Deep Learning Function

Captura de la cara

Detects up to 30 faces simultaneously, Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture

Densidad de personas

Supports detecting the level of people density in the configured area

Alarma de congestión

Yes

General

alimentación

36 VDC, max. 135 W (including max. 12 W for IR);Hi-POE, max. 75 W

Dimensión

Ø 433.5 mm x 430.4 mm (Ø 17.07" x 16.94")

Approx. 18 kg (39.68 lb.)

Material

ADC12

Operating Condition

-40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing)

Limpiador de lente

Demista

Yes

Certificaciones

Seguridad

UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/IEC 60950-1: 2005); LOA (IEC/EN 60950-1)

Ambiente

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protección

IP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10

Cámara

Cámara
Cámara
Cámara
Cámara
Cámara
Cámara

Lente

Lente
Lente
Lente

Iluminador

Iluminador
Iluminador
Iluminador

PTZ

Vídeo

Vídeo
Vídeo
Vídeo
Vídeo

Audio

Audio
Audio

Red

Imagen

Imagen
Imagen
Imagen
Imagen
Imagen
Imagen
Imagen
Imagen
Imagen
Imagen

Interfaz

Interfaz
Interfaz
Interfaz
Interfaz
Interfaz
Interfaz
Interfaz

Evento

Evento
Evento
Evento

Deep Learning Function

Deep Learning Function
Deep Learning Function
Deep Learning Function

General

General
General
General
General
General
General
General

Certificaciones

Certificaciones
Certificaciones
Certificaciones

*Images are for illustrative purposes. Actual product appearance and specifications may vary.

DS-2DP0836ZIX-D2

Name: DS-2DP0836ZIX-D2
Brand: Hikvision
Availability: InStock
Rating: 5.0 (1 reviews)

Excellent low-light performance with DarkFighter technology
40x optical zoom and 16x digital zoom provide close up views over expansive areas
Expansive night view with up to 250 m IR distance
Automatic switch between multiple targets
